Chain oiler for the BMW S 1000 R
Installation report by Florian
BMW S 1000 R – year of manufacture 2014
6 sections
6 photos
This is how Florian solved the installation – unfortunately we cannot guarantee that it works correctly, as we were not able to check the installation ourselves.
Matching product
Oil reservoir 60 ml
Oil reservoir under the pillion seat
Metering valve
Just behind the fuel tank, on the left on the subframe brace.
Nozzle
At the rear sprocket, outer side

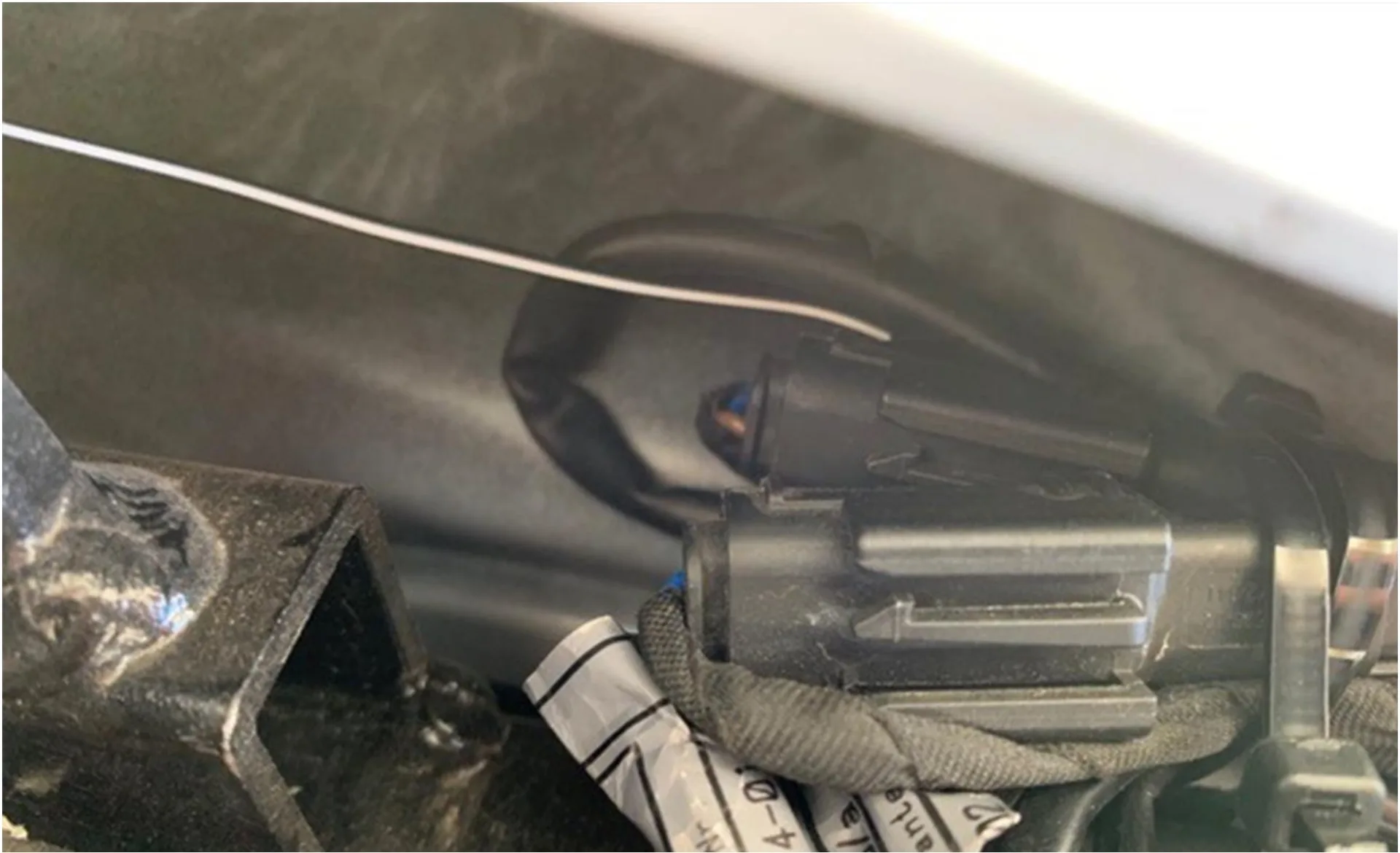

Switched 12 V supply
Tapped at the licence plate light (red/black wire under the pillion seat)
Rain switch
On the left-hand side of the handlebar

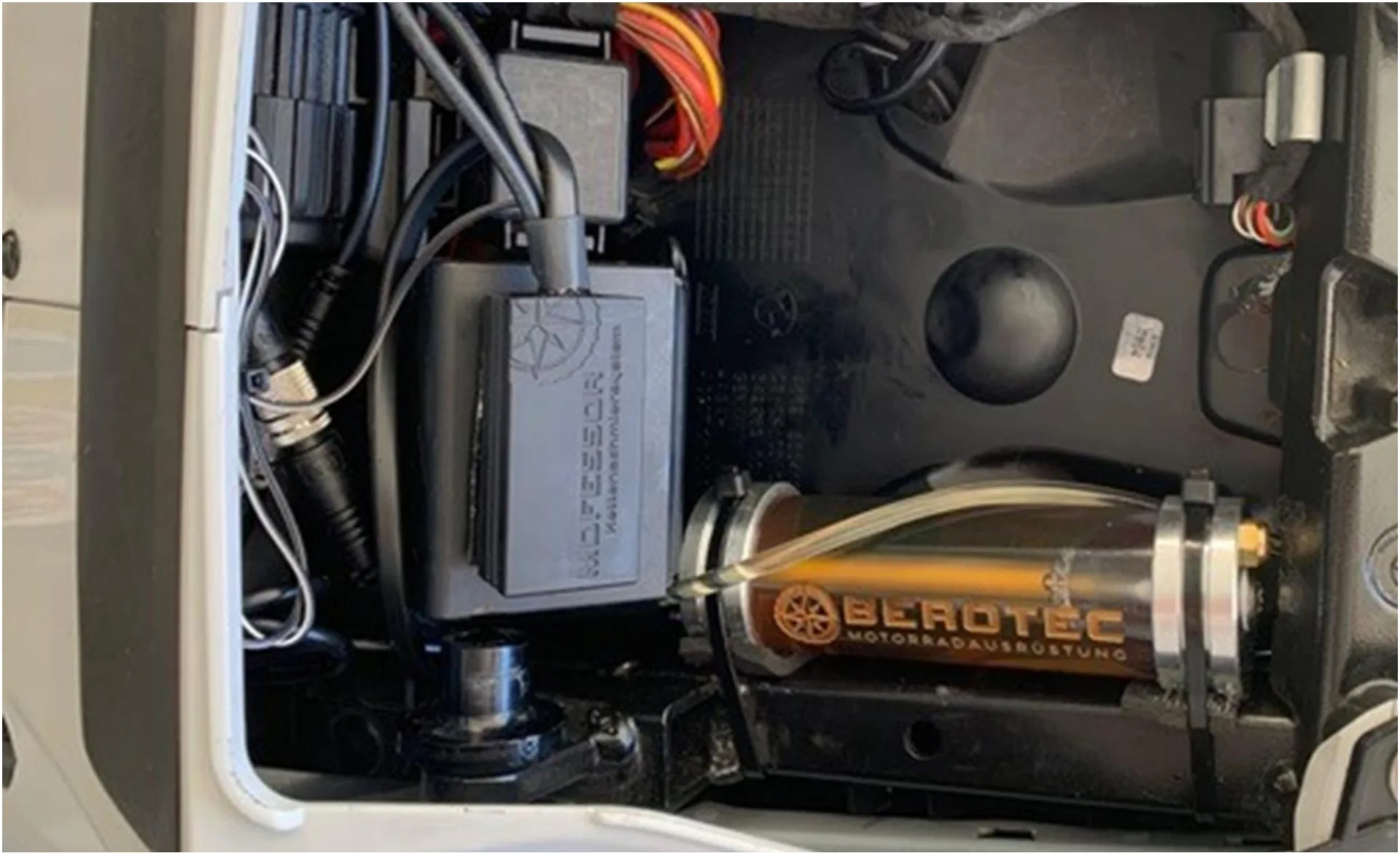

Control unit
Under the pillion seat
