Chain oiler for the Ducati Scrambler 1100
Installation report by Ulf

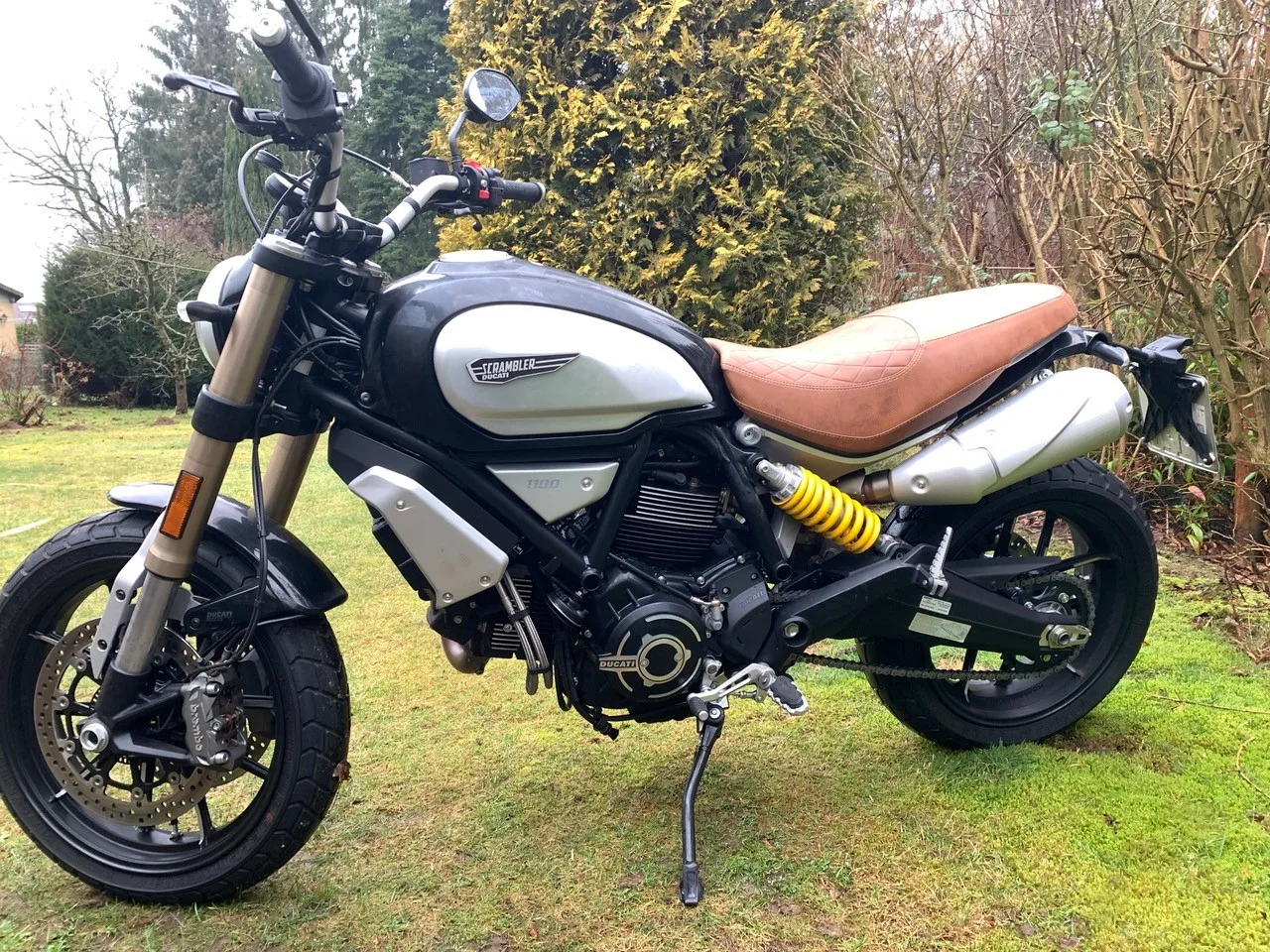

Ducati Scrambler 1100 – year of manufacture 2018
6 sections
6 photos
This is how Ulf solved the installation – unfortunately we cannot guarantee that it works correctly, as we were not able to check the installation ourselves.
Matching product
Oil reservoir 60 ml
Oil reservoir under the seat.

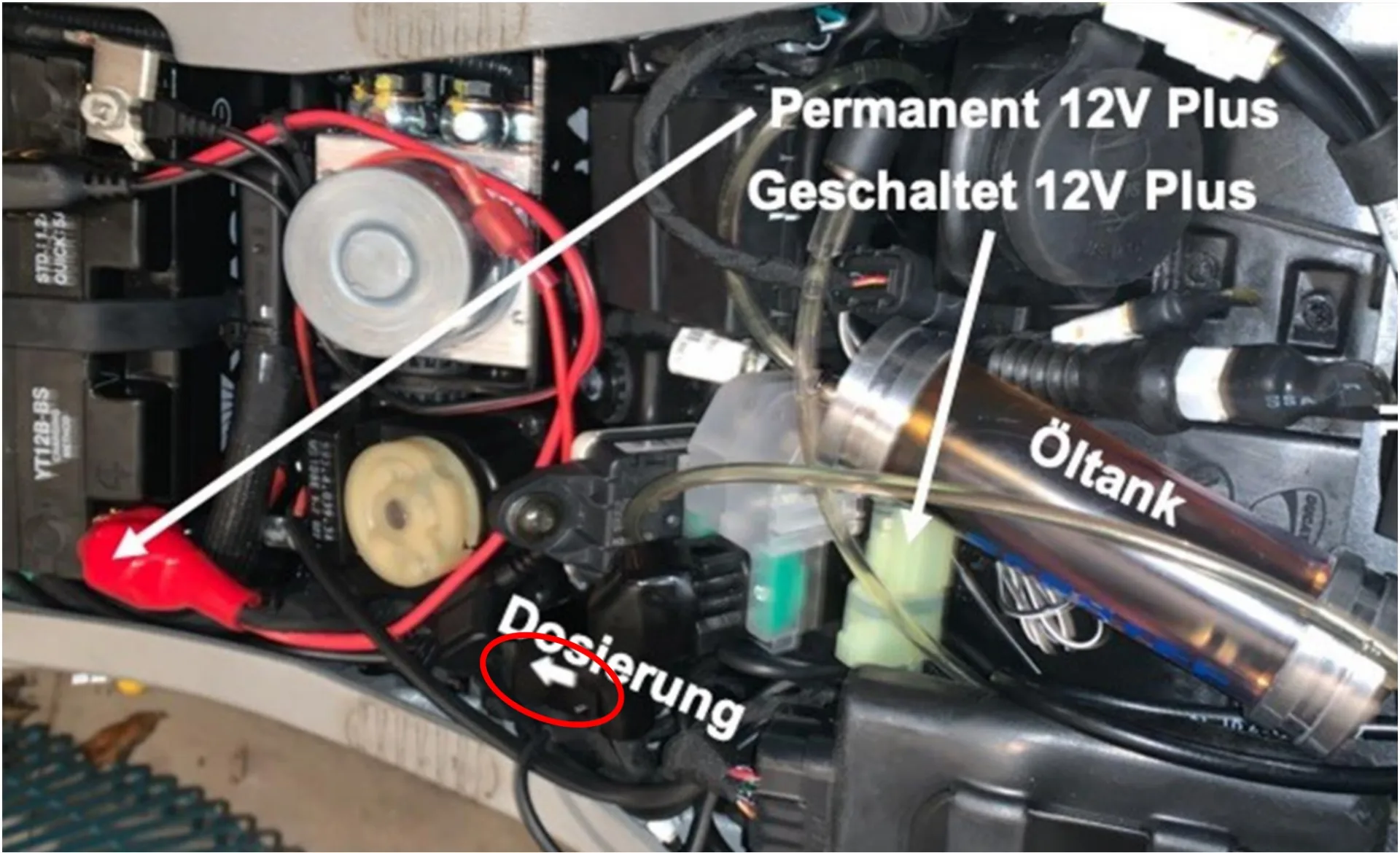

Metering valve
Under the seat, on the inside, on the left-hand side of the frame.
Nozzle
At the rear sprocket, outer side.

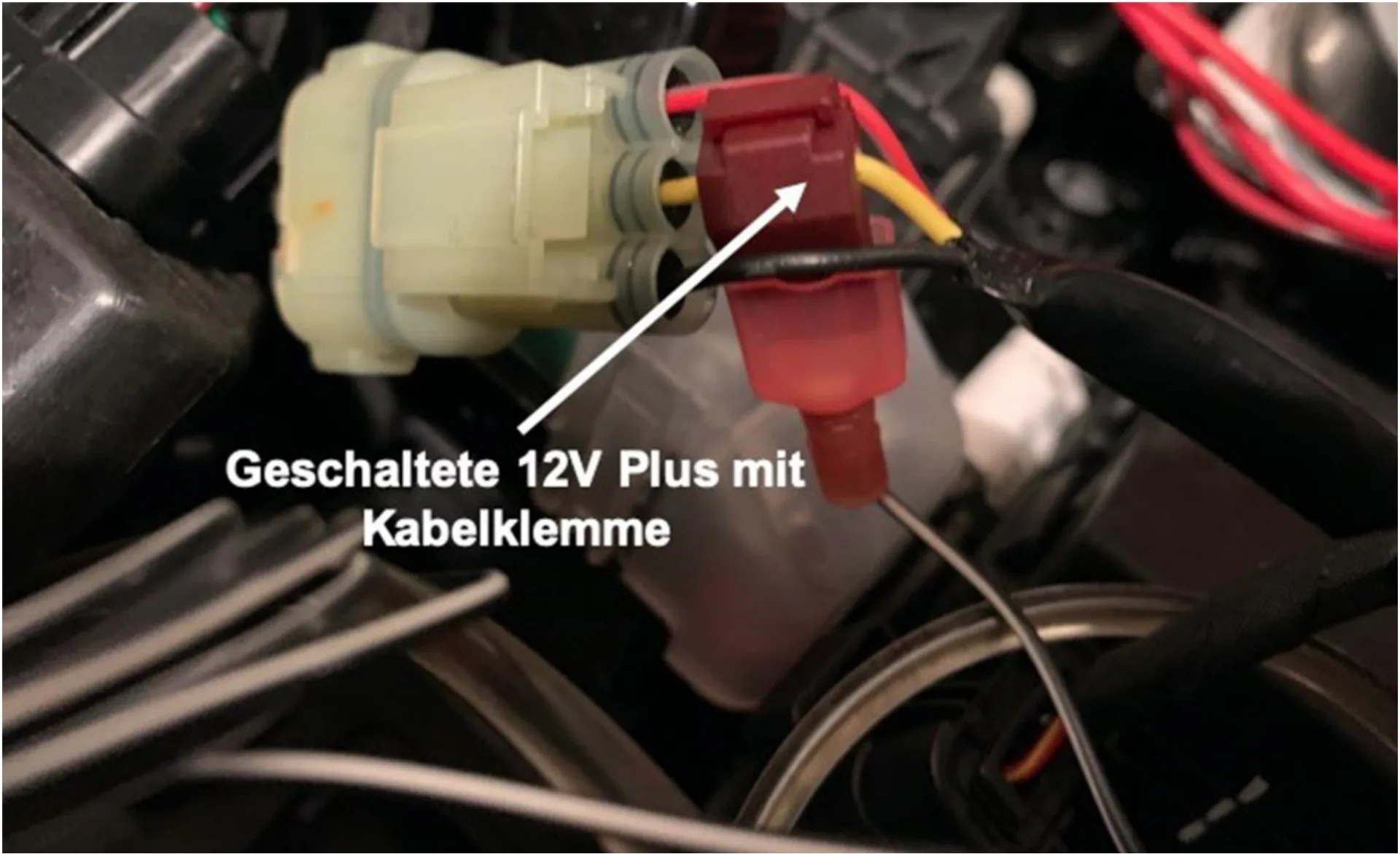

Switched 12 V supply
Under the seat, tapped at the taillight (yellow wire).
Rain switch
On the left-hand side of the handlebar.
Control unit
Under the seat.
