Chain oiler for the Ducati Scrambler 800 FT
Installation report by Schippy
Ducati Scrambler 800 FT – year of manufacture 2020
6 sections
6 photos
Matching product:
MOFESSOR | The intelligent Chain oiler - Standard (60 ml)
oil reservoir 60 ml
Located in the tool compartment at the rear.
metering valve
Under the seat.

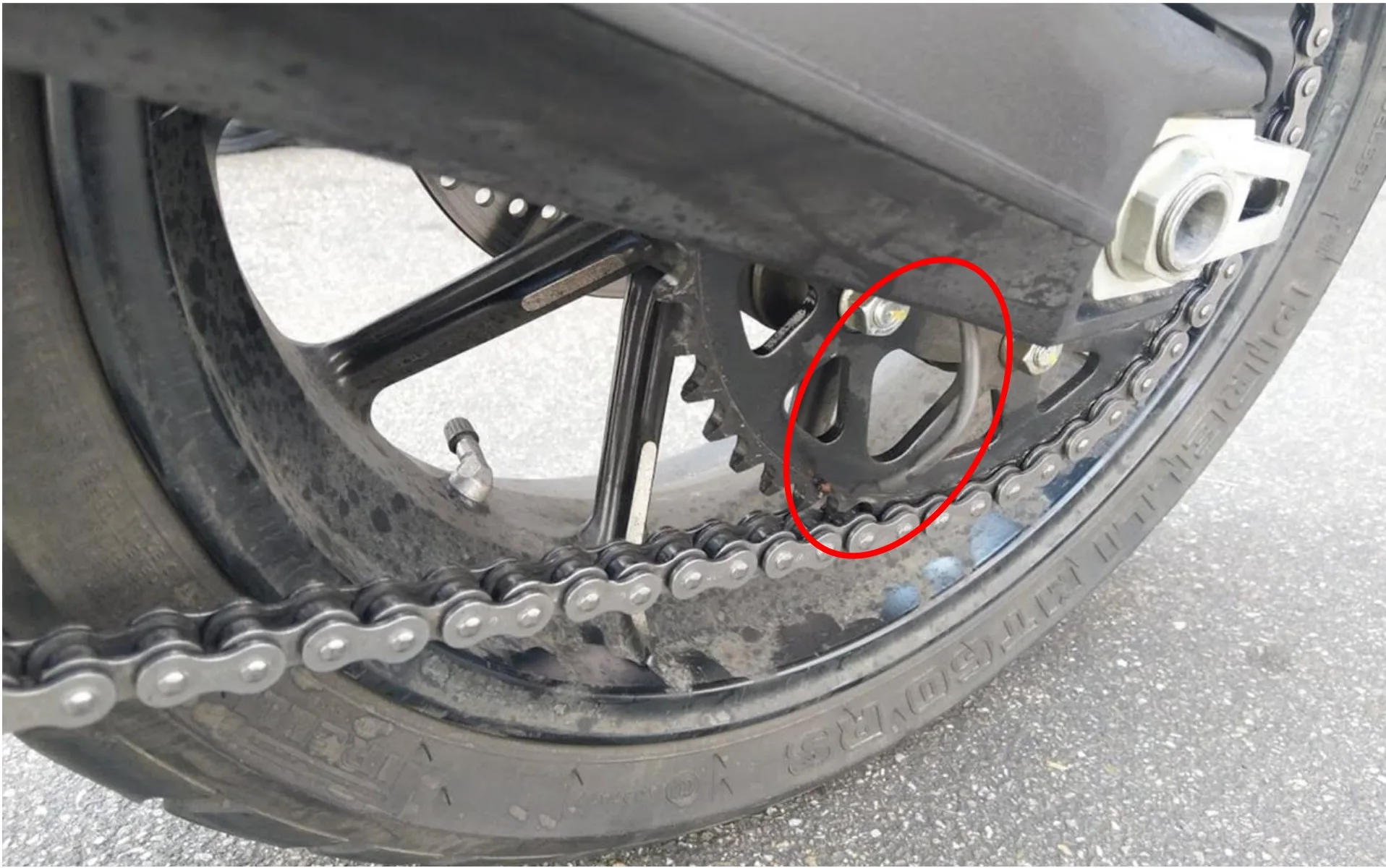

nozzle
At the rear sprocket – the bracket glued to the inside of the swingarm.

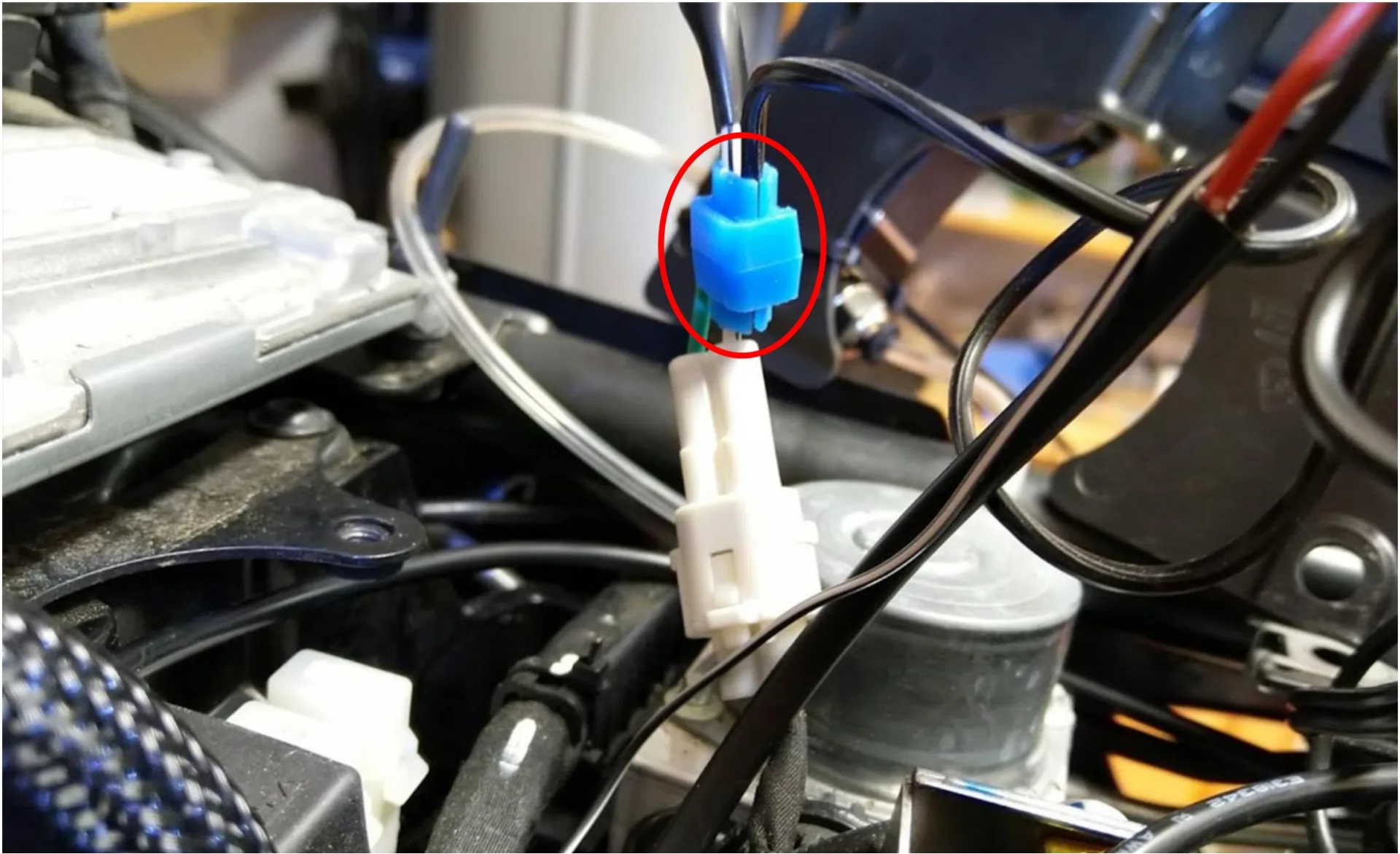

switched 12 V supply
Tapped from the USB socket supply lead (black-white wire).
rain switch
Left-hand side of the handlebar.
control unit
At the rear, next to the tool bag.
