Chain oiler for the Ducati SuperSport 950 S
Installation report by Stefan

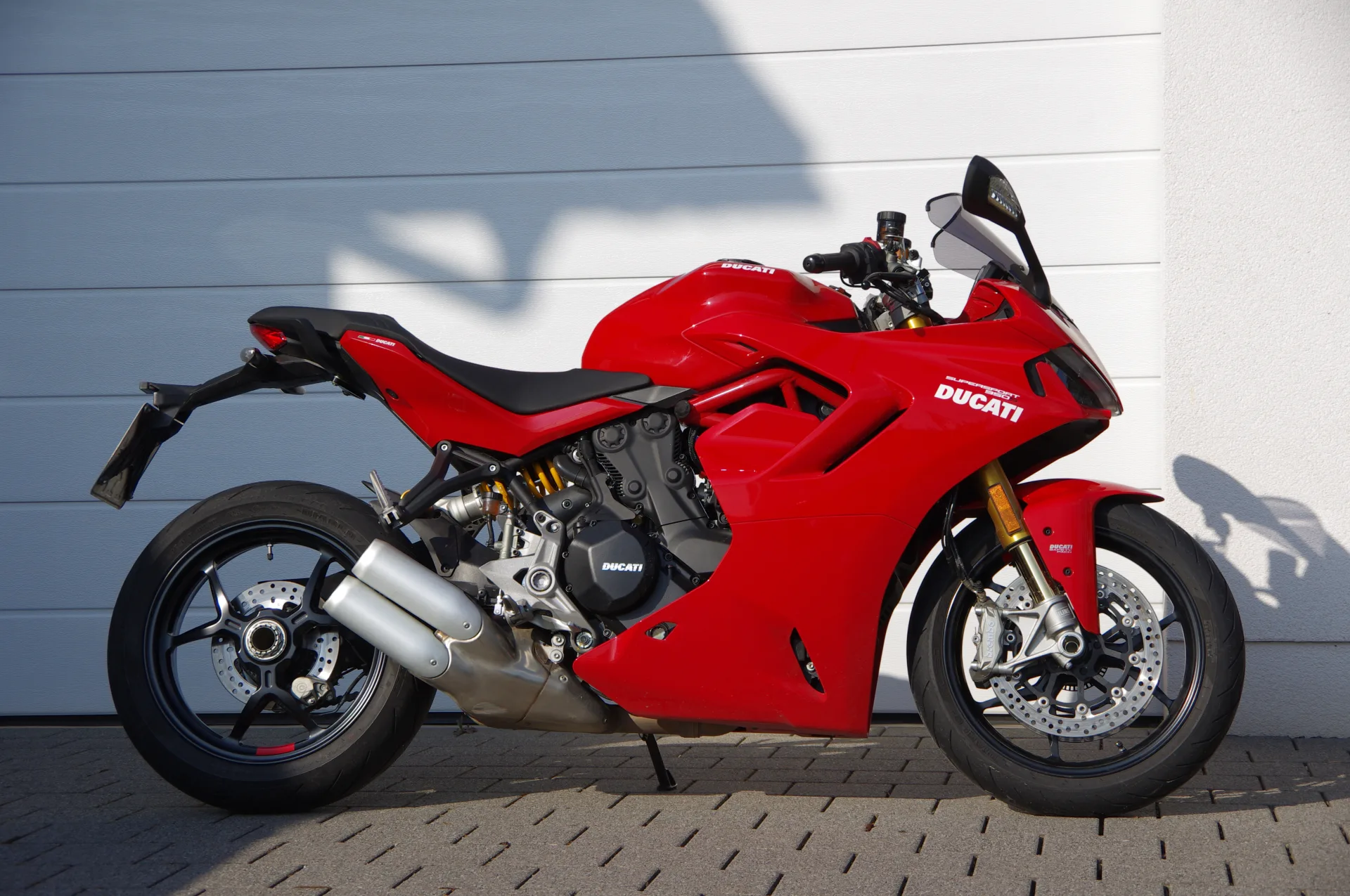

Ducati SuperSport 950 S – year of manufacture 2021
This is how Stefan solved the installation – unfortunately we cannot guarantee that it works correctly, as we were not able to check the installation ourselves.
Oil reservoir 60 ml
Under the right seat panel
Metering valve
Under the seat
Nozzle
Rear sprocket inner side, line routed in the existing duct for the ABS line
Switched 12 V supply
On the machine there is a connection at the front right in the frame triangle, whose blind ends can be fiddled open. I then connected the control wire via Posi-Tap connectors; the negative is not used (the horn strangely did not work). The 12 V connection is made via the adapter already present for the CTEK charger, with an AMP Superseal adapter; I also crimped an AMP connector onto the connecting lead of the control unit. Cable routing forwards on the left along the frame under the fuel tank, secured with Ducati frame rubbers.
Rain switch
On the left-hand side of the handlebar
Control unit
Under the left seat panel
