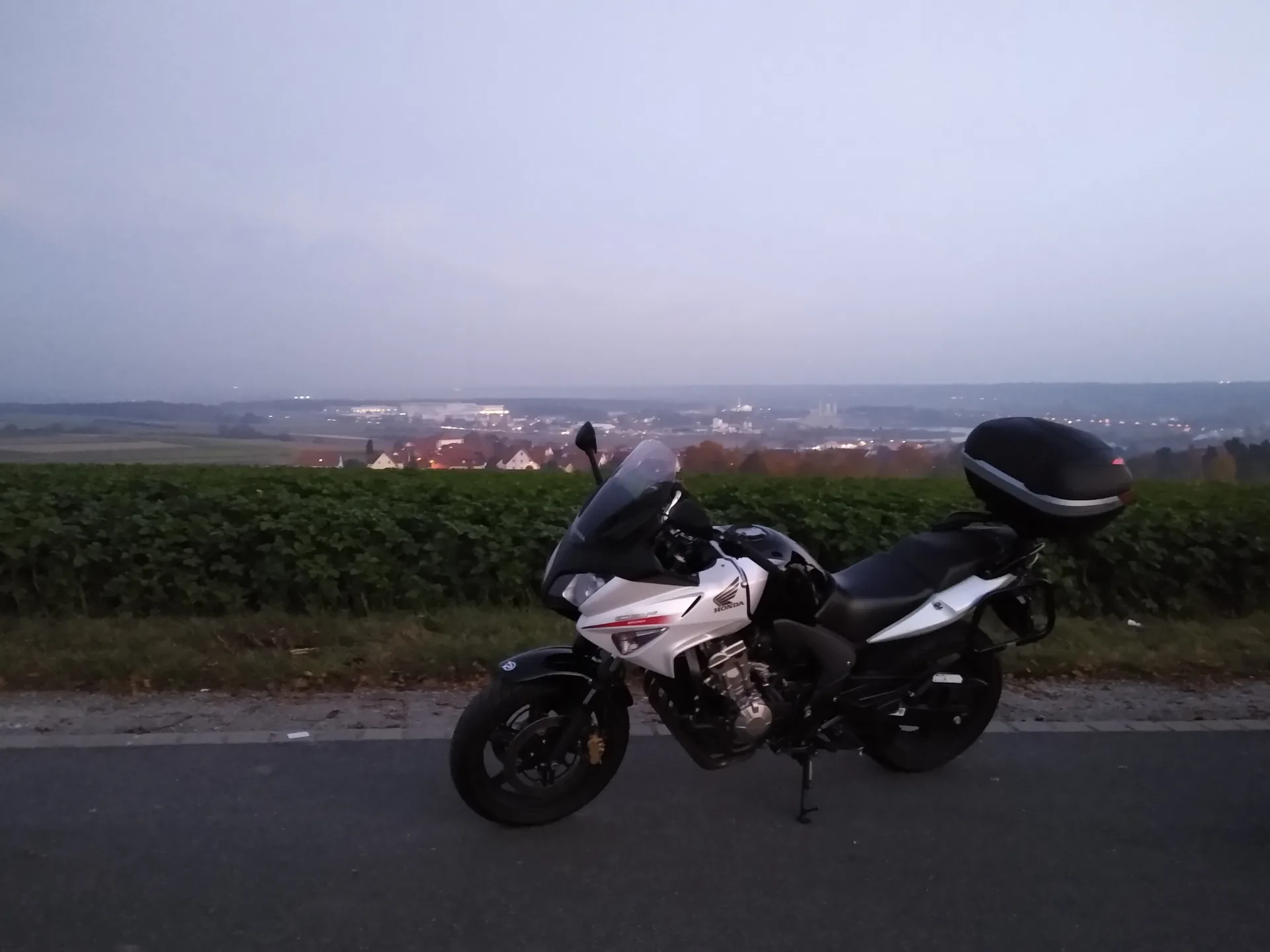

Chain oiler for the Honda CBF600S
Installation report by Ben
Honda CBF600S – year of manufacture 2010
6 sections
6 photos
Matching product:
MOFESSOR | The intelligent Chain oiler - Long distance (120 ml)
oil reservoir 120 ml
Under the rear fairing, mounted on the right-hand side of the frame with its own bracket
metering valve
Under the seat on the right side (with the heat protection sleeve fitted in addition)
nozzle
At the rear sprocket, outer side, hose routed on the inside through the chain slider (with a heat protection sleeve in addition)
switched 12 V supply
Tapped from the relay; the switched positive for the relay tapped from the taillight
rain switch
On the left-hand side of the handlebar
control unit
Under the seat, by the fuses
