Chain oiler for the Honda CBR1100XX

Installation report by Joe

Honda CBR1100XX – year of manufacture 2002

5 sections 5 photos

Matching product: MOFESSOR | The intelligent Chain oiler - Long distance (120 ml)

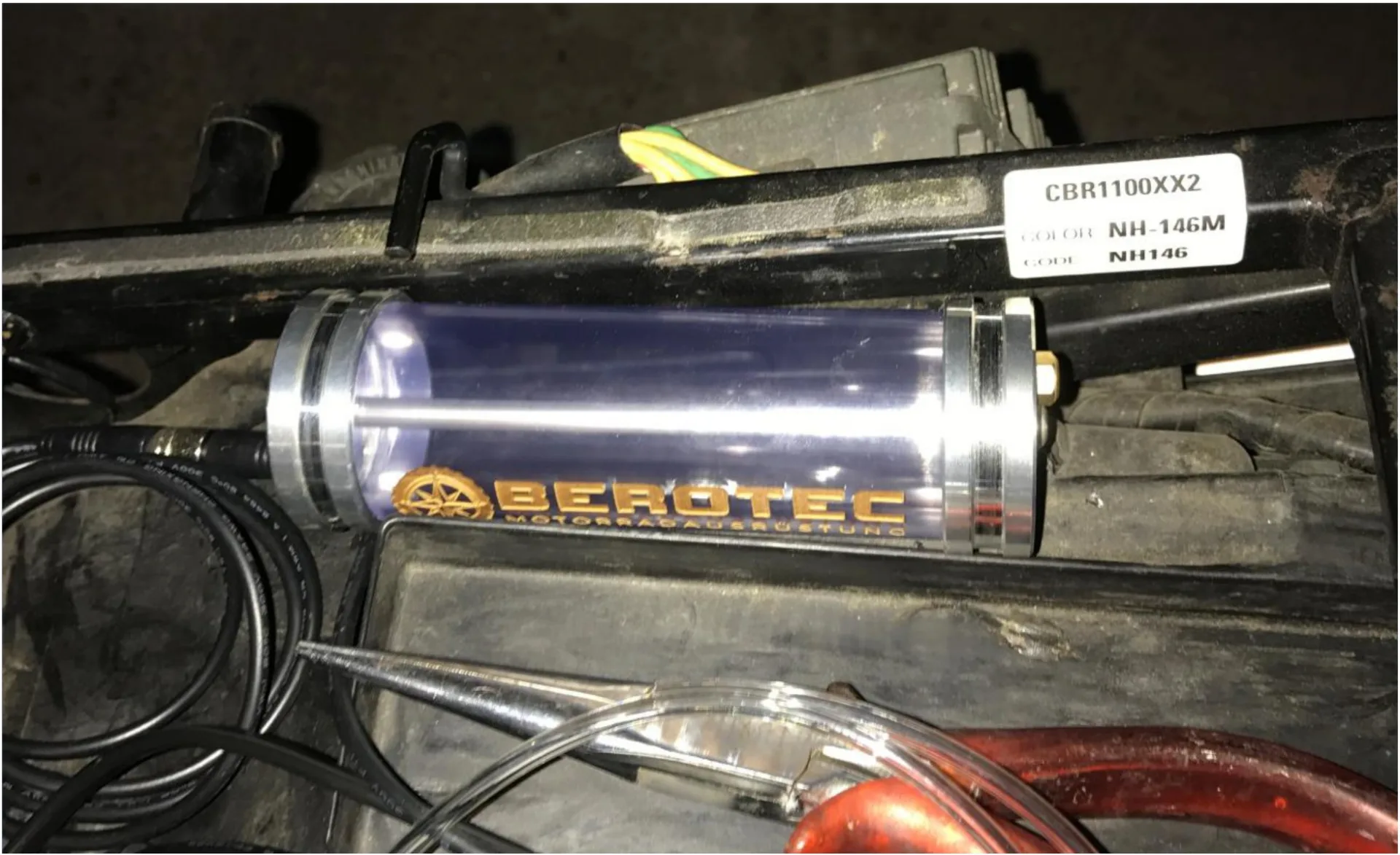

oil reservoir 120 ml

Oil reservoir under the seat – secured with the cable ties

metering valve

Also under the seat

nozzle

Nozzle fitted along the swingarm towards the rear sprocket, secured with cable ties

switched 12 V supply

The switched positive is tapped in the subframe from the taillight (brown-white wire); the rear fairing has to be removed for this

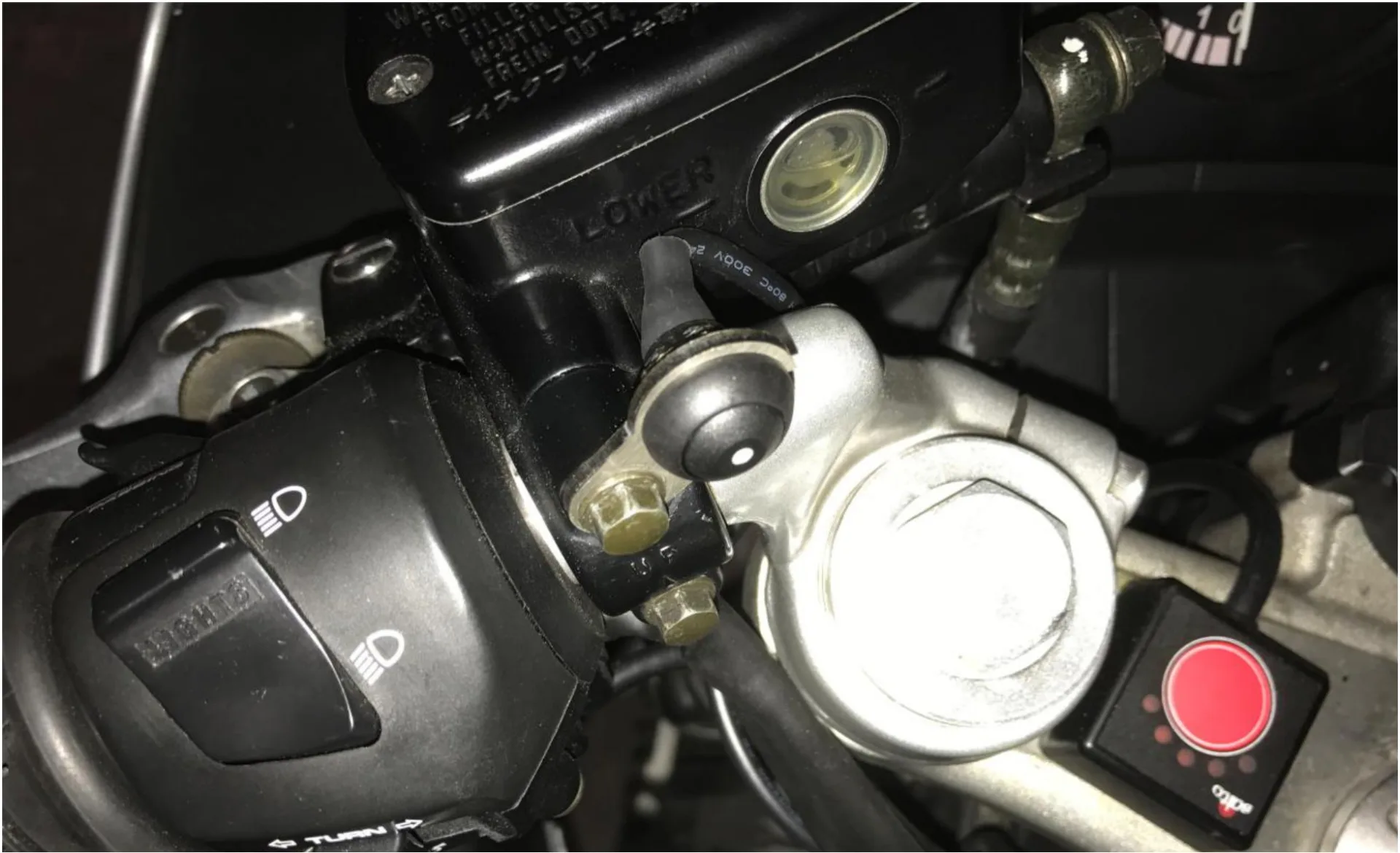

rain switch

On the left-hand side of the handlebar – the cable runs to the left of the fuel tank; the upper left fairing has to be removed for this, and it is secured with cable ties
