Chain oiler for the Honda CBR650F
Installation report by Frank T.
Honda CBR650F – year of manufacture 2017

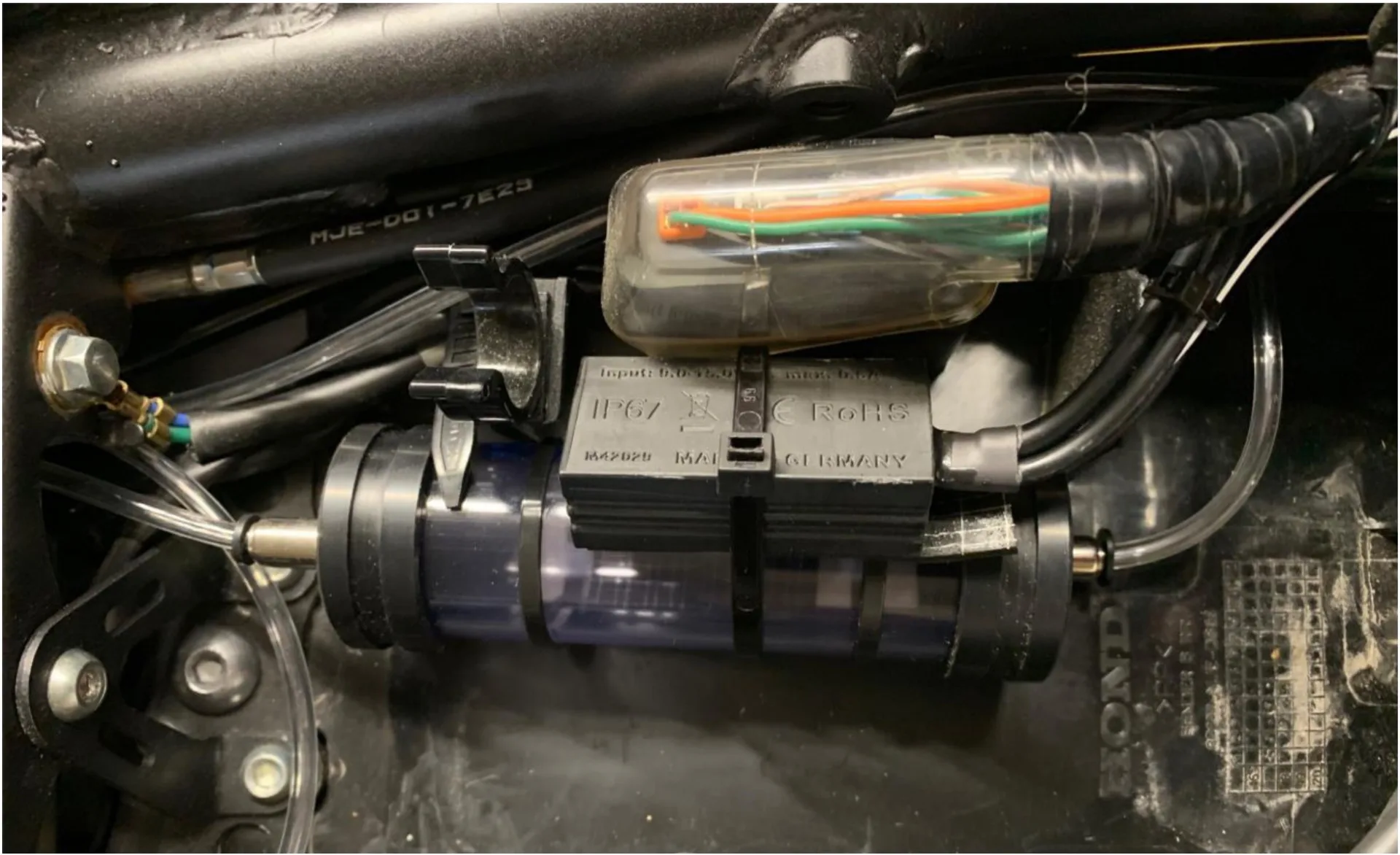

oil reservoir 60 ml
It sits under the pillion seat and is attached with adhesive pads and a cable tie.
metering valve
At the front in the onboard toolkit box, secured with a cable tie (a small second hole drilled for the cable tie). For the oil hoses I drilled a hole on the right and left as a feed-through.
nozzle
The nozzle sits on the outside of the rear sprocket at roughly 7 to 8 o’clock and is attached to the swingarm with the adhesive bracket.
switched 12 V supply
I took the switched positive from the original accessory connector (red/black); it is located under the seat on the right next to the battery, between the frame and the fairing.
rain switch
The rain switch is bolted on at the front left, together with the clutch lever.
control unit
I attached the control unit to the oiler with a cable tie (with adhesive foam in between).
