Chain oiler for the Honda CTX700
Installation report by Frank T.
Honda CTX700 – year of manufacture 2014
This is how Frank T. solved the installation – unfortunately we cannot guarantee that it works correctly, as we were not able to check the installation ourselves.

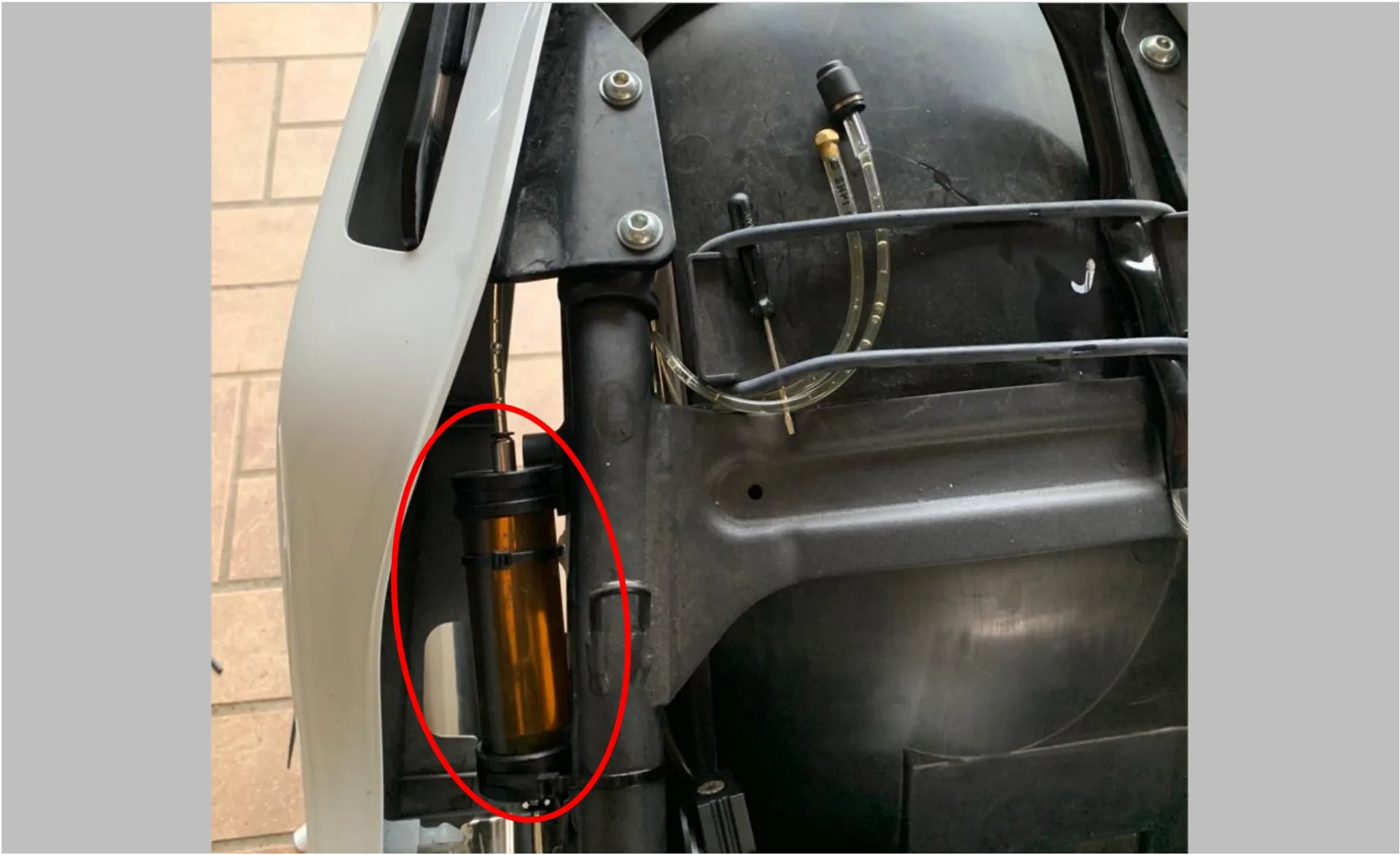

Oil reservoir 60 ml
attached to the frame under the right rear fairing with two cable ties.

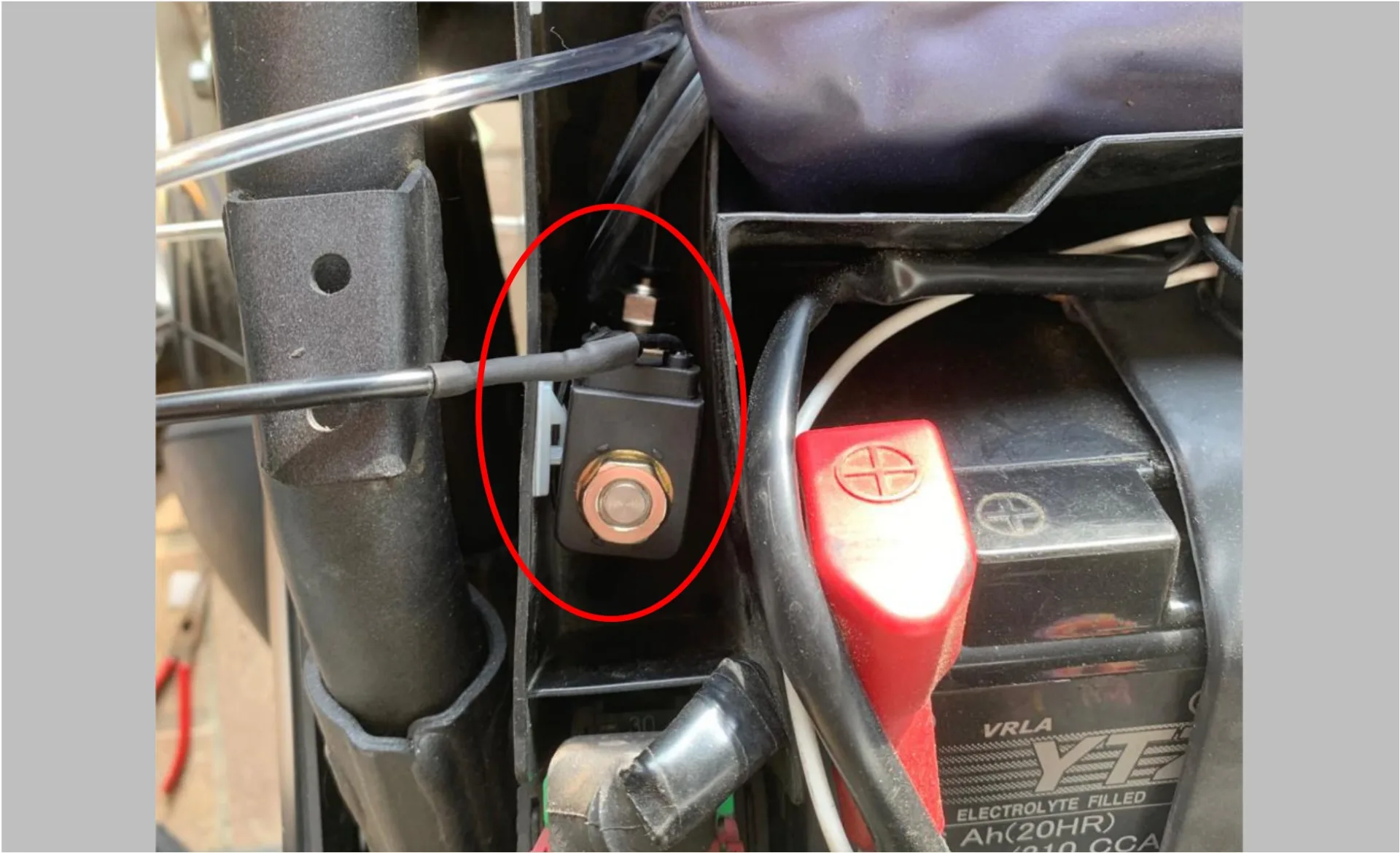

Metering valve
The metering valve sits under the seat on the right next to the battery and is attached with an adhesive pad and a cable tie.
Nozzle
The nozzle is attached to the inside of the swingarm with the adhesive bracket and sits at roughly 6 to 7 o’clock
Switched 12 V supply
The switched positive was tapped with a branch connector at the original supply connector (yellow-red wire) on the right under the fuel tank panel (cable already present from the GPS device).
Rain switch
The rain switch is attached at the front right on the mirror.

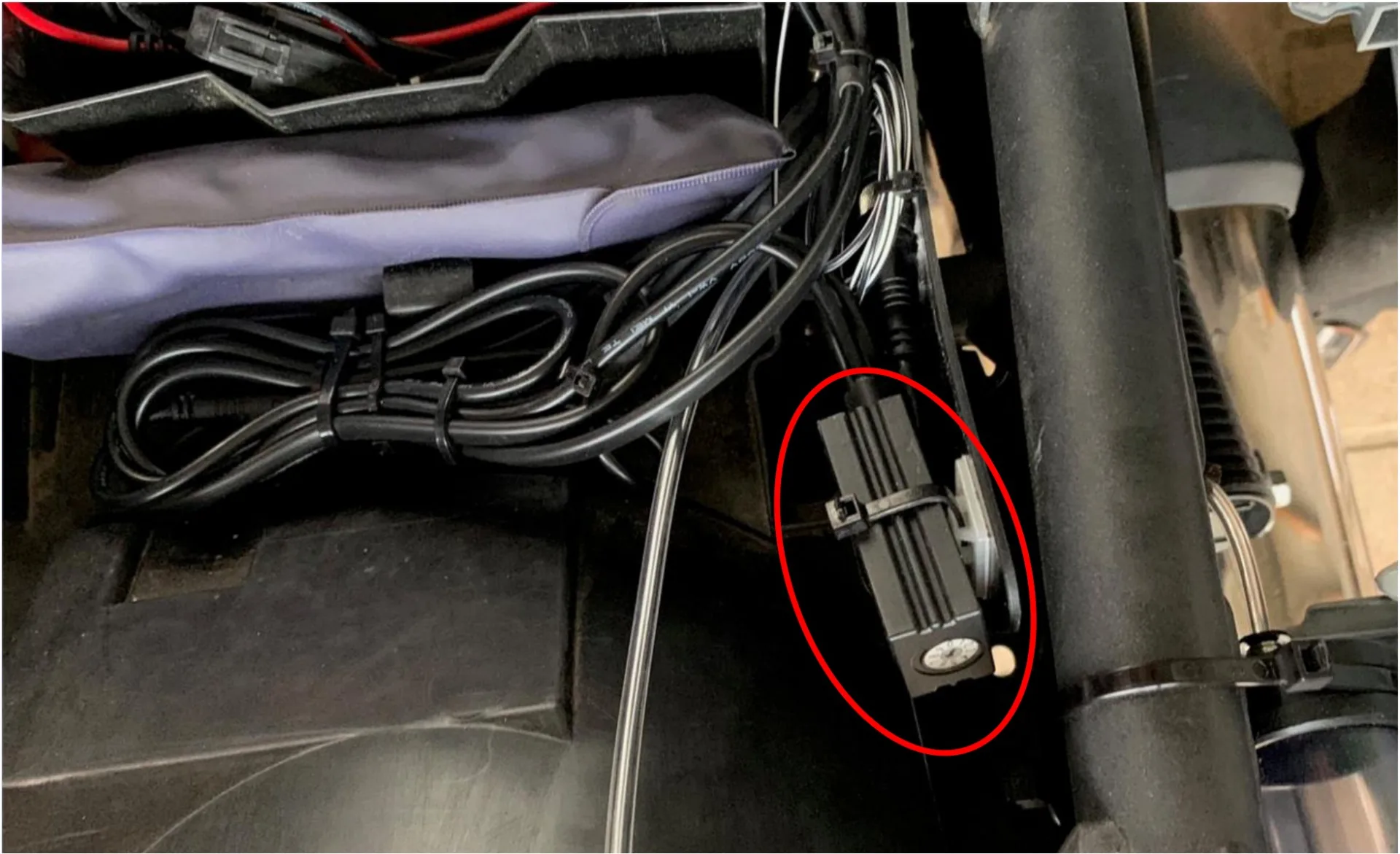

Control unit
The control unit also sits under the seat, on the right next to the battery.
