Chain oiler for the KTM 790 Duke
2 installation reports for this model
Installation report by Low
KTM 790 Duke – year of manufacture 2020
oil reservoir 60 ml
Under the pillion seat, on the right-hand side
metering valve
In the tool compartment between the battery and the rider’s seat
nozzle
On the inner side of the drive sprocket
switched 12 V supply

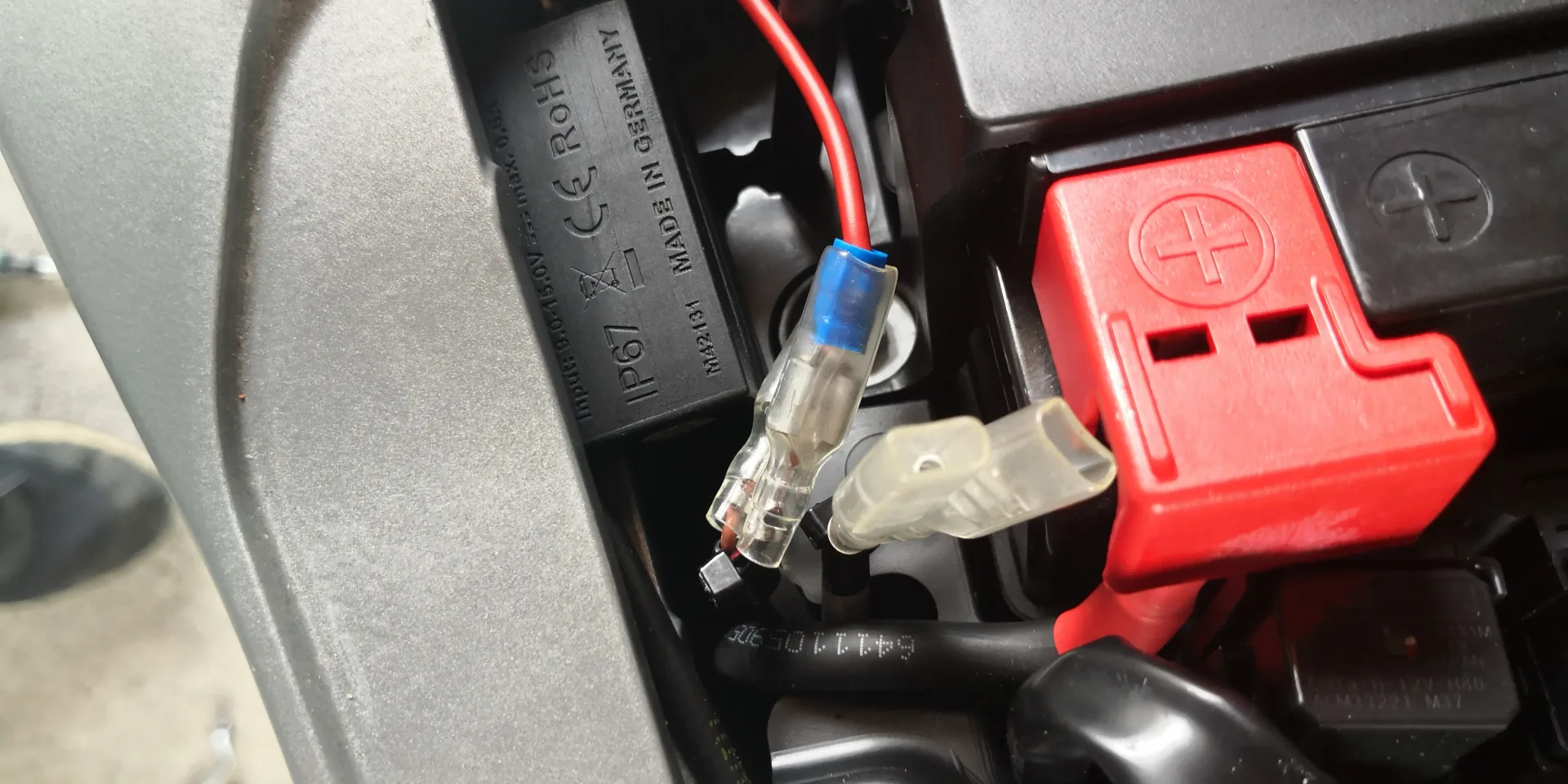

Connection at the ACC2 plug under / to the left of the battery
rain switch
Attach to the handlebar clamp (the mounting plate has to be drilled out)
control unit
Under the pillion seat, on the left next to the battery
Installation report by Ralf
KTM 790 Duke – year of manufacture 2020
oil reservoir 60 ml
On the left next to the battery (the variable reservoir vent is fitted as well)
metering valve
In the tool compartment – the hose can also be routed downwards through the water drain here (with the heat protection sleeve fitted in addition).
nozzle
On the inner side of the front sprocket
switched 12 V supply
On the left next to the battery, under the oil reservoir, both positive leads connected to the ACC2 accessory connector.
rain switch
On the left-hand side of the handlebar
control unit
Under the seat, looped behind the battery
