Chain oiler for the Suzuki GSX 750 AE
Installation report by Tammo
Suzuki GSX 750 AE – year of manufacture 1998
6 sections
6 photos
Matching product:
MOFESSOR | The intelligent Chain oiler - Standard (60 ml)

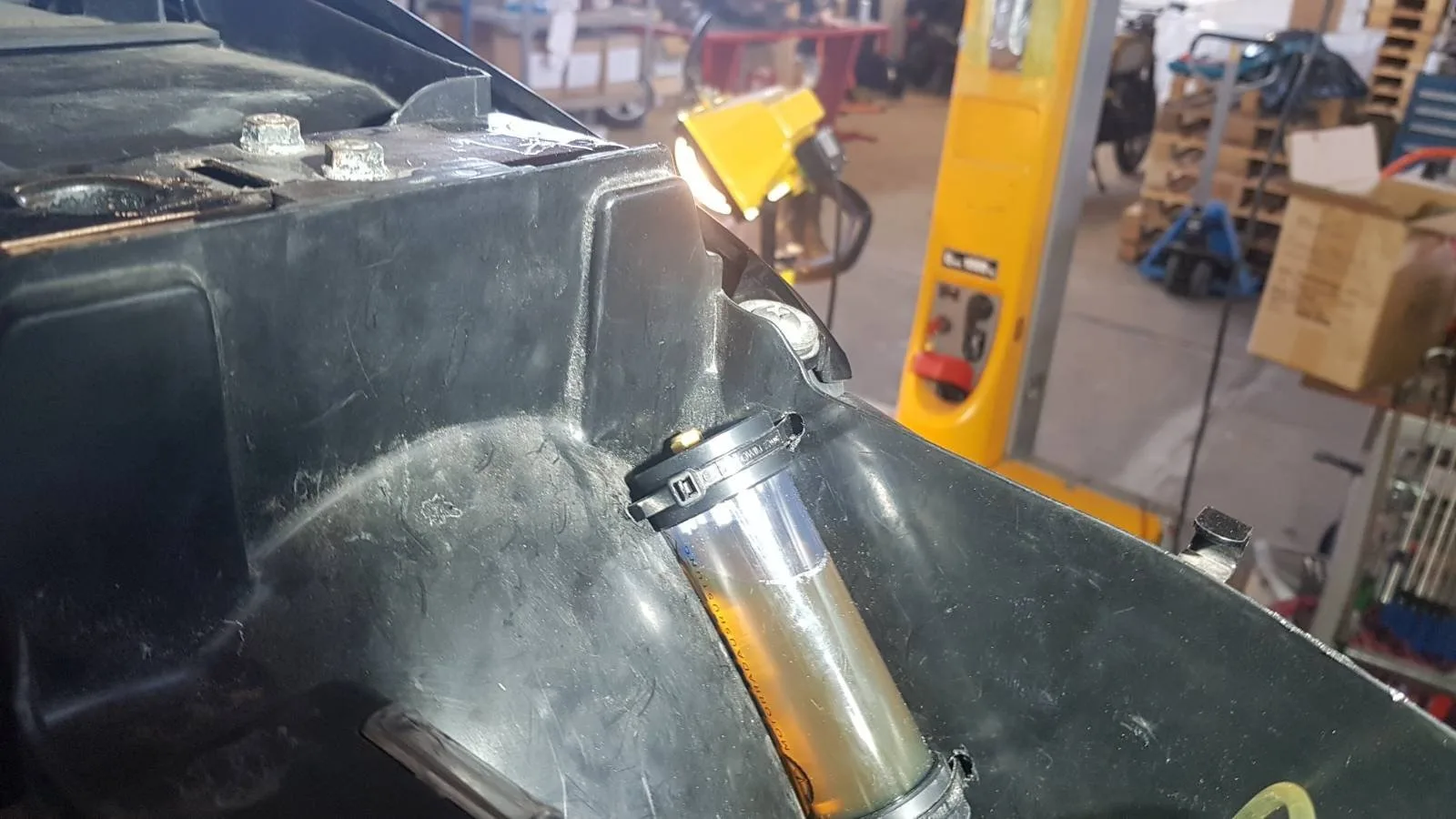

oil reservoir 60 ml
Oil reservoir fitted in the compartment under the seat, left side.

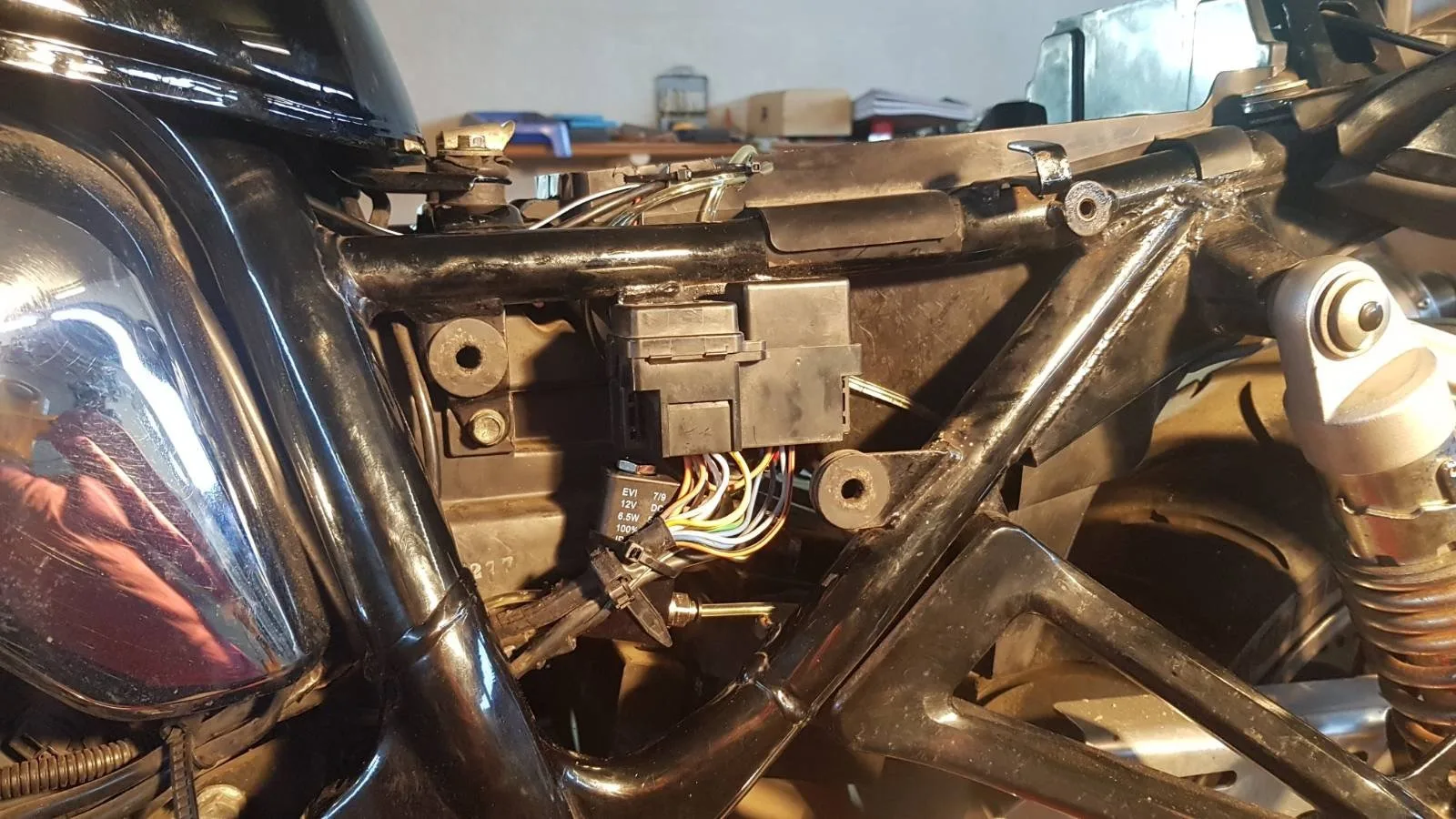

metering valve
Fitted in the left frame triangle, bracket hidden behind the valve.

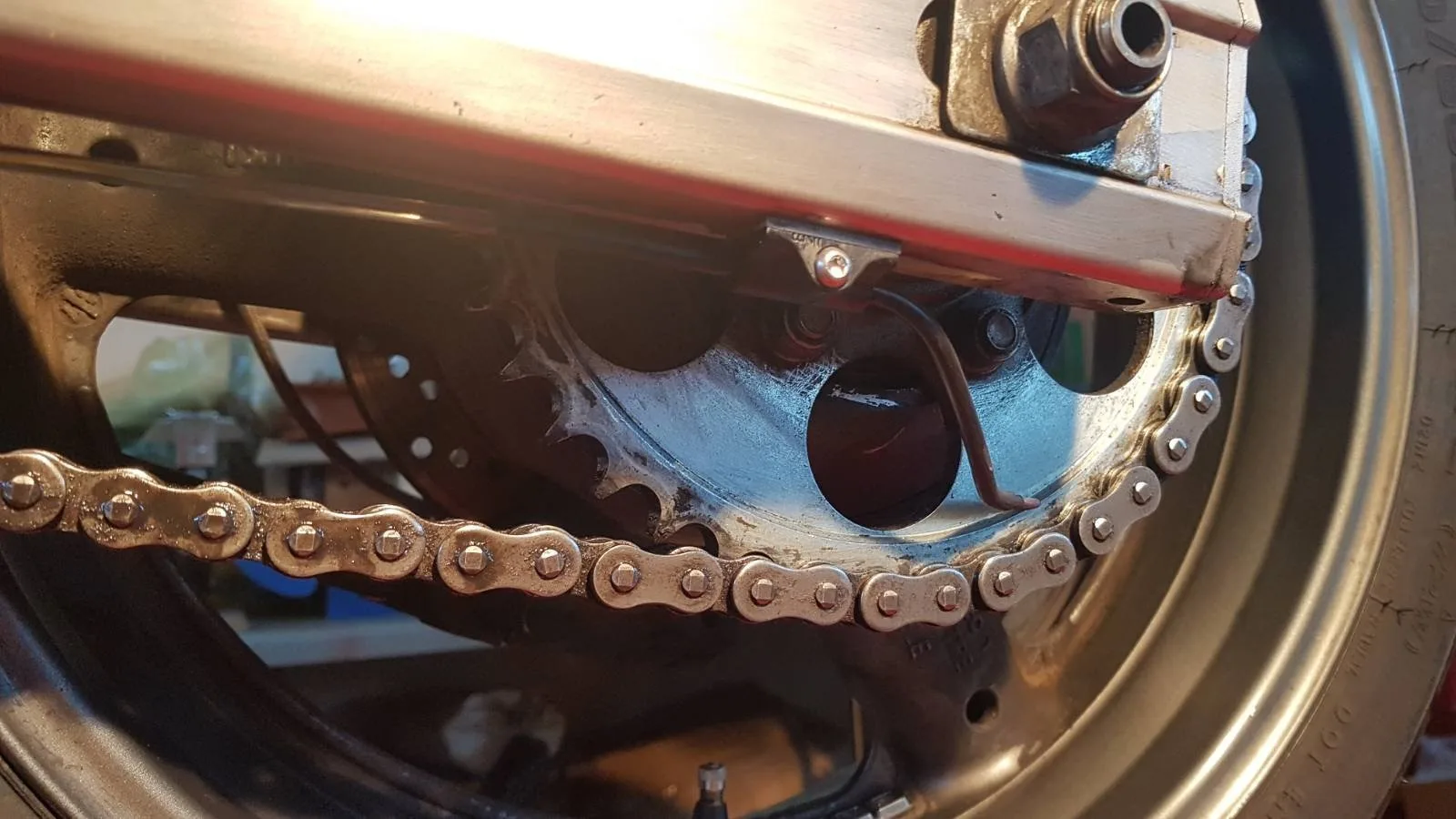

nozzle
On the outside of the rear sprocket, hose routed under the swingarm and upwards over the swingarm spindle.
switched 12 V supply
Connected via the twin connector to the positive terminal of the horn.
rain switch
On the left mirror mount.
control unit
In the compartment under the seat, right side.
