Chain oiler for the Suzuki GSX 750F
Installation report by Holger
Suzuki GSX 750F – year of manufacture 2000
oil reservoir 120 ml
The oil reservoir with the variable reservoir vent fits perfectly under the right rear fairing

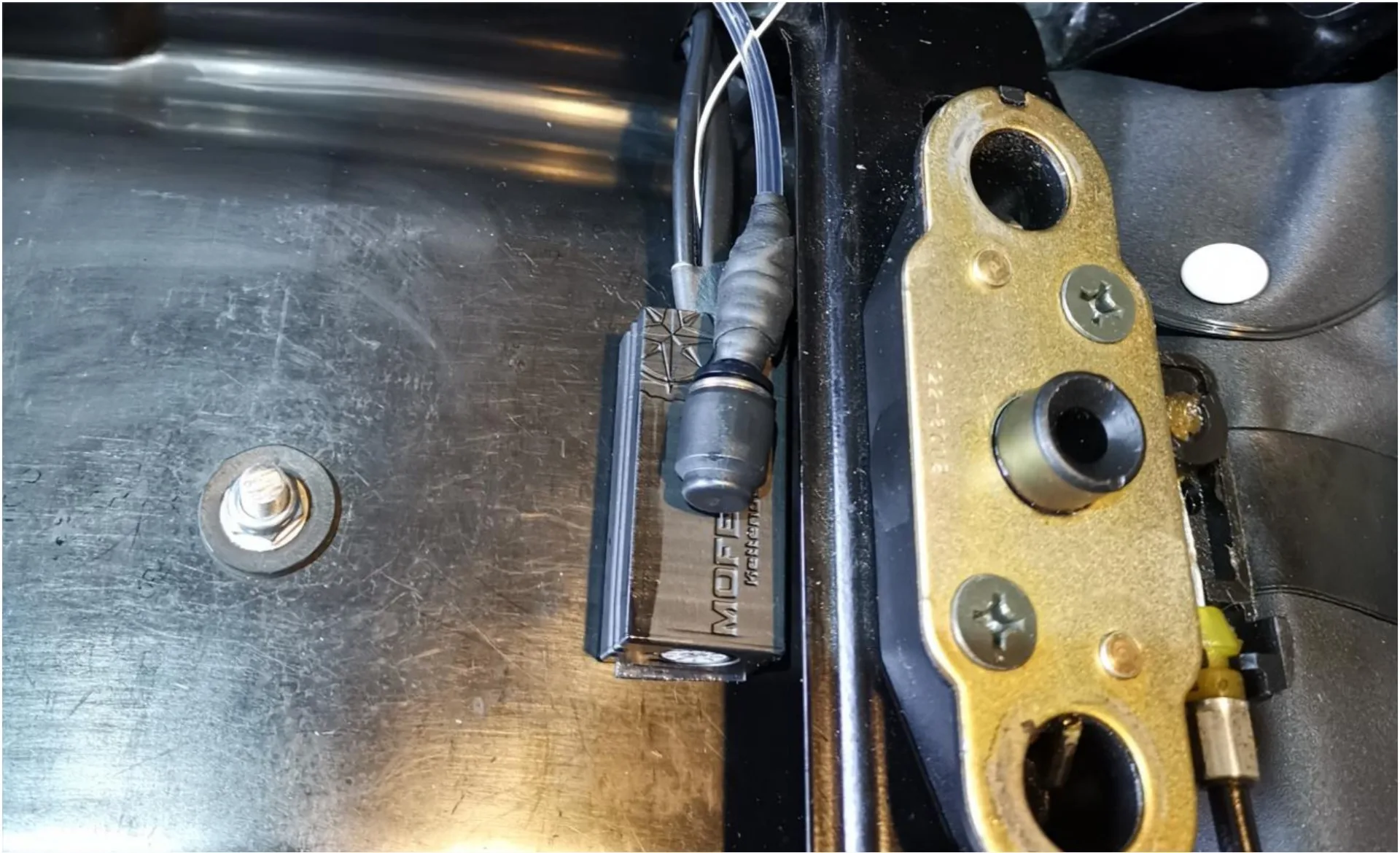

metering valve
The metering valve was attached with double-sided tape (“Tesa Powerbond outdoor”) in the small storage compartment in front of the battery.
nozzle
I attached the nozzle on the left, on the underside of the swingarm
switched 12 V supply
A switched positive lead can be found under the right rear fairing, in the taillight supply lead. Three-pin connector, middle pin (brown wire)
rain switch
The rain switch is on the right-hand side of the handlebar, at the lower mounting bolt of the brake master cylinder.
control unit
The control unit fits very well into the small rear storage compartment under the seat. The box was secured with double-sided tape (“Tesa Powerbond outdoor”)
