    • Chain oiler for the Suzuki V-Strom 650 (DL650)

    Suzuki V-Strom 650

    Installation report by Martin

    Suzuki V-Strom 650 – year of manufacture 2018

    6 sections 7 photos
    Matching product: MOFESSOR | The intelligent Chain oiler - Standard (60 ml)

    oil reservoir 60 ml

    Attached to the charcoal canister at the rear with two cable ties

    Suzuki V-Strom 650 – oil reservoir

    metering valve

    Under the seat, next to the battery

    Suzuki V-Strom 650 – metering valve

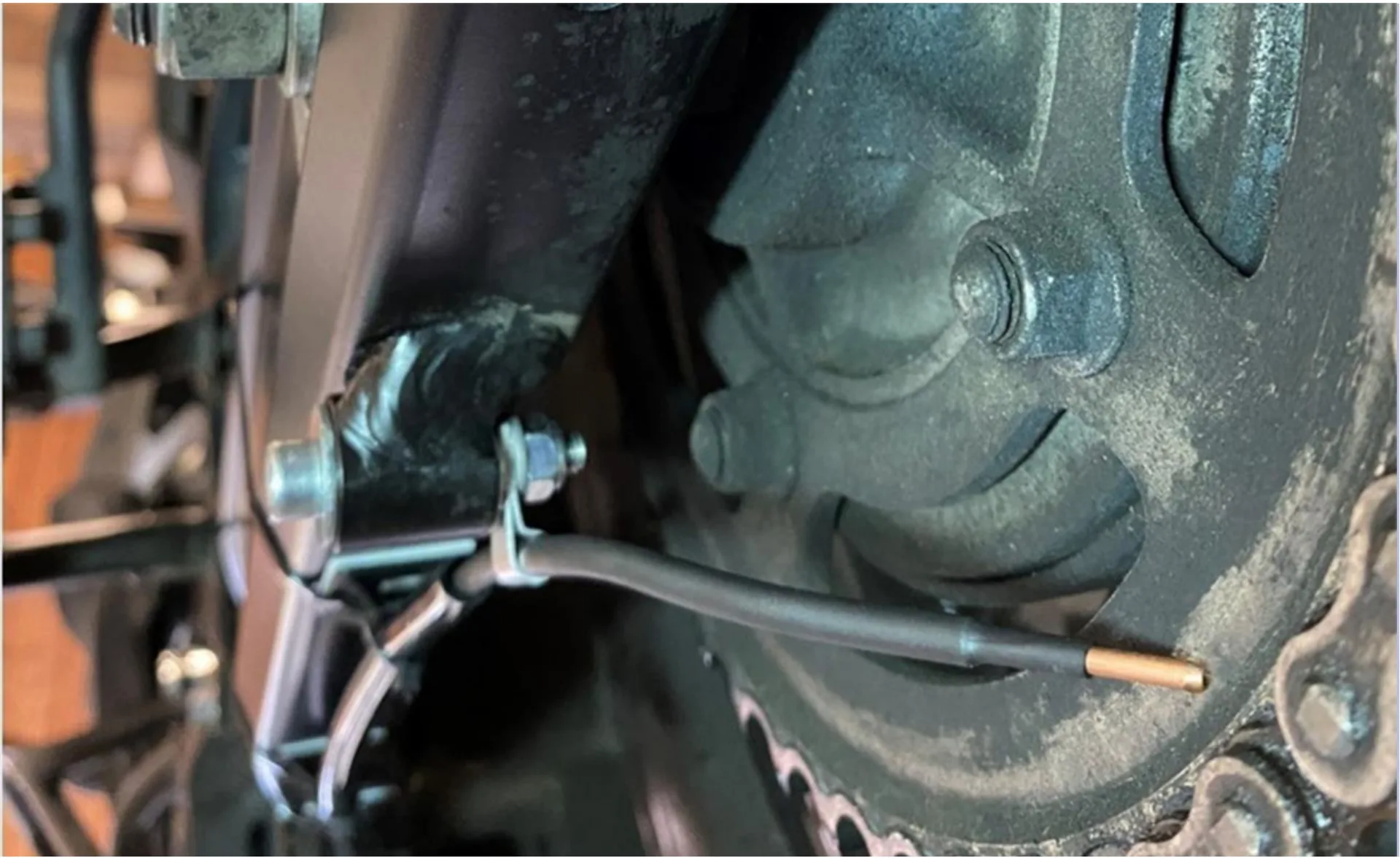

    nozzle

    At the front sprocket, outer side. I carefully drilled the aluminium clamp out to 6 mm and used an M6x40 Allen bolt with three washers and a self-locking nut.

    Suzuki V-Strom 650 – nozzle

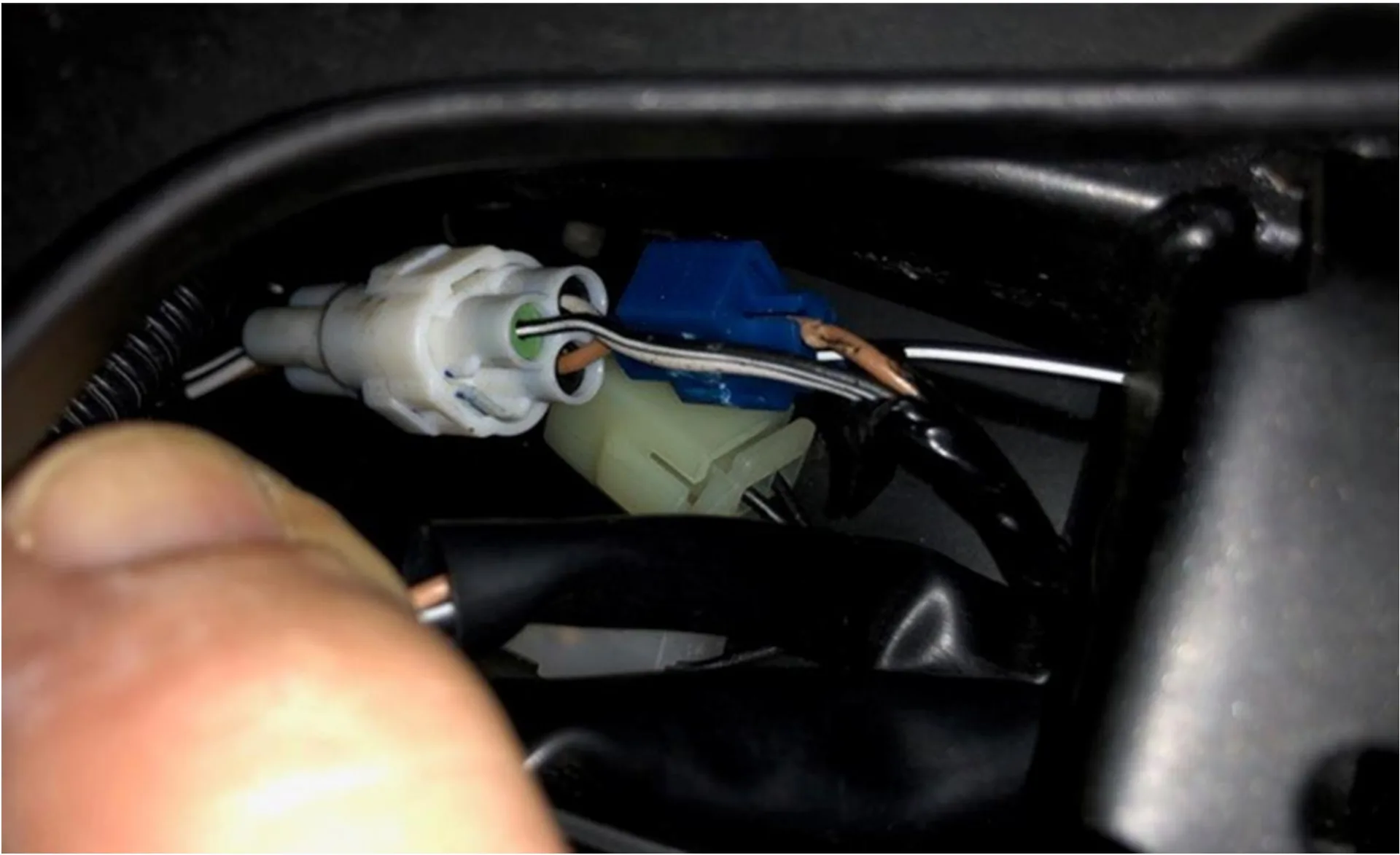

    switched 12 V supply

    Tapped at the taillight (brown wire)

    Suzuki V-Strom 650 – switched 12 V supply

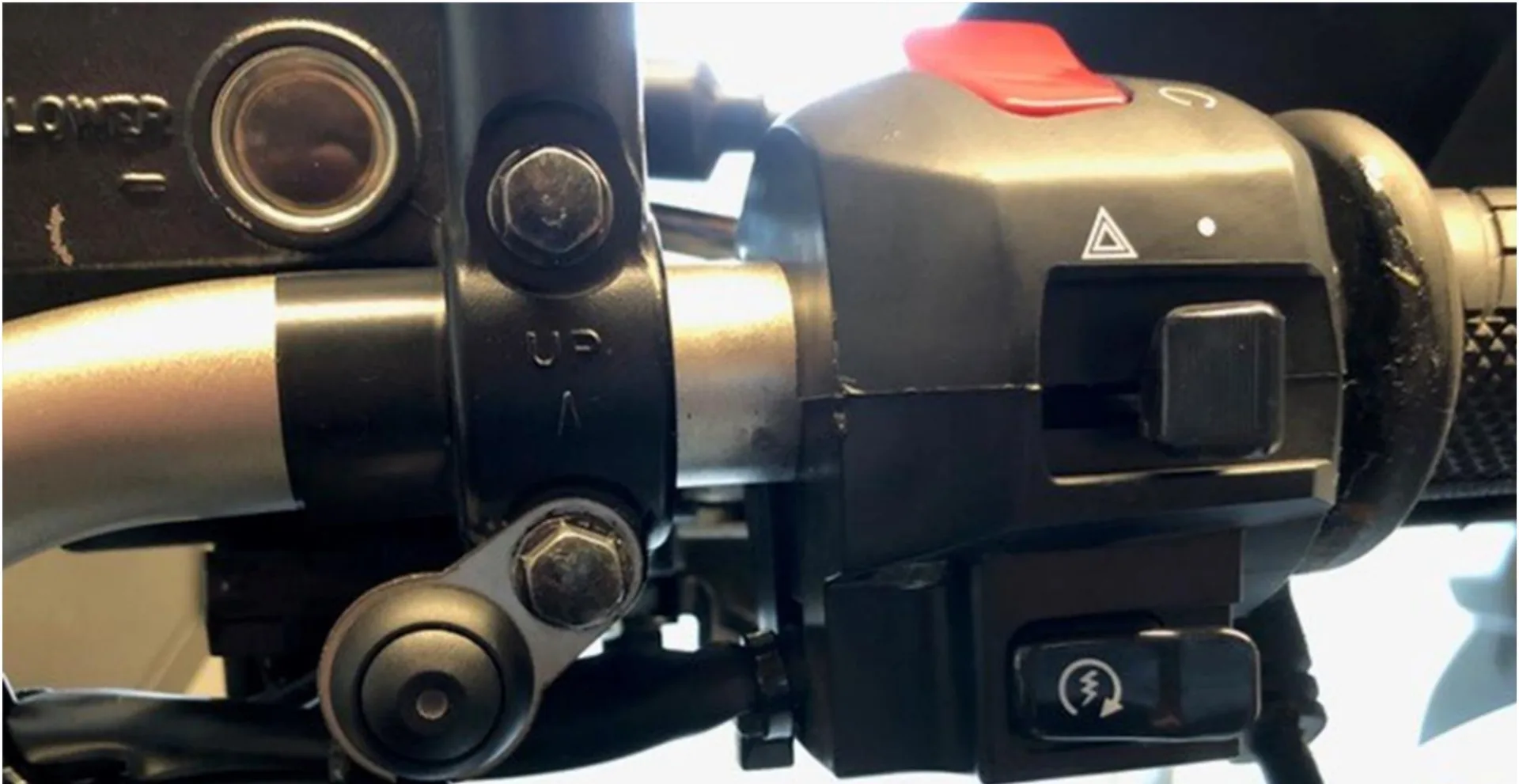

    rain switch

    On the right-hand side of the handlebar

    Suzuki V-Strom 650 – rain switch
    Suzuki V-Strom 650 – rain switch

    control unit

    Under the seat, next to the fuse box

    Suzuki V-Strom 650 – control unit
