Chain oiler for the Triumph Tiger 900 Rally Pro
Installation report by HessenForsti

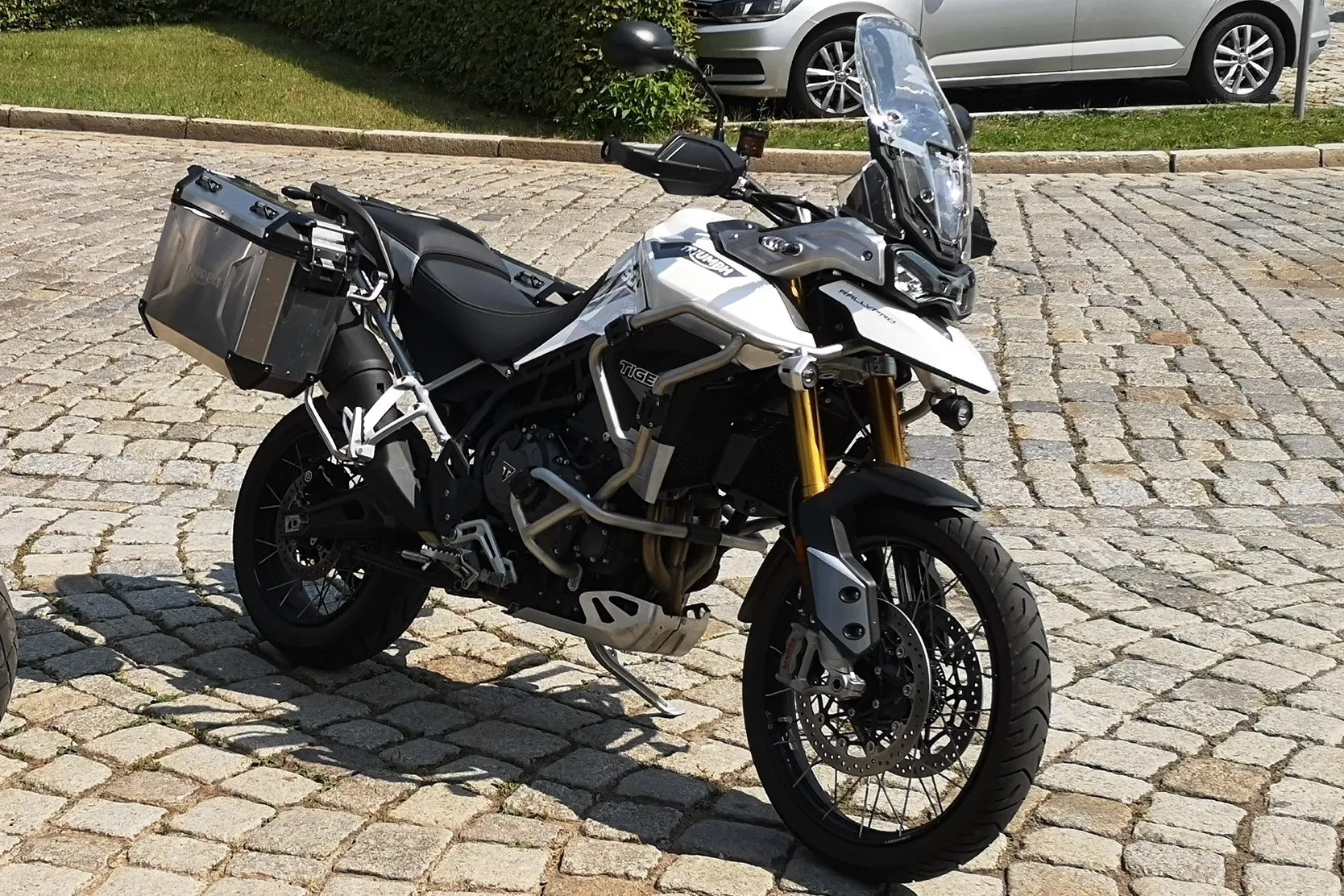

Triumph Tiger 900 Rally Pro – year of manufacture 2020

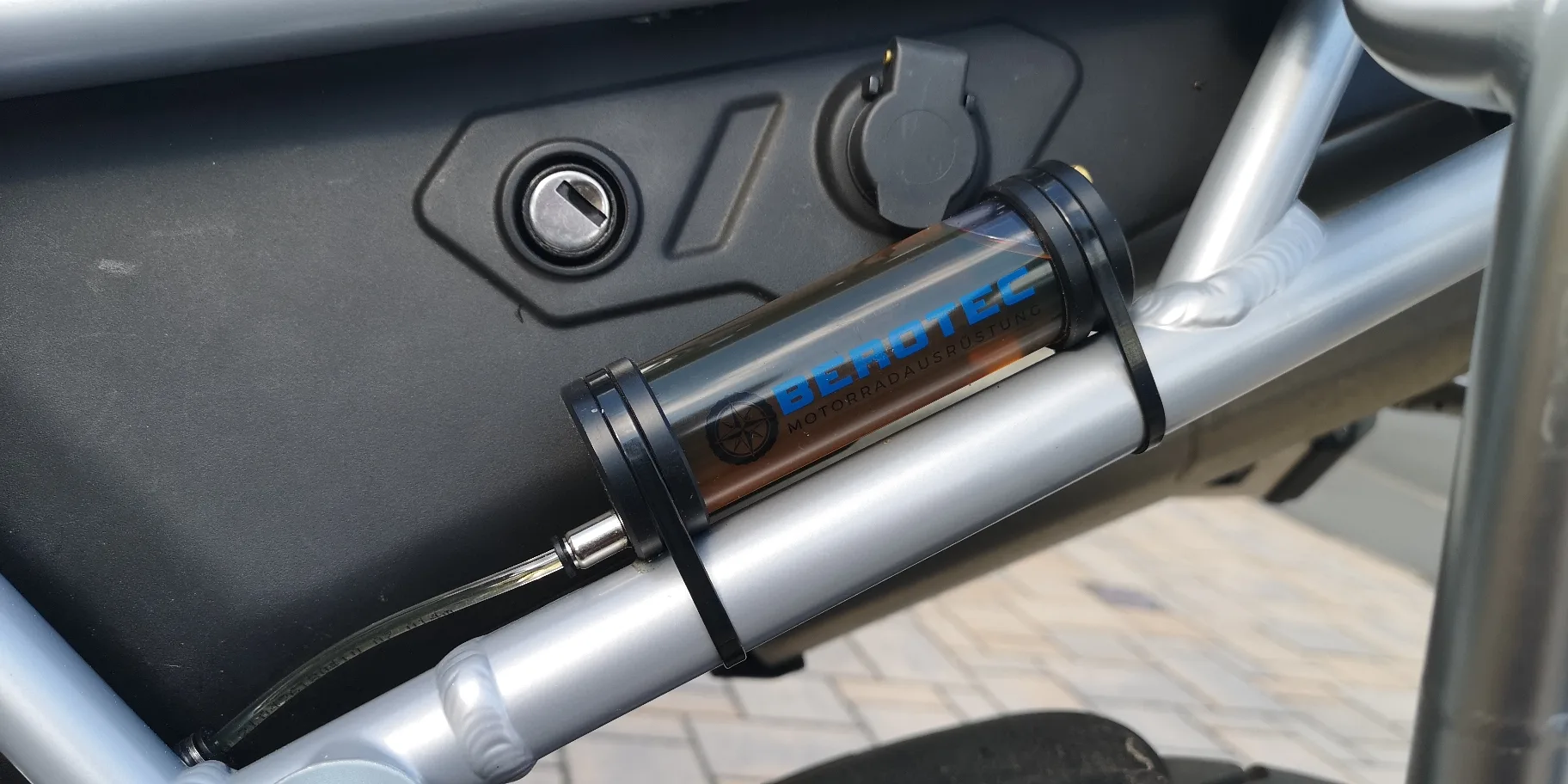

oil reservoir 60 ml
On the left in the direction of travel, on the frame next to the onboard socket

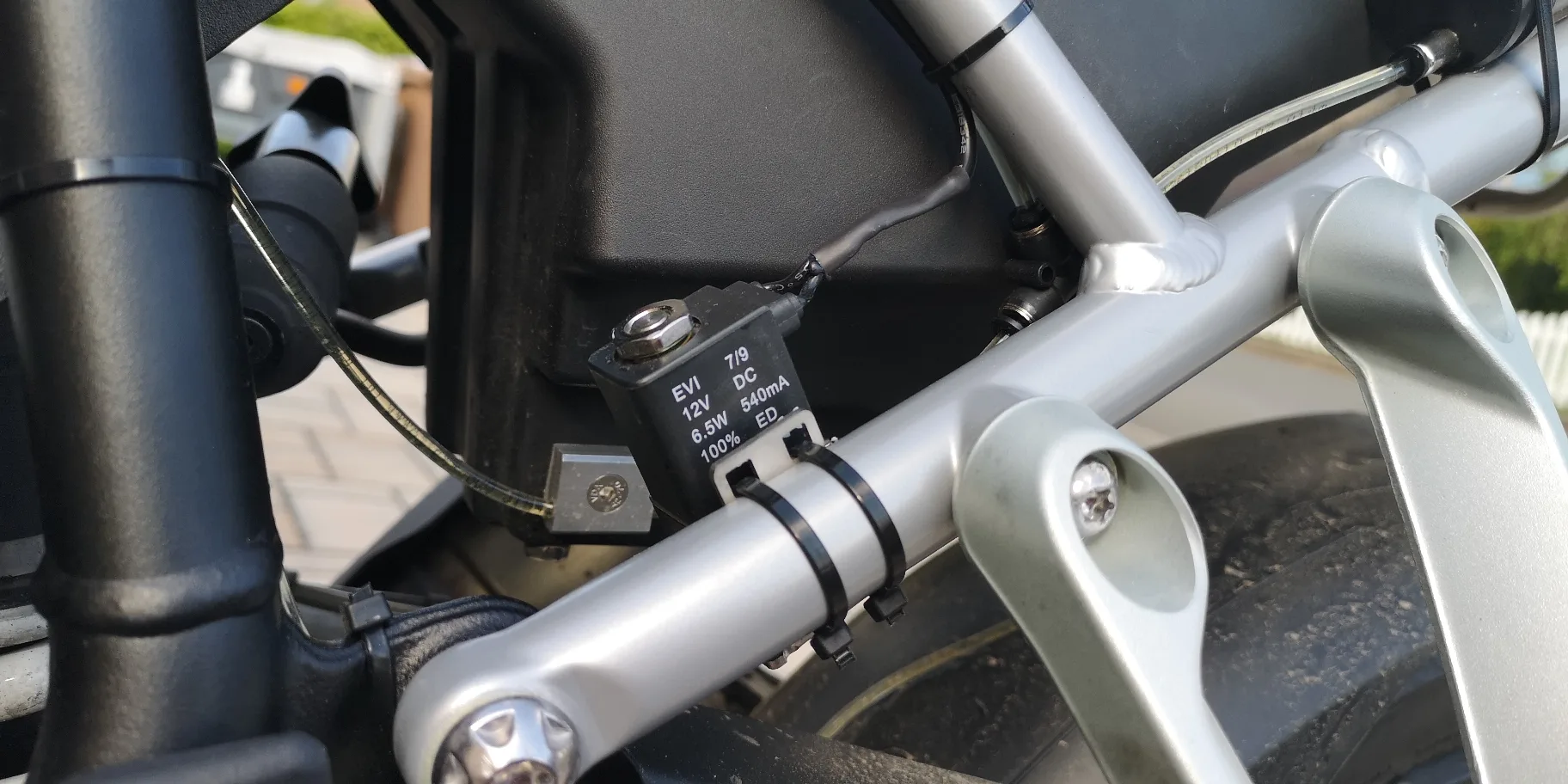

metering valve
On the left in the direction of travel, mounted in the area of the rear footpeg with the supplied bracket

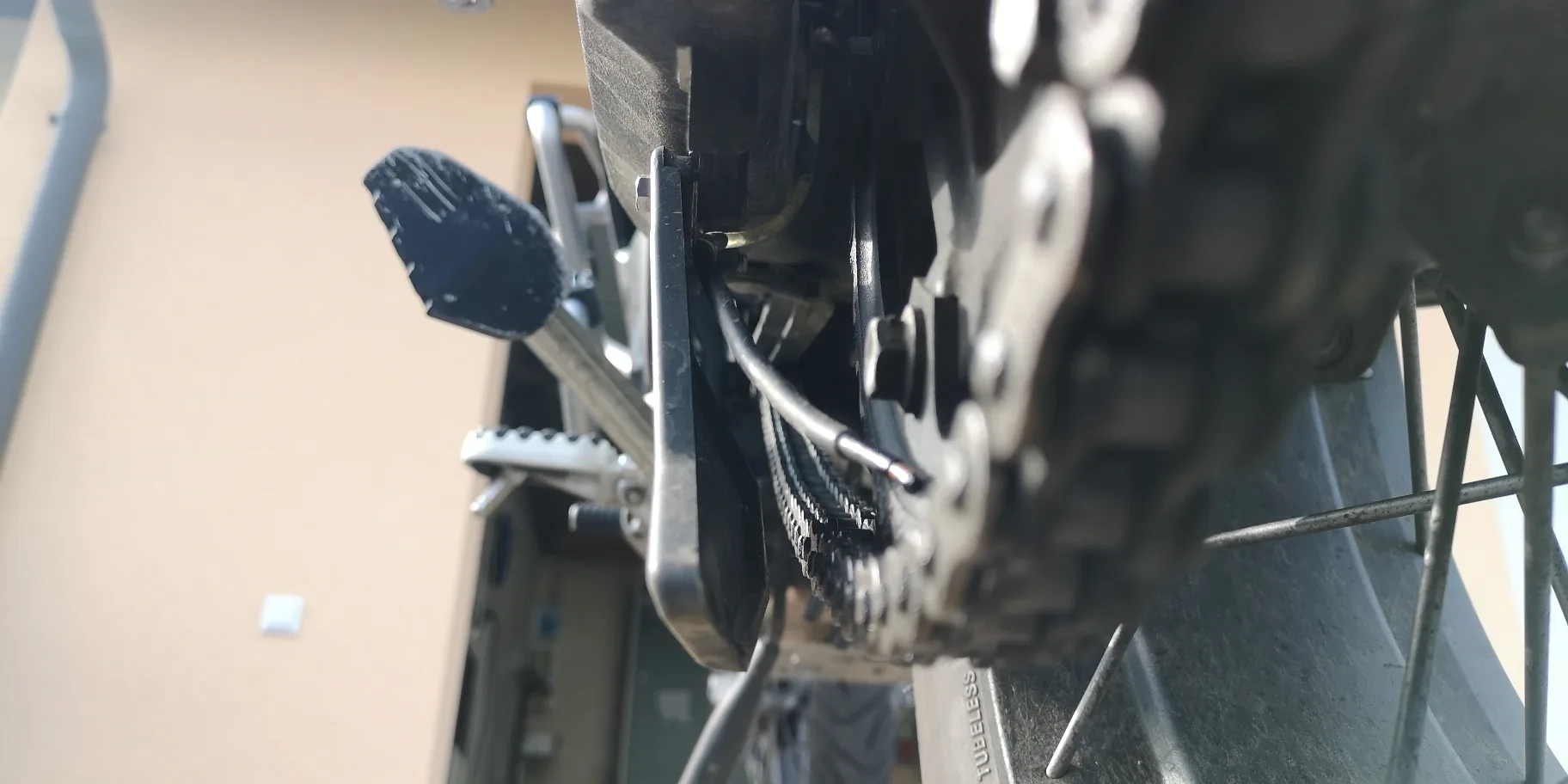

nozzle
Bracket bolted to the lower chain guard. Simply secured with the corresponding bolt when refitting the chain guard.
switched 12 V supply
Power taken from the pillion onboard socket. To do this, the charging compartment under the pillion seat has to be removed. Then disconnect the three connectors of the vehicle electronics and lift them slightly. That gives access to the connector of the onboard socket. Pull it off and lay it forwards. The purple wire is the switched positive.
rain switch
On the left-hand side of the handlebar
control unit
Secured with double-sided tape on the left next to the battery in the direction of travel.
