Chain oiler for the Triumph Tiger Sport 1050
Installation report by Gerd
Triumph Tiger Sport 1050 – year of manufacture 2019
6 sections
6 photos
Matching product:
MOFESSOR | The intelligent Chain oiler - Standard (60 ml)
oil reservoir 60 ml
On the left-hand side of the subframe, under the side panel

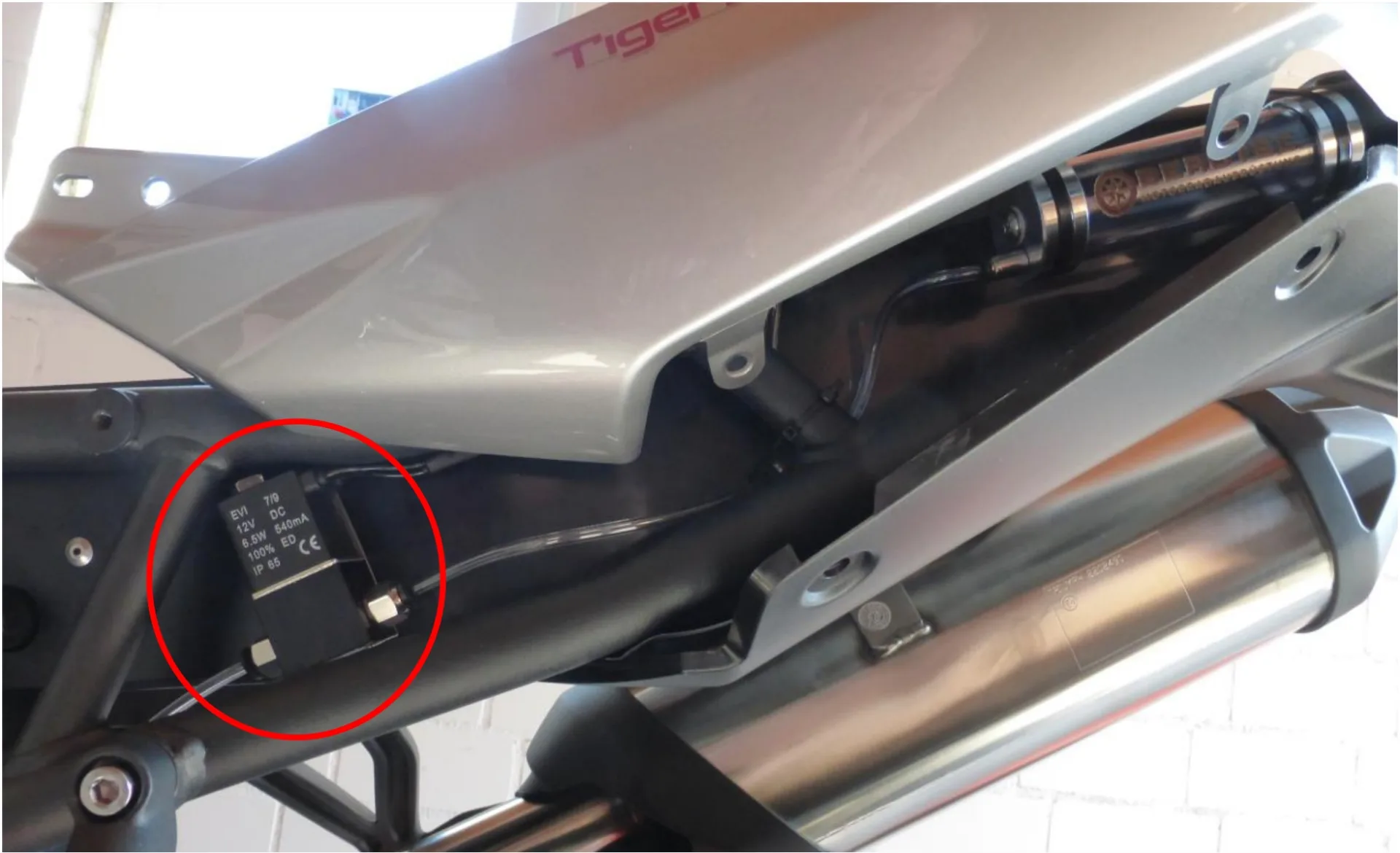

metering valve
On the left-hand side of the subframe, under the side panel

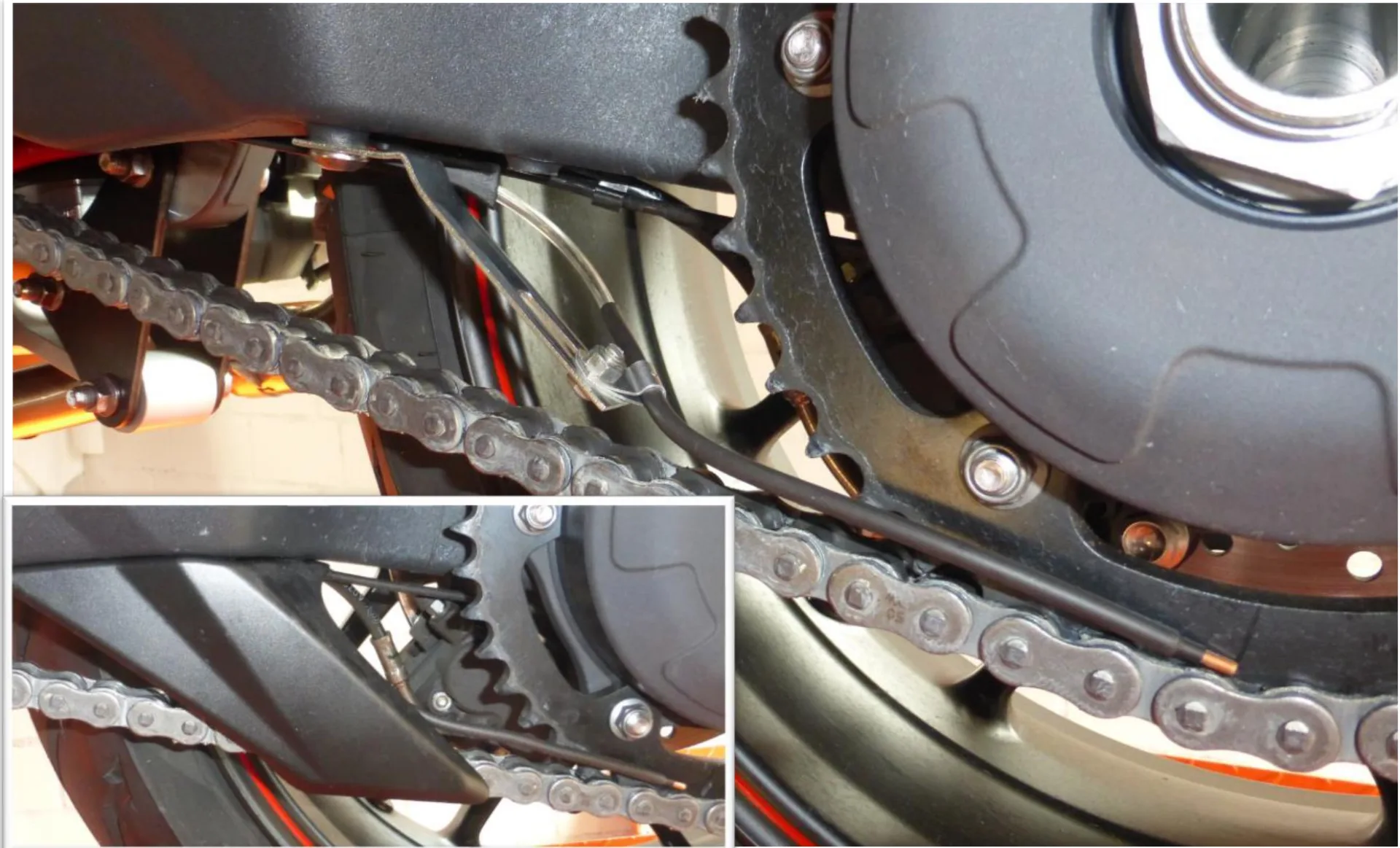

nozzle
At the rear sprocket, outer side (home-made mounting plate).
switched 12 V supply
Fuse holder released from its mount and the power supply for the switched positive tapped at fuse no. 5 (accessories), 10 A, with the supplied tap connector.

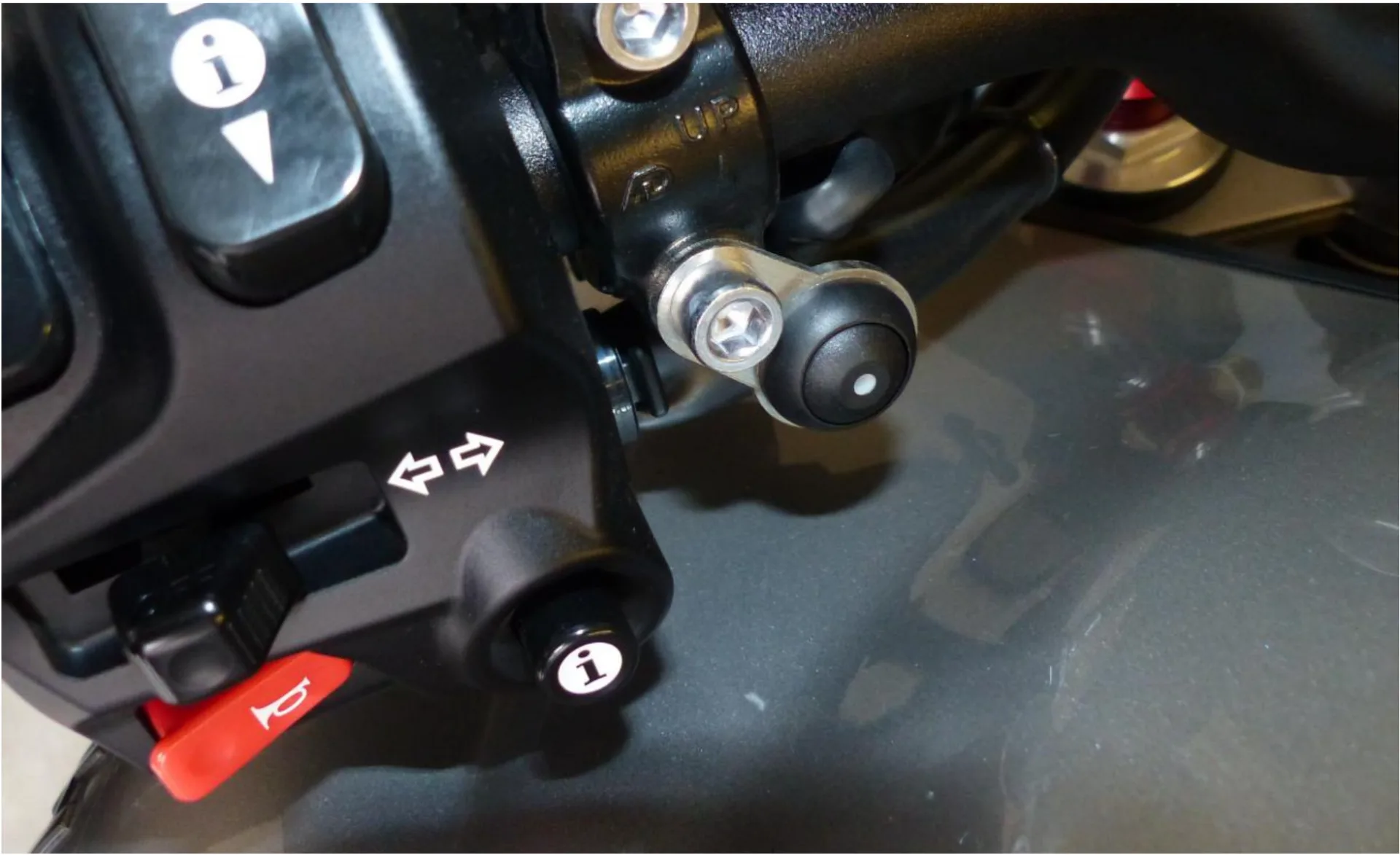

rain switch
On the left-hand side of the handlebar
control unit
Under the seat
