Chain oiler for the Yamaha FZ1 N
Installation report by Andre
Yamaha FZ1 N – year of manufacture 2008
6 sections
6 photos
Matching product:
MOFESSOR | The intelligent Chain oiler - Standard (60 ml)
oil reservoir 60 ml
Under the rear fairing, right side in the direction of travel, on the right next to the pillion seat.

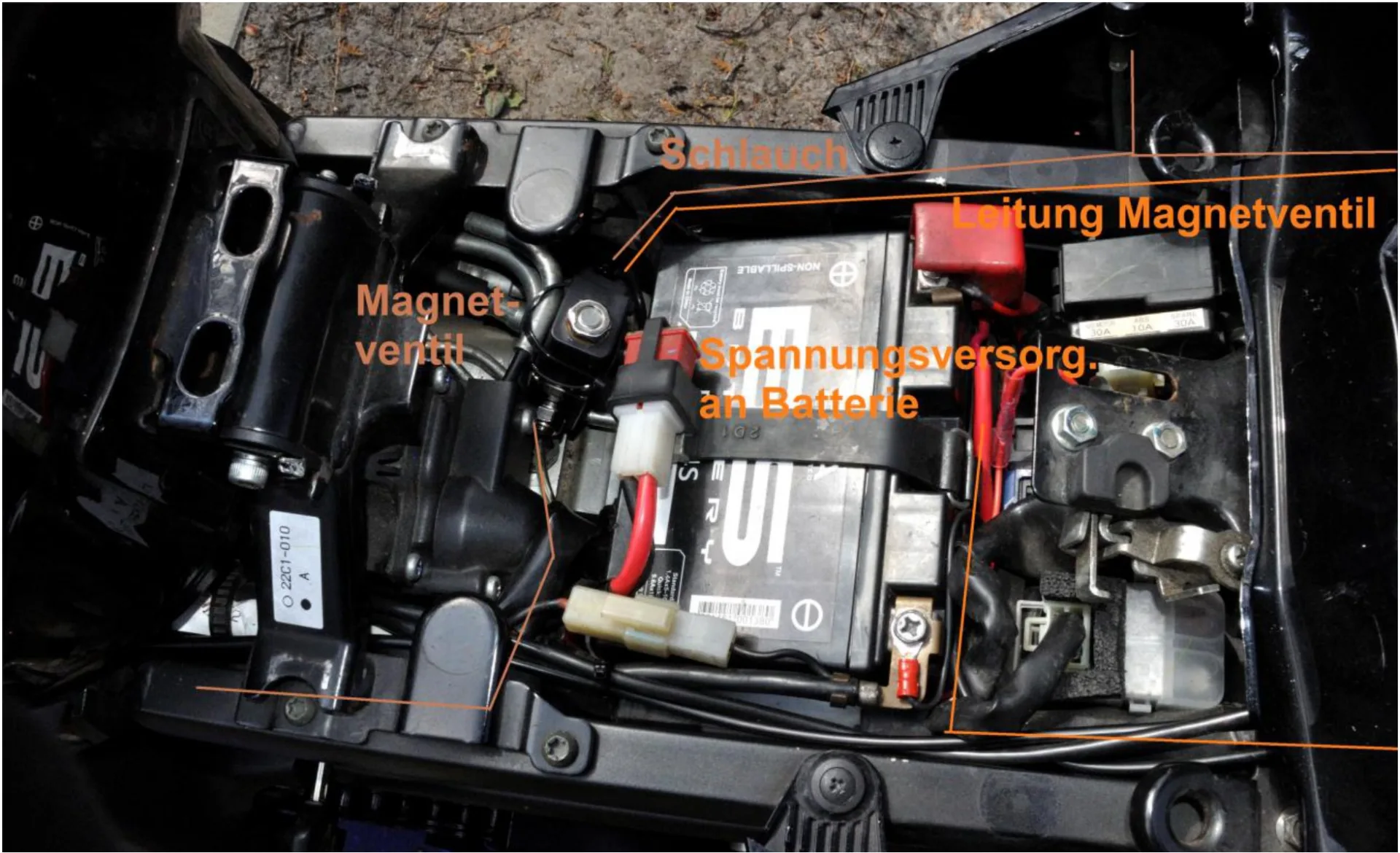

metering valve
In front of the battery in the direction of travel – metering direction from right to left.
nozzle
Nozzle under the swingarm. Hose routed through the swingarm opening along the shock absorber.
switched 12 V supply
On the taillight wire, three-pin connector, left side of the rear fairing (wire colour: blue).
rain switch
At the clamp sleeve of the clutch lever / mirror mount
control unit
Control unit in the rear compartment under the pillion seat
