Chain oiler for the Yamaha TDM 900
Installation report by Alex
Yamaha TDM 900 – year of manufacture 2007
oil reservoir 60 ml
Under the seat, in front of the tool compartment (with the variable reservoir vent fitted in addition) The white block on the left side of the oil reservoir is a polystyrene spacer. The variable reservoir vent and the filler hose lie on top of the tool bag.
metering valve
Under the left rear fairing on the frame. The hose runs in an arc in front of the taillight to the oil reservoir.

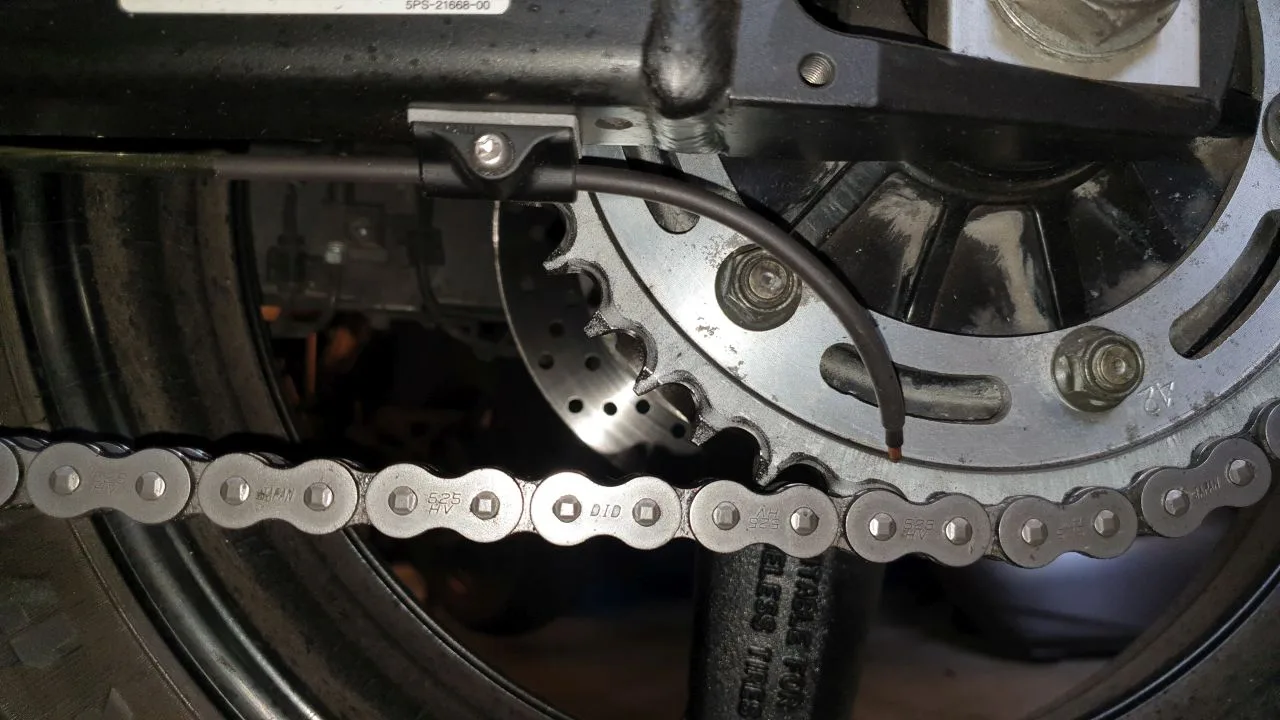

nozzle
At the rear sprocket, outer side. I routed the hose under the swingarm and then upwards on the left-hand side of the frame.
switched 12 V supply
At the rear left under the seat there is a four-pin connector. One contact in this four-pin connector is switched. I found the matching connector housing at www.xmas1.at. The designation is Vielfachstecker 2.3 (item no. V-19621). The connector was fitted into the four-pin connector housing with a pin.
rain switch
On the left-hand side of the handlebar. I routed the cable along the wiring harness through the openings in the frame on the right, between the fuel tank and the frame, to the rear.
control unit
Under the seat, in the free space
