Chain oiler for the Yamaha Ténéré 700
6 installation reports for this model
Installation report by Jonas
Yamaha Ténéré 700 – year of manufacture 2024

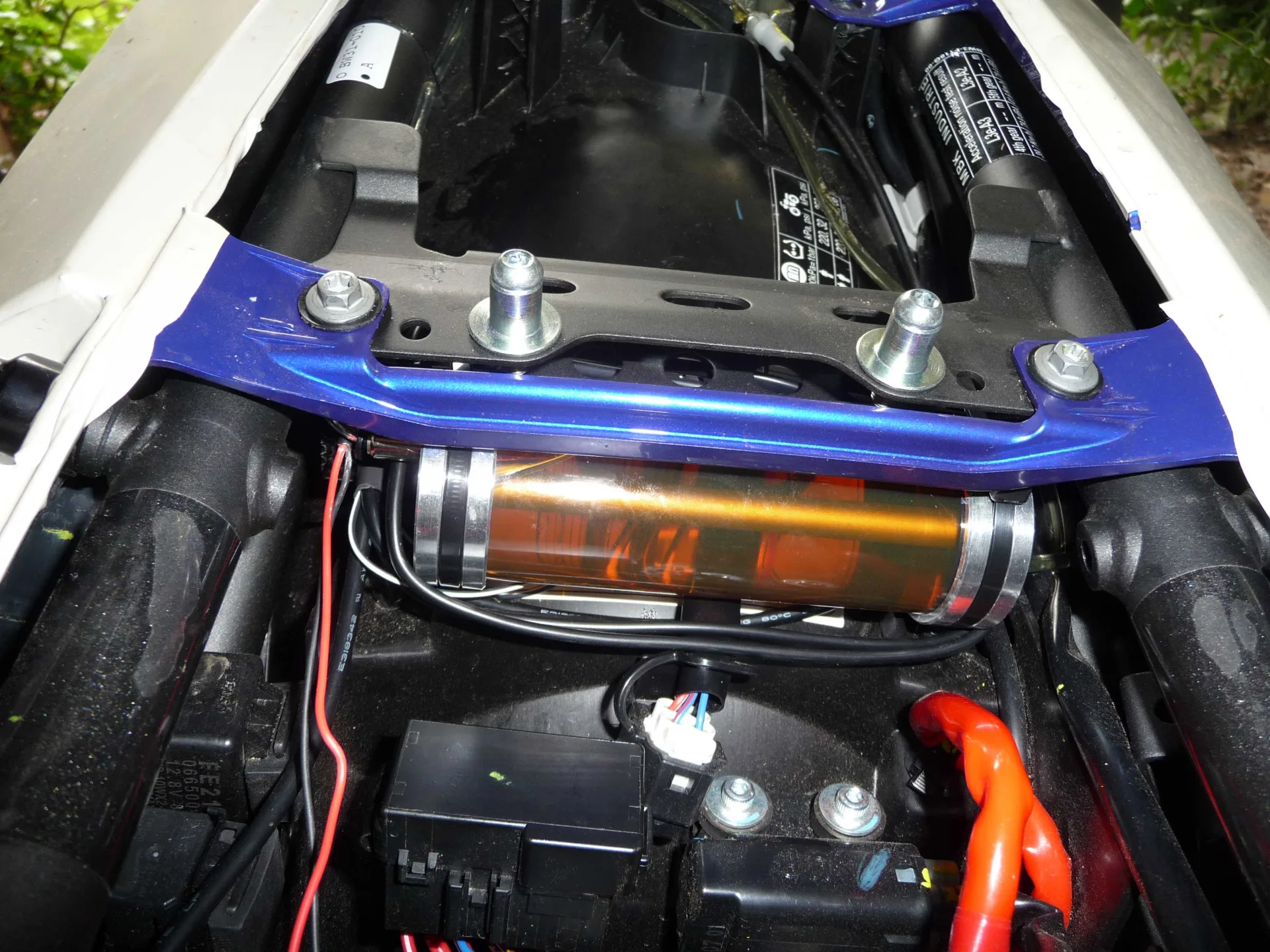

oil reservoir 120 ml
Under the rear fairing, on the right-hand side of the frame (wedged in and secured with an extended cable tie)
metering valve
Fitted at the rear left behind the ECU and attached to the rear lighting wires with a cable tie.
nozzle
At the rear sprocket, outer side, hose routed up along the subframe.
switched 12 V supply
Tapped at the front right behind the fairing on the brown wire with a branch connector.
rain switch
Bolted on together with the mirror mount, on the left-hand side of the handlebar.

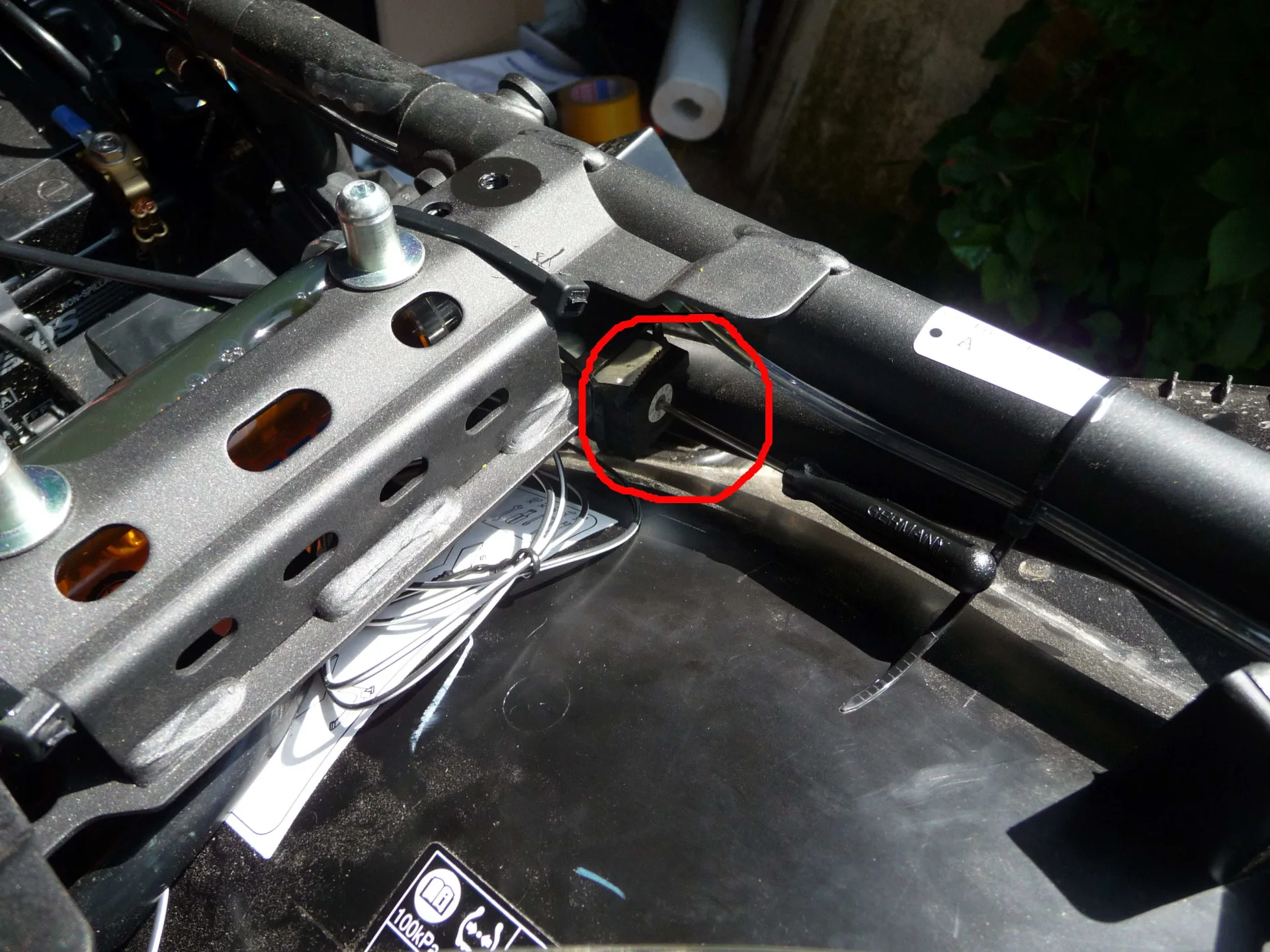

control unit
Under the seat, on top of the battery. Cable coiled up and tucked in on the left next to the battery. Set to level 5.
Installation report by hega
Yamaha Ténéré 700 – year of manufacture 2020
oil reservoir 60 ml
Position at the rear right, behind the cover.
metering valve
Behind the right rear side cover. Attached to the frame tube with a cable tie.
nozzle
Oil hose routed through the outer rubber cover on the right side of the swingarm to the inner rubber cover on the left side. (The photo shows the top view of the left swingarm; the nozzle emerges from the rubber cover.)

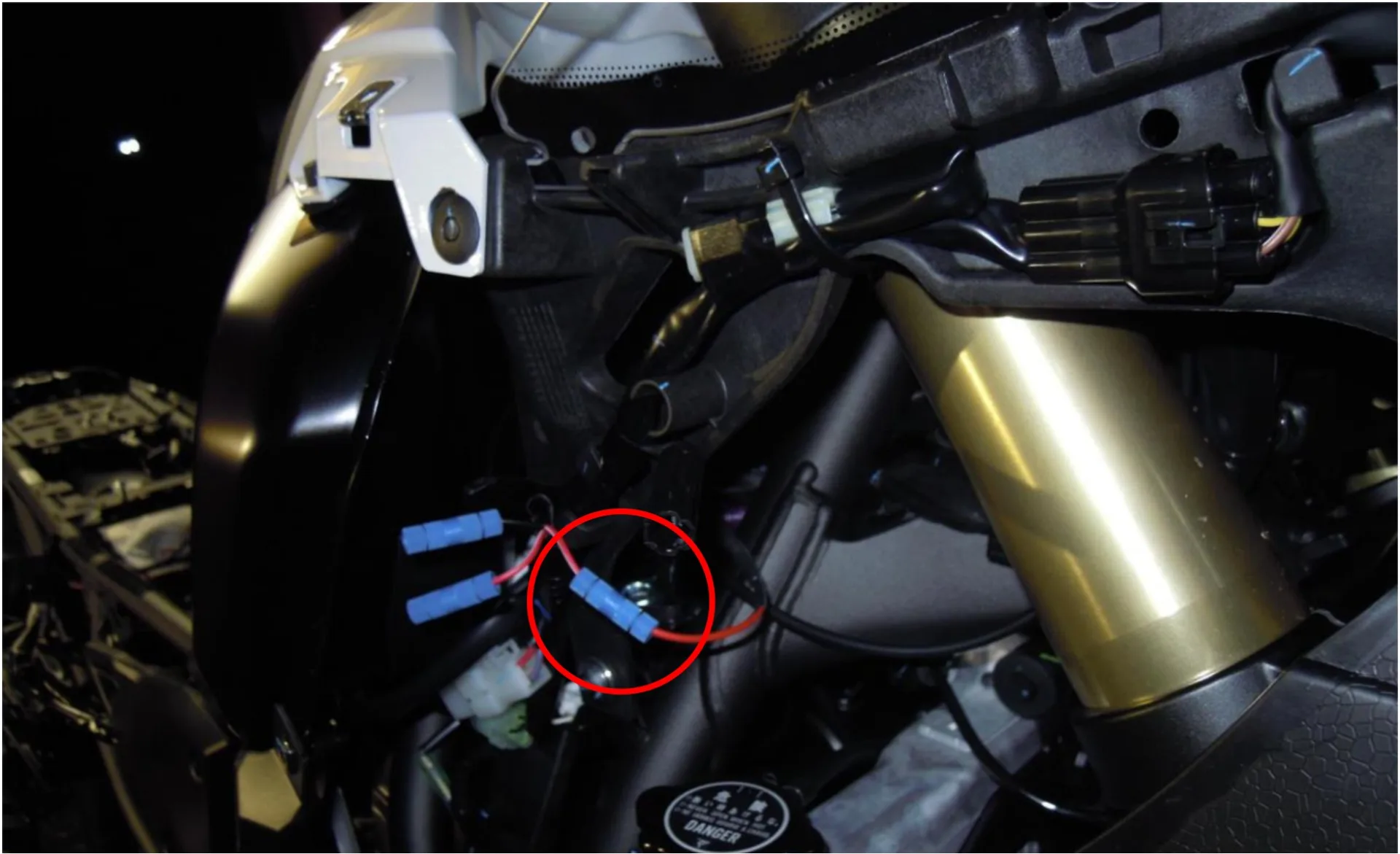

switched 12 V supply
Connected at the three-pin connector behind the front right side panel. Connected to the red/white wire using BEROTEC part no. BPK-Z06-3.

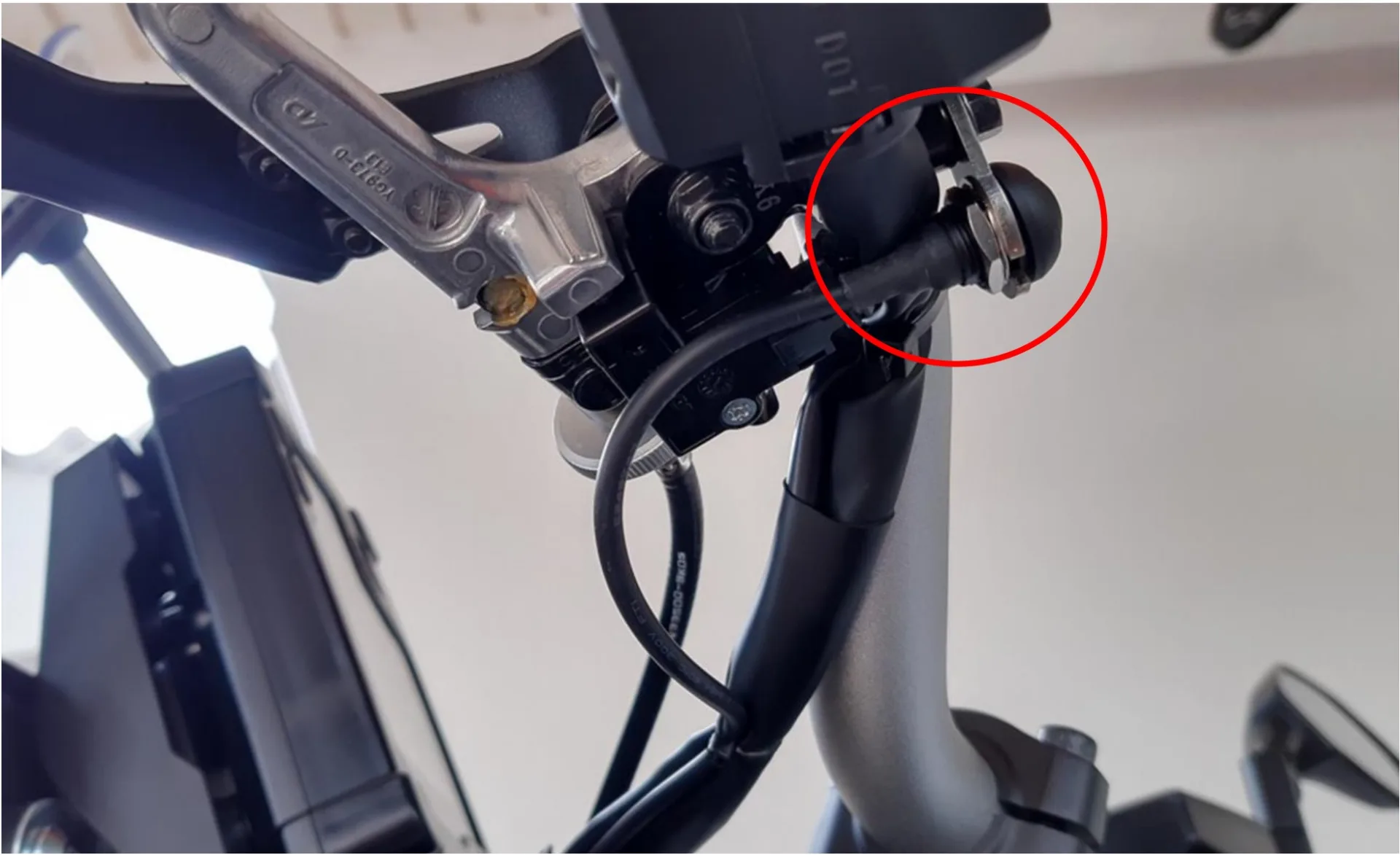

rain switch
Rain switch, on the left-hand side of the handlebar, at the mirror mounting bolt.
control unit
The control unit sits in the middle of the brace under the seat. Caution! The seat hooks engage there on the left and right. Make sure no cables get trapped! Top left in the photo: the filler hose.
Installation report by Christoph Schultz
Yamaha Ténéré 700 – year of manufacture 2020
oil reservoir 60 ml
Under the rear fairing, on the right-hand side of the frame
metering valve
Under the cross brace of the seat mount at the rear

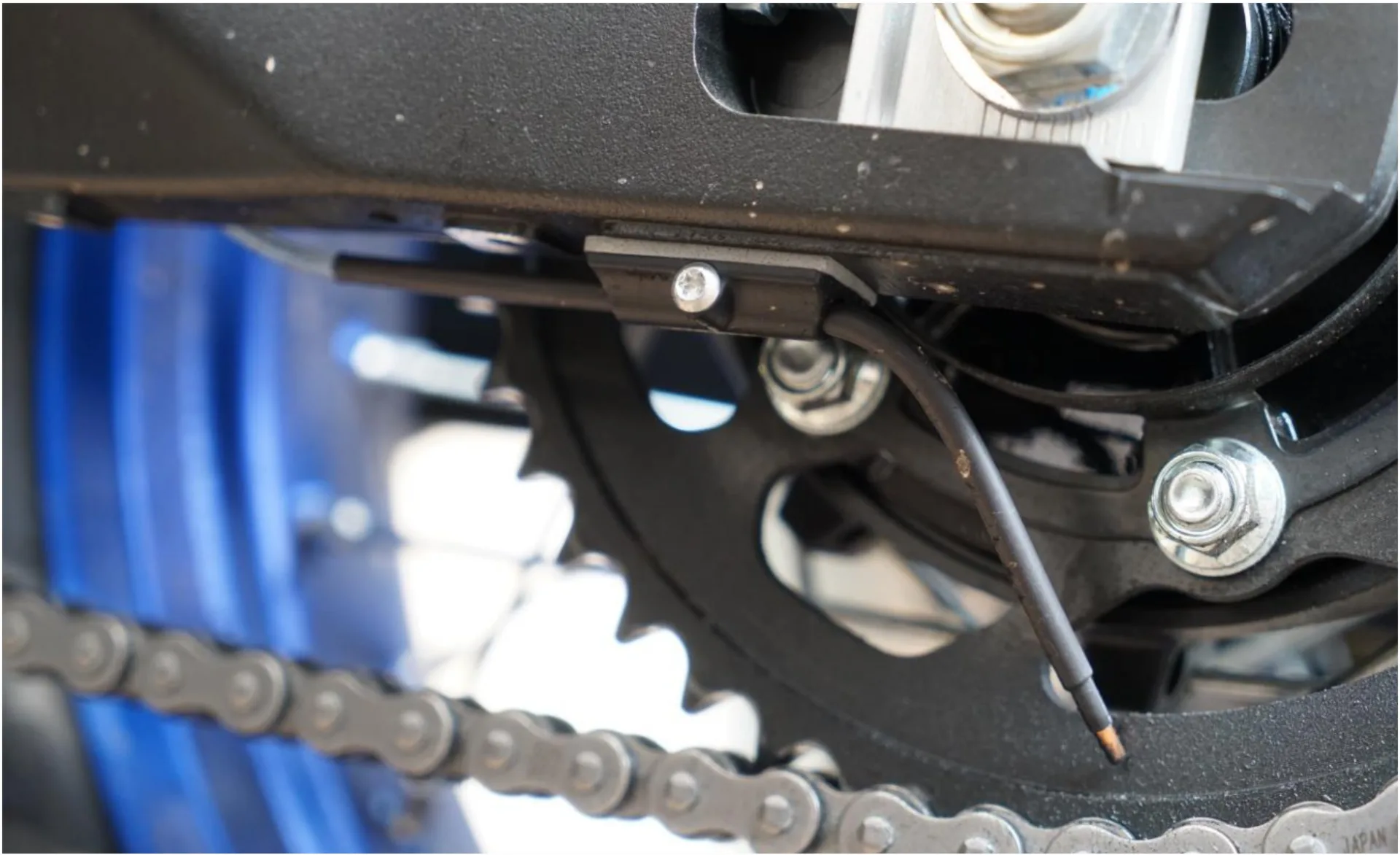

nozzle
At the rear sprocket, outer side – hose bracket attached to the inside of the swingarm.
switched 12 V supply
Under the right front side section, to which the indicator is also attached. Connected at the three-pin connector that is also used for the heated grips. Insert a cable with the crimped contact into one of the two free positions with the red/white wires. If the heated grips are fitted, use the remaining free position.
rain switch
On the clutch lever assembly.
control unit
Clamped under the rubber retaining strap of the battery.
Installation report by Hannibal
Yamaha Ténéré 700 – year of manufacture 2019
oil reservoir 120 ml
Under the rear fairing, on the right-hand side of the frame (with the variable reservoir vent fitted in addition).
metering valve
Under the cross brace of the seat mount at the rear (with the heat protection sleeve fitted in addition).
nozzle
At the rear sprocket, outer side, hose routed on the inside through the chain slider.
switched 12 V supply
On both sides behind the side panel there is a three-pin connector and a two-pin connector. Here the connector was fitted into the three-pin connector housing with an additional pin.
rain switch
On the left-hand side of the handlebar
control unit
Under the seat, on top of the battery.
Installation report by Thomas
Yamaha Ténéré 700 – year of manufacture 2019

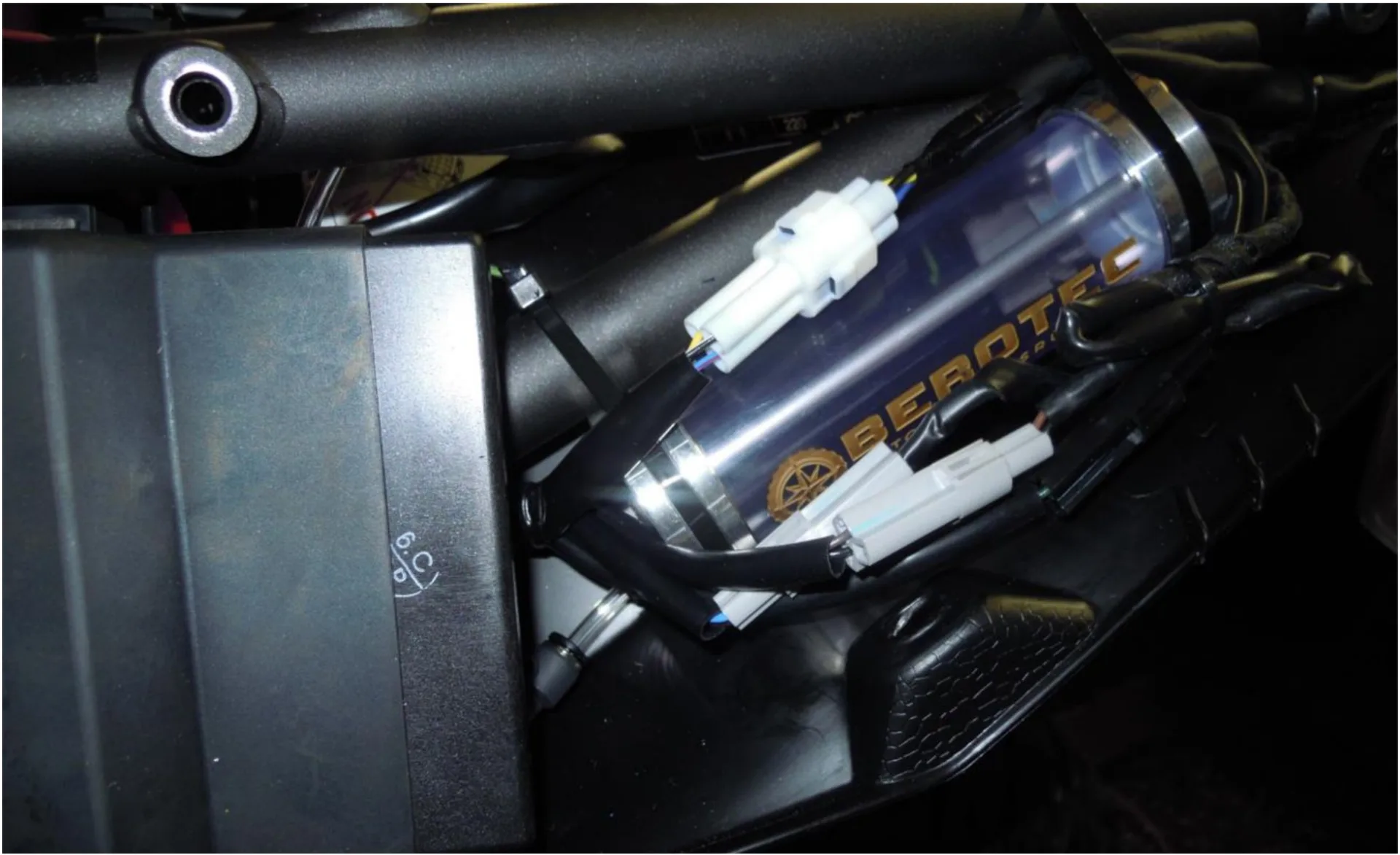

oil reservoir 120 ml
Attached with a cable tie on the left-hand side of the subframe, by the ECU under the fairing. The level can be checked by removing the pillion seat.

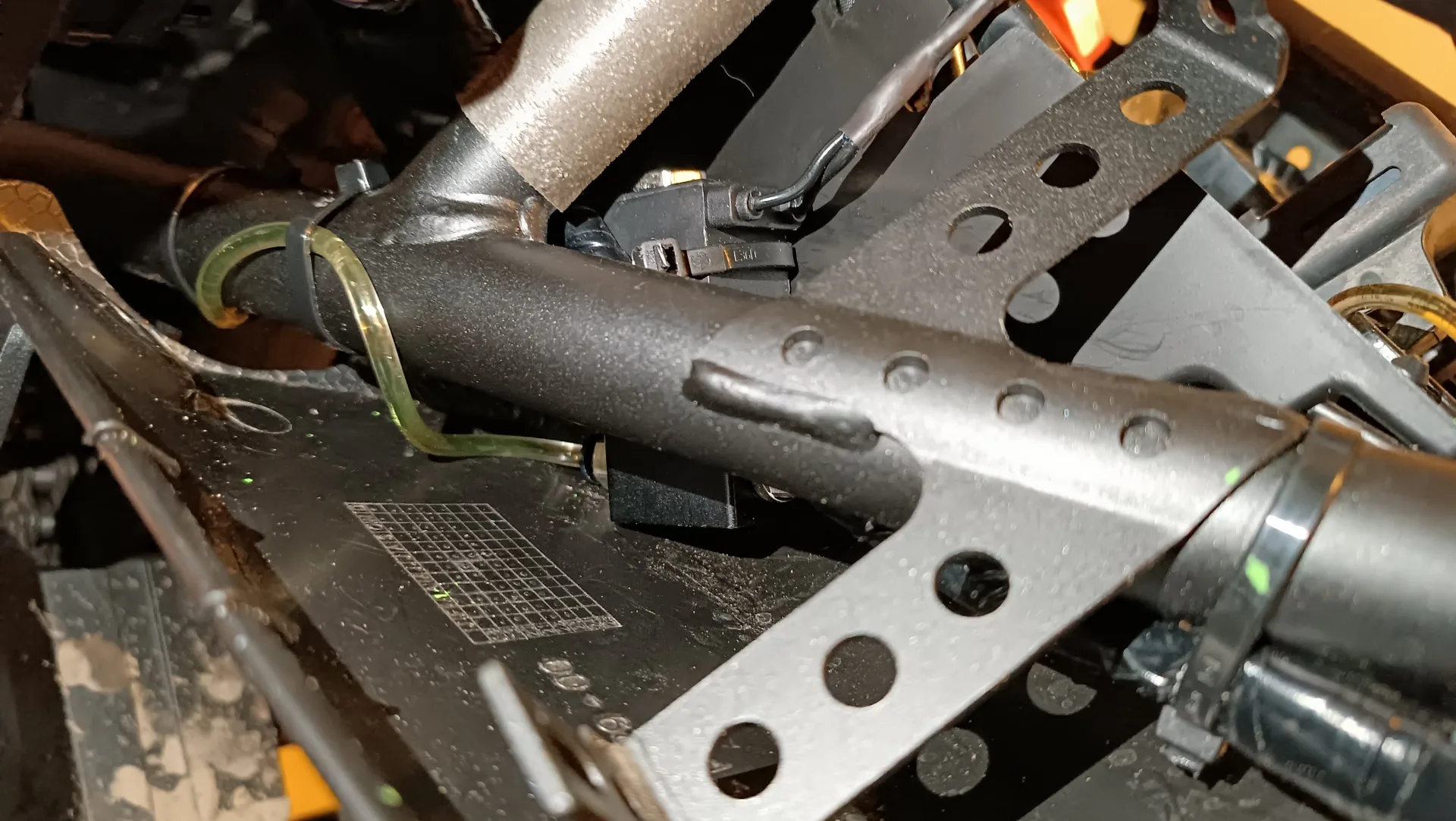

metering valve
Metering valve attached with a cable tie on the left-hand side of the frame, below the ECU. Also under the side panel.
nozzle
At the rear sprocket, outer side
switched 12 V supply
Tapped at the ACC 2 at the front left under the fairing. Two fused positives and one negative are available here. (In my case the original connector was removed.)
rain switch
On the left-hand side of the handlebar
control unit
Under the pillion seat. The filler hose (approx. 30 cm) is loosely secured with a cable tie. When not in use it can be tucked under the fairing.
Installation report by Jürgen
Yamaha Ténéré 700 – year of manufacture 2019
oil reservoir 120 ml
Behind the battery, under the seat brace (CAUTION: route the cable ties underneath the seat brace!)
metering valve
Left frame triangle, behind the electronics box
nozzle
At the rear sprocket, outer side, on the top of the swingarm (so that the paddock stand does not damage anything)
switched 12 V supply
Rear frame section, left side: behind the white connector, onto the blue taillight wire with a branch connector (stock photo)
rain switch
On the left at the GPS mount (the clutch side is taken by the heated grips)
control unit
Behind the battery, under the seat brace
