Tachometer for the Renault Kangoo I (KC) 1.4
This installation report shows the CUMPAN fitted to the Renault Kangoo I (KC) 1.4 – with tachometer and oil temperature gauge.
Installation report by Forestier

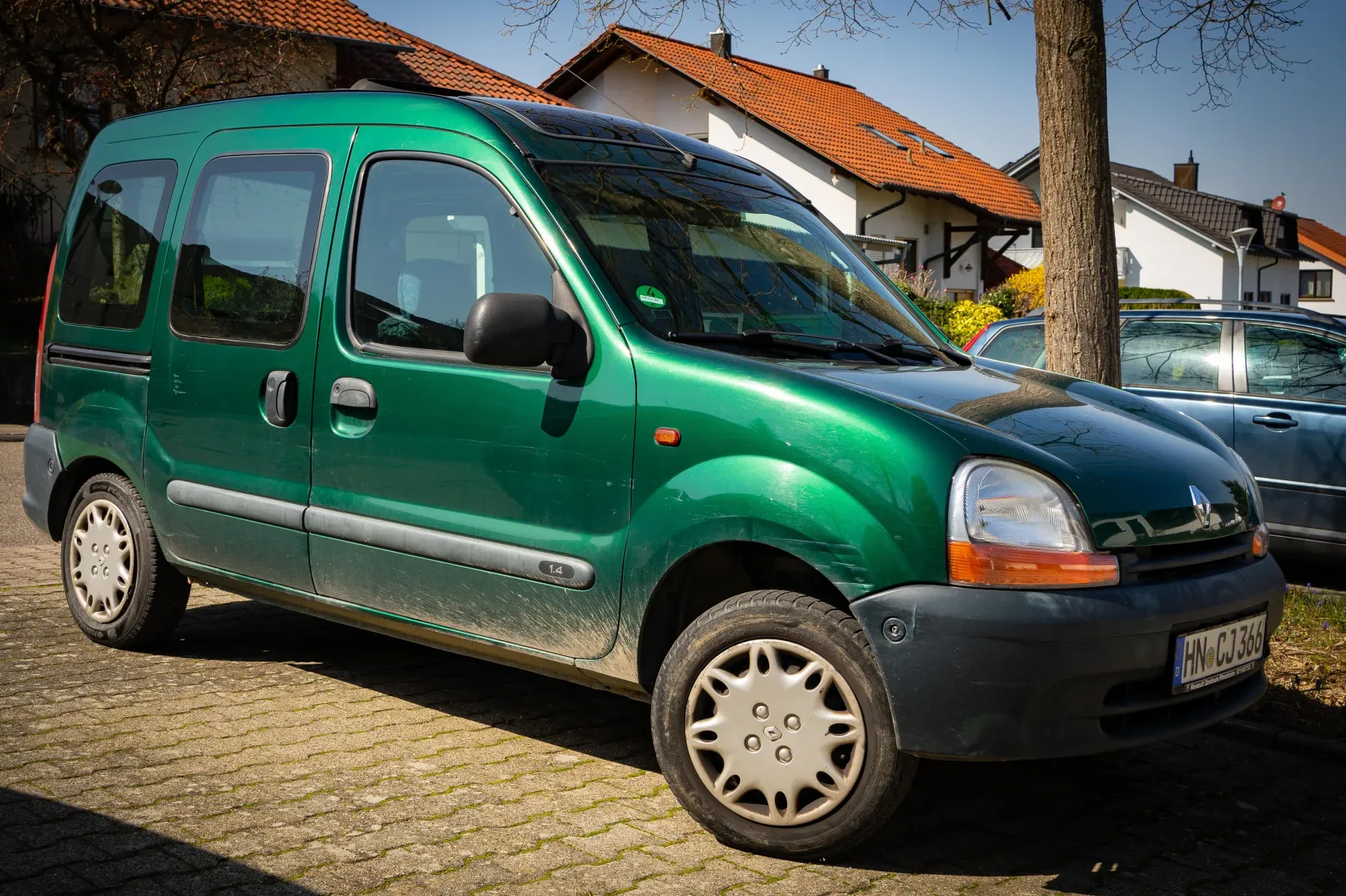

Renault Kangoo I (KC) 1.4 – year of manufacture 2000
This is how Forestier solved the installation – unfortunately we cannot guarantee that it works correctly, as we were not able to check the installation ourselves.
Display
Attached to the centre console with double-sided tape.
Power supply

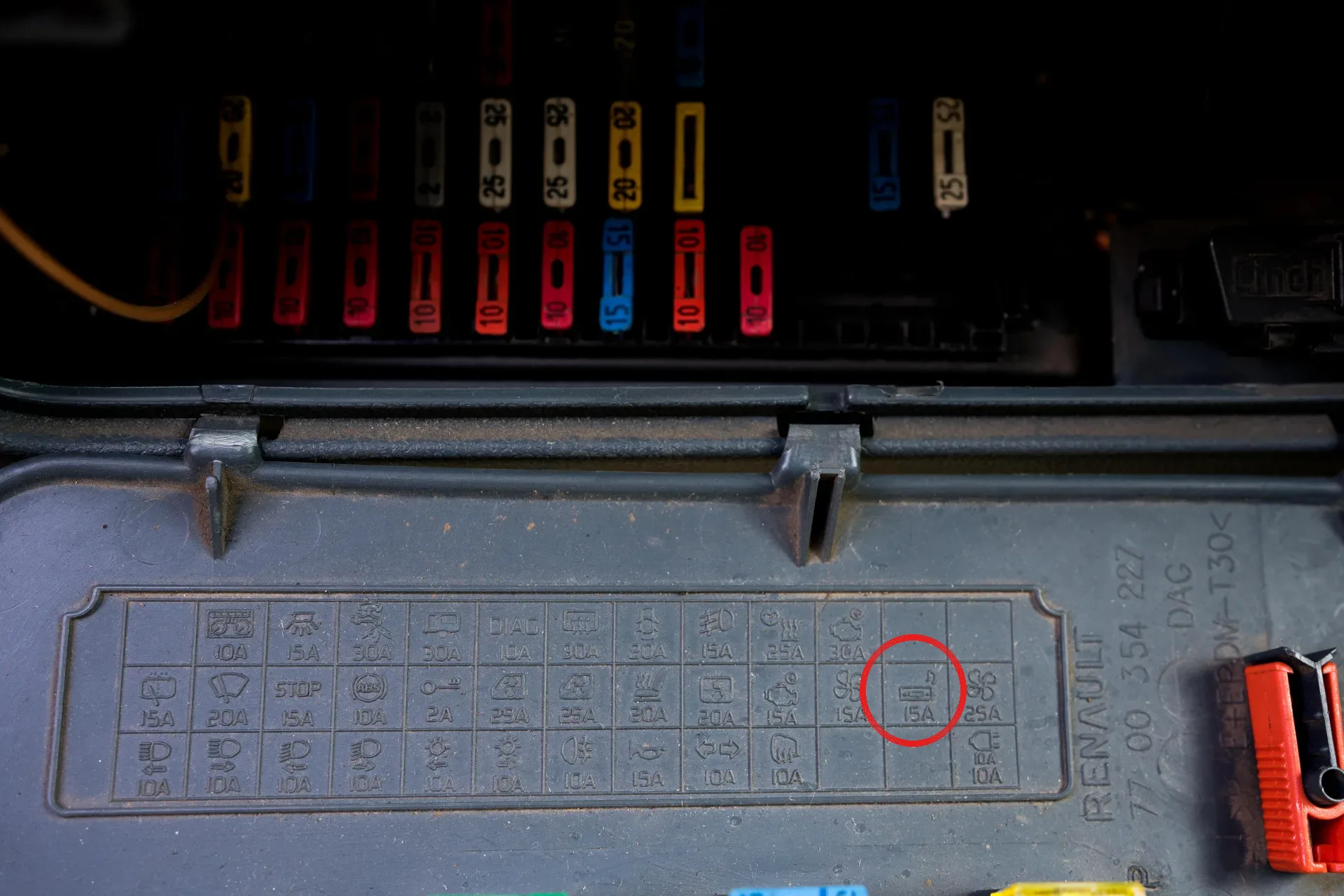

Power was clamped onto the fused cigarette lighter wire (15 A) as well (+12 V).
Engine temperature 1

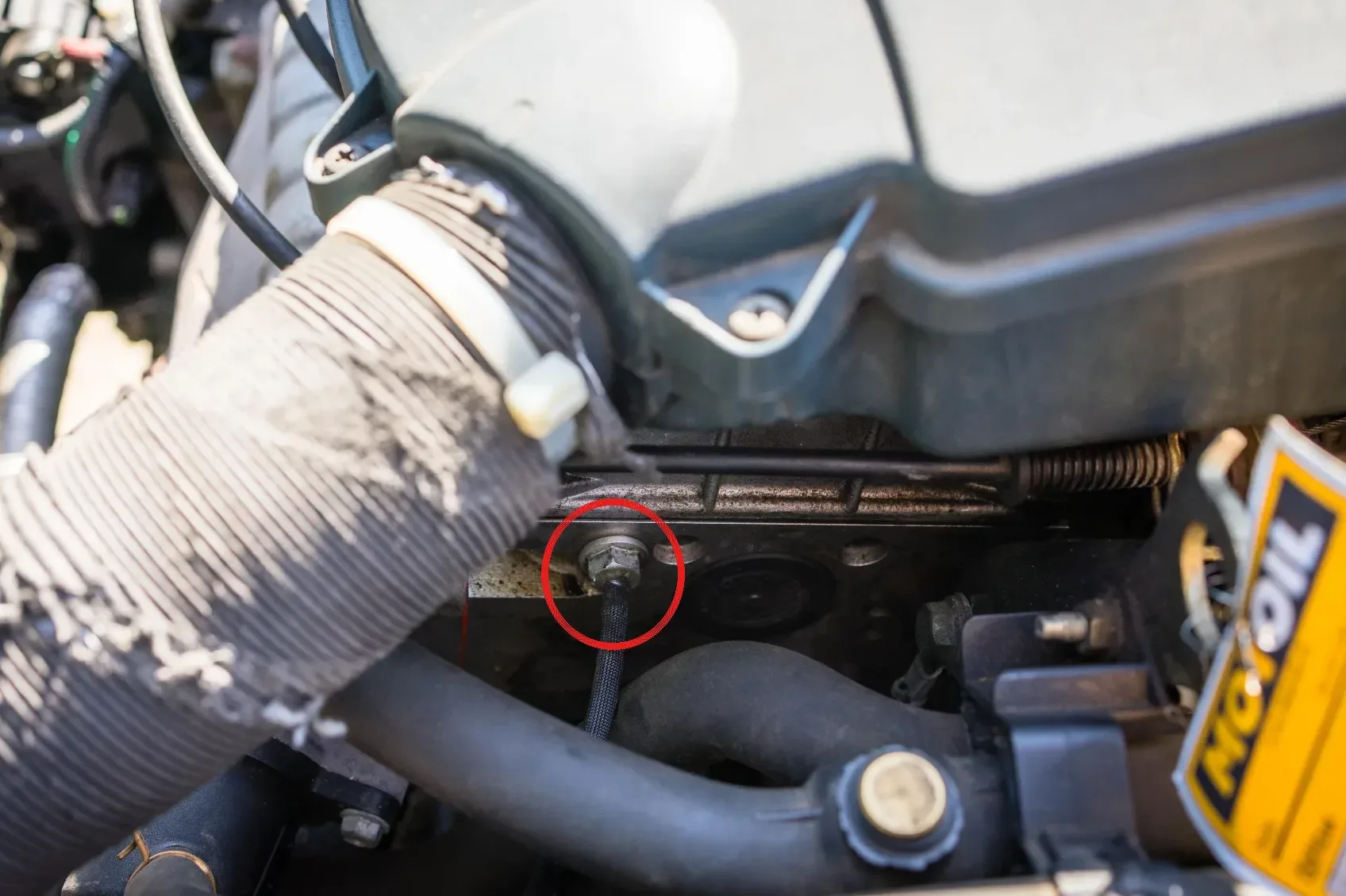

Temperature sensor for the oil temperature gauge.
Sensor used: M8×1,25
Replaces an existing M8 bolt in the cylinder head that only serves as a plug. On the left-hand side of the engine in the direction of travel.
RPM
Tapping the RPM signal for the tachometer.
[SENS] setting: Sensor CAR

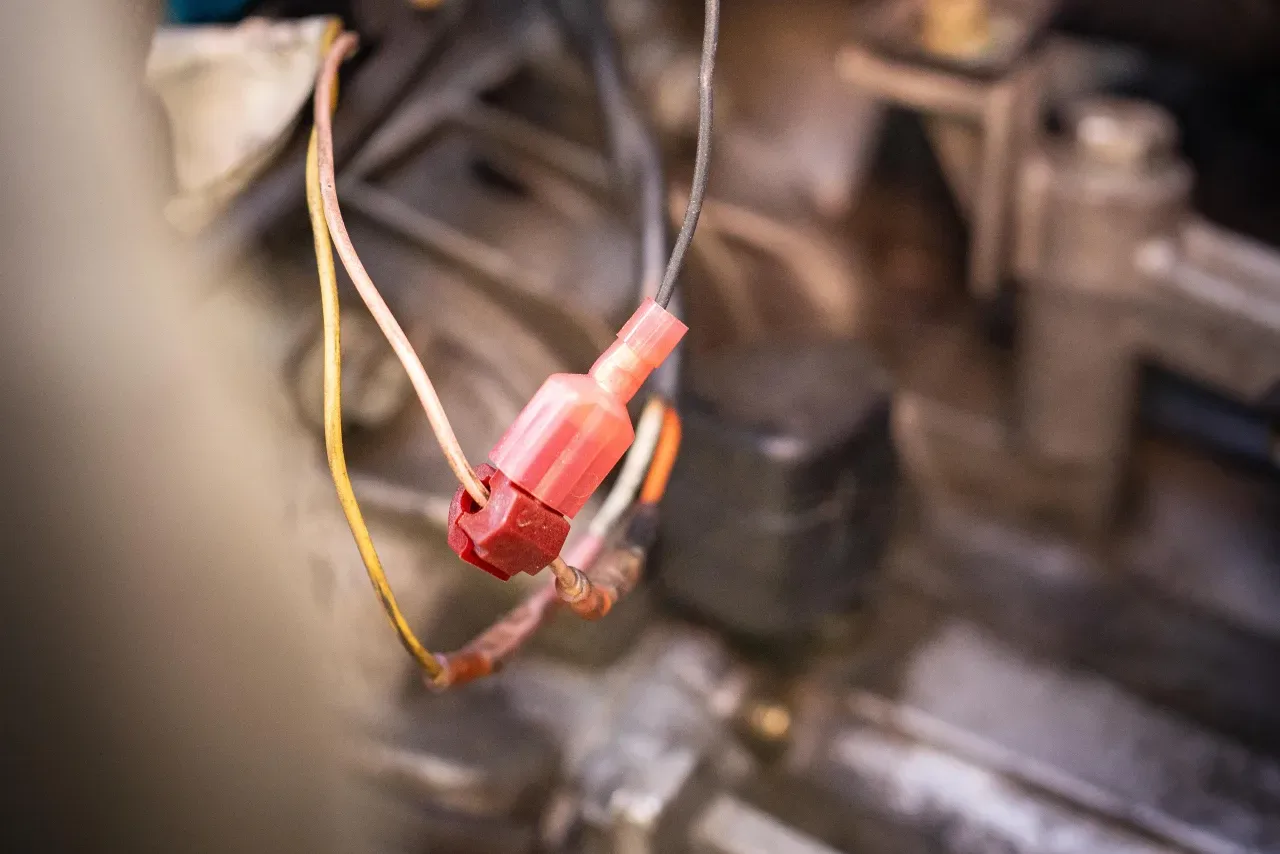

The signal from the crankshaft position sensor (between engine and gearbox) is tapped at the sensor’s pink wire.
