Chain oiler for the Ducati Multistrada V4 S
Installation report by MultivVau4
Ducati Multistrada V4 S – year of manufacture 2023

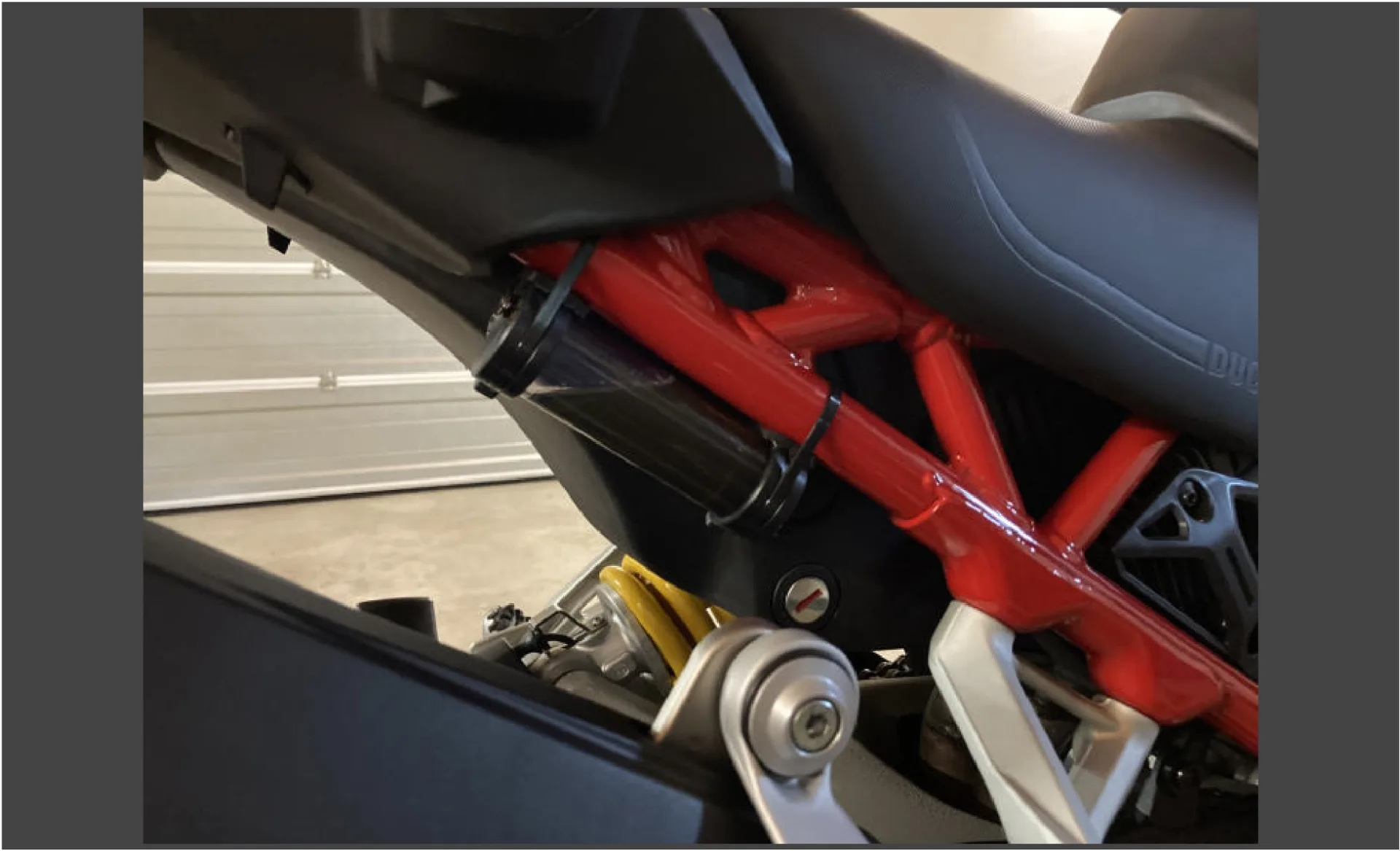

oil reservoir 60 ml
On the frame on the right side, below the rider’s seat. The oil line runs back in a 90-degree bend towards the pillion seat and to the metering valve there.
metering valve
On the black box under the tail section. Unscrew the locking mechanism for the pillion seat and undo the six bolts of the tail, then pull off the connector for the onboard socket. Support the licence plate holder with its guard from below! Attach the metering valve to the rubber sheathing of the black box with cable ties.
nozzle
At the rear sprocket, outer side, hose attached with the supplied special nozzle bracket and an additional M5 bolt to the inside of the lower chain guard.

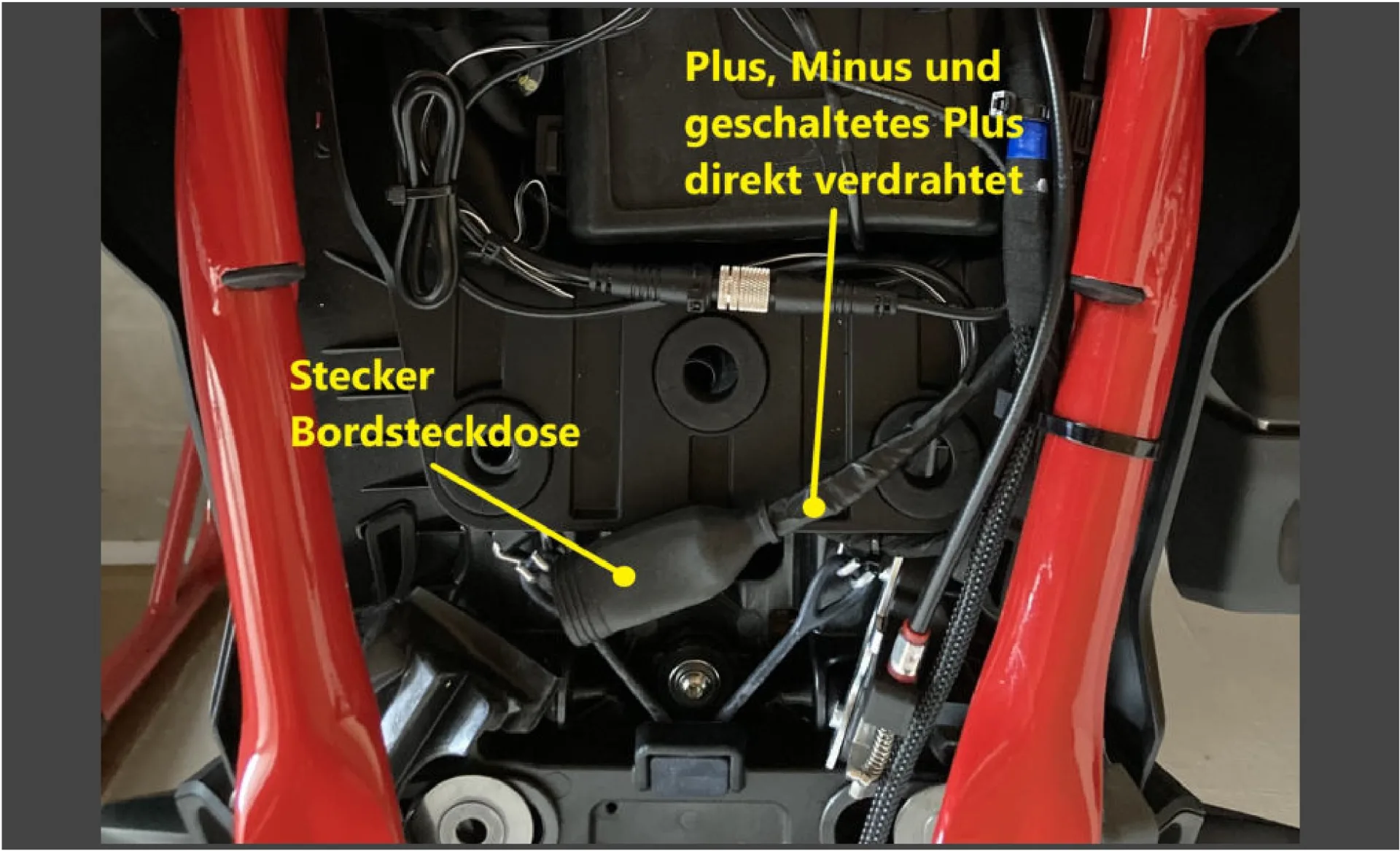

switched 12 V supply
Hard-wired to the connector for the onboard socket at the rear.
rain switch
On the right-hand side of the handlebar. The rain switch cable runs on the right under the fuel tank and comes back out at the lower end of the tank panel on the right, from where it can be routed under the seat towards the control unit. The cable was pulled down from above along the existing cables with the help of a wire.
control unit
Slotted into a free rubber tab of the black box next to the metering valve, so that the control unit can still be operated at any time once the seat is removed.
