Chain oiler for the Honda NC750S
Installation report by Harry A

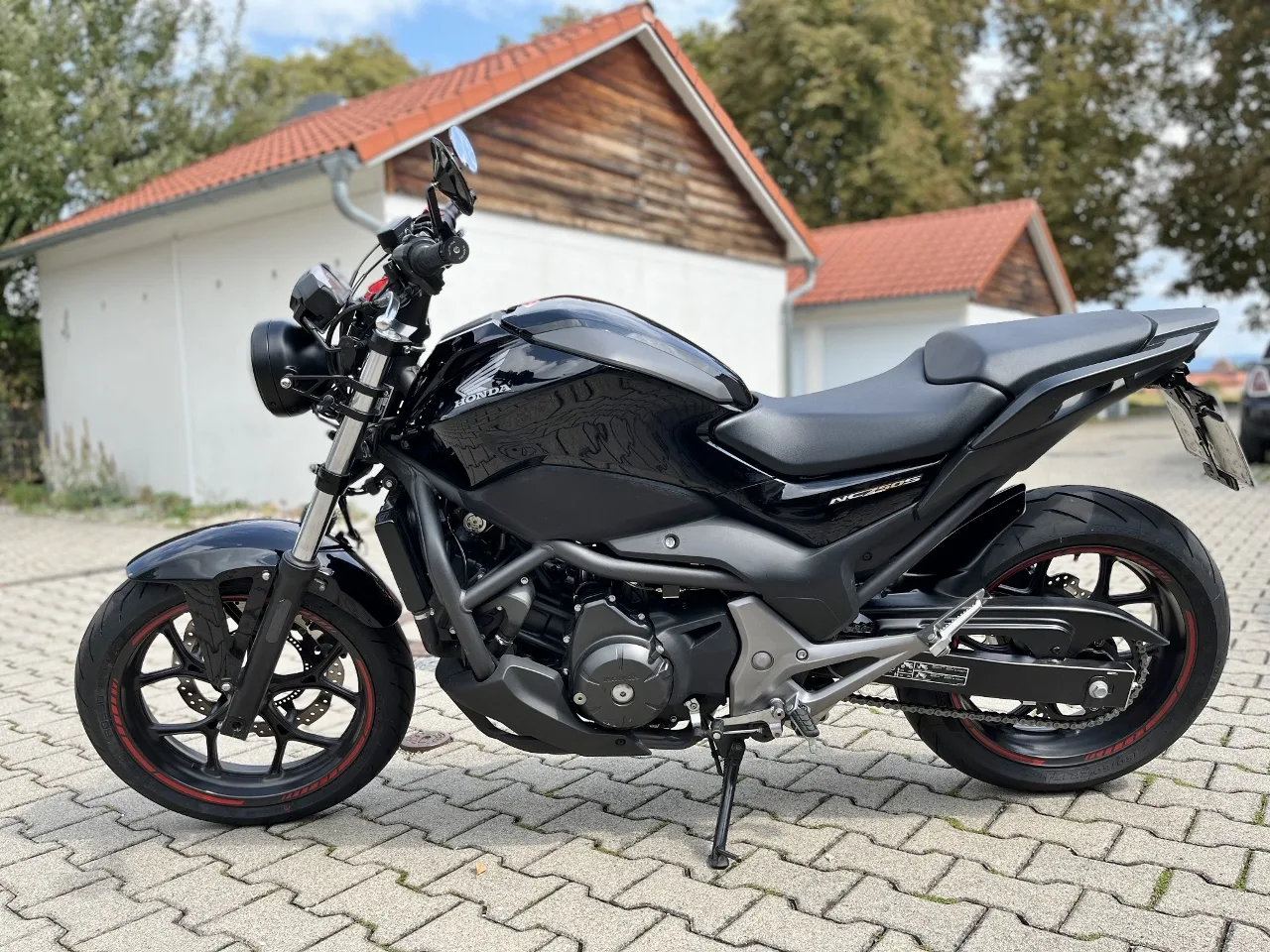

Honda NC750S – year of manufacture 2014
oil reservoir 60 ml
Attached in the storage compartment (dummy tank) with cable ties. Four holes were drilled in the inner panel for this. The hose is routed through a hole in the inner panel to the T-piece (filler hose / metering valve).
metering valve
Attached to the frame with cable ties.

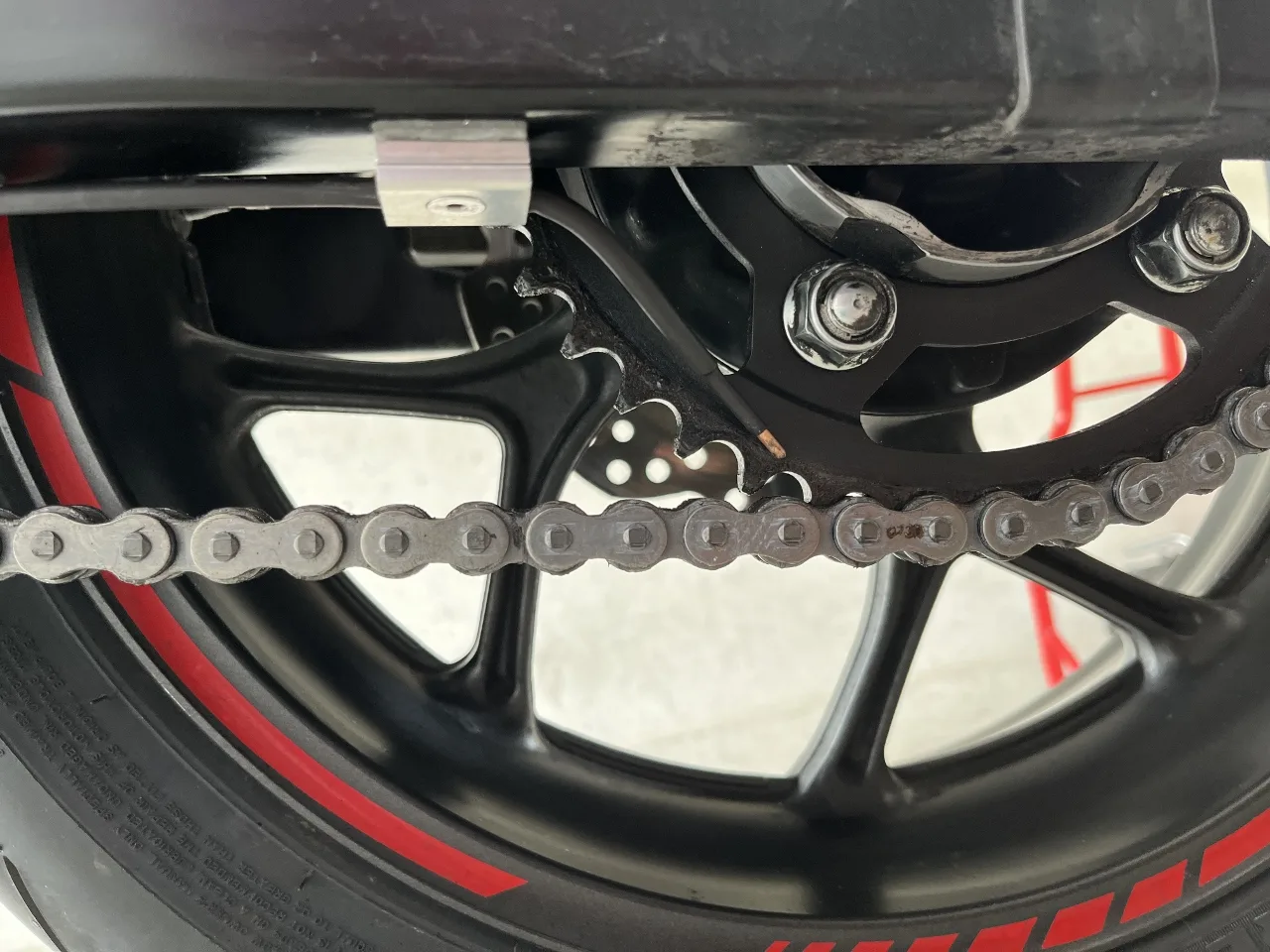

nozzle
At the rear sprocket, outer side; the hose is routed along the bottom of the frame and forward to the metering valve.

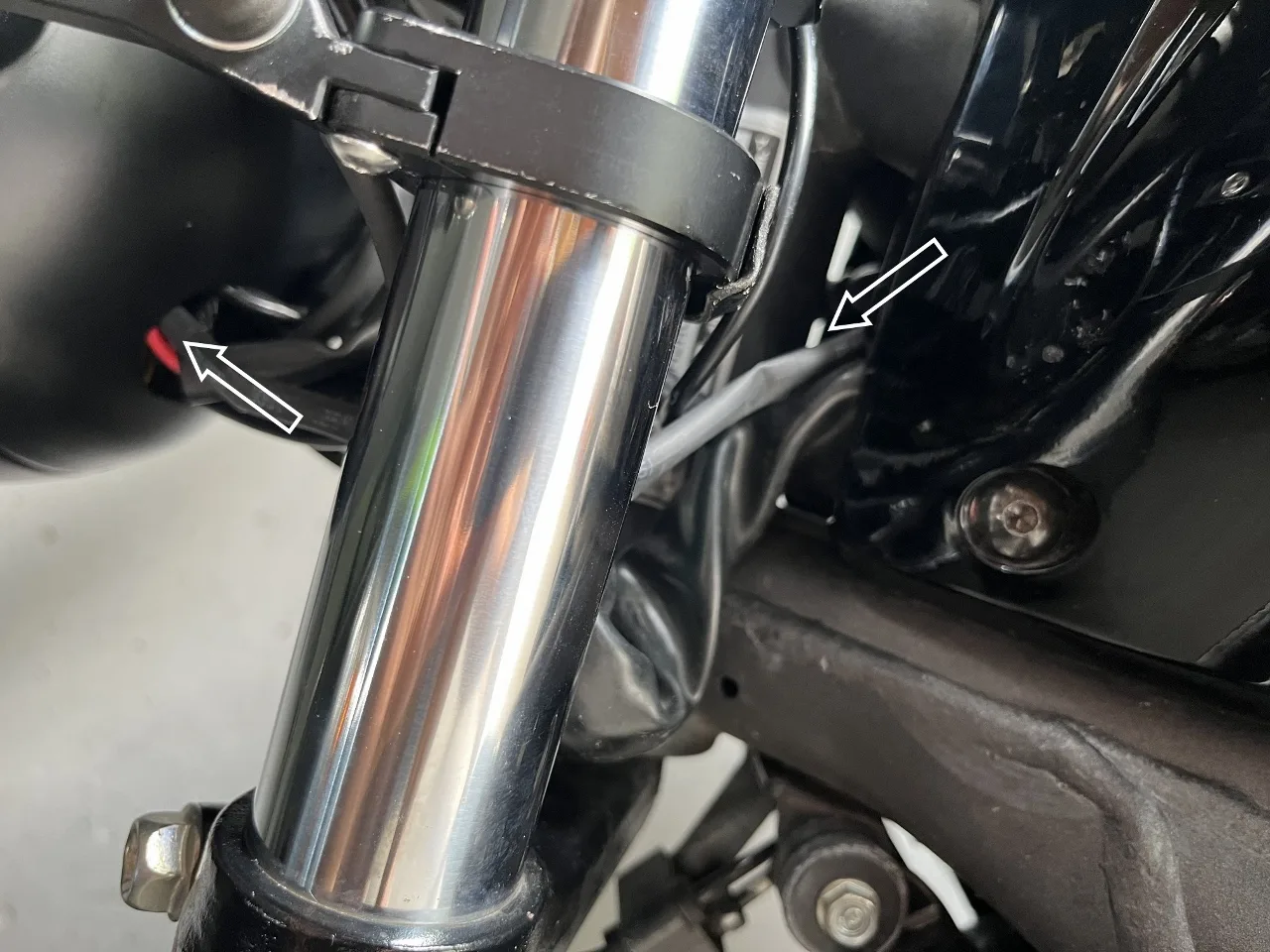

switched 12 V supply
Routed forward from the fairing into the headlight and connected to the position light.
rain switch
On the left-hand side of the handlebar
control unit
Above the battery in the storage compartment. The cables from the rain switch and the metering valve run between the outer panel and the compartment. The filler hose is likewise routed behind the battery compartment cover.
