Chain oiler for the Kawasaki ZRX1200S
2 installation reports for this model
Installation report by Paul
Kawasaki ZRX1200S – year of manufacture 2002
oil reservoir 60 ml
Under the rear fairing, on the right-hand side of the frame (with the variable reservoir vent fitted in addition)

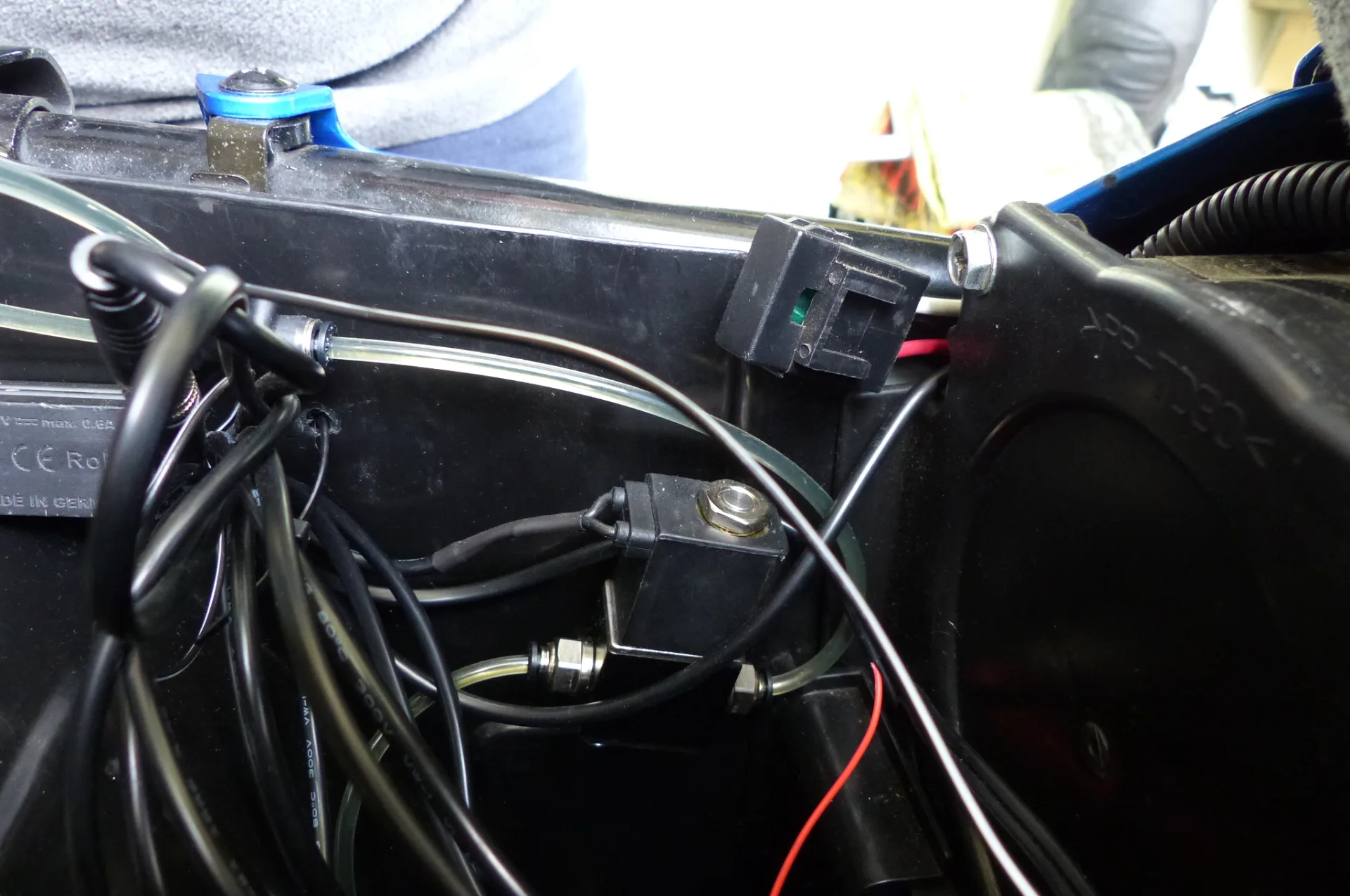

metering valve
Under the seat, on the left in the direction of travel.

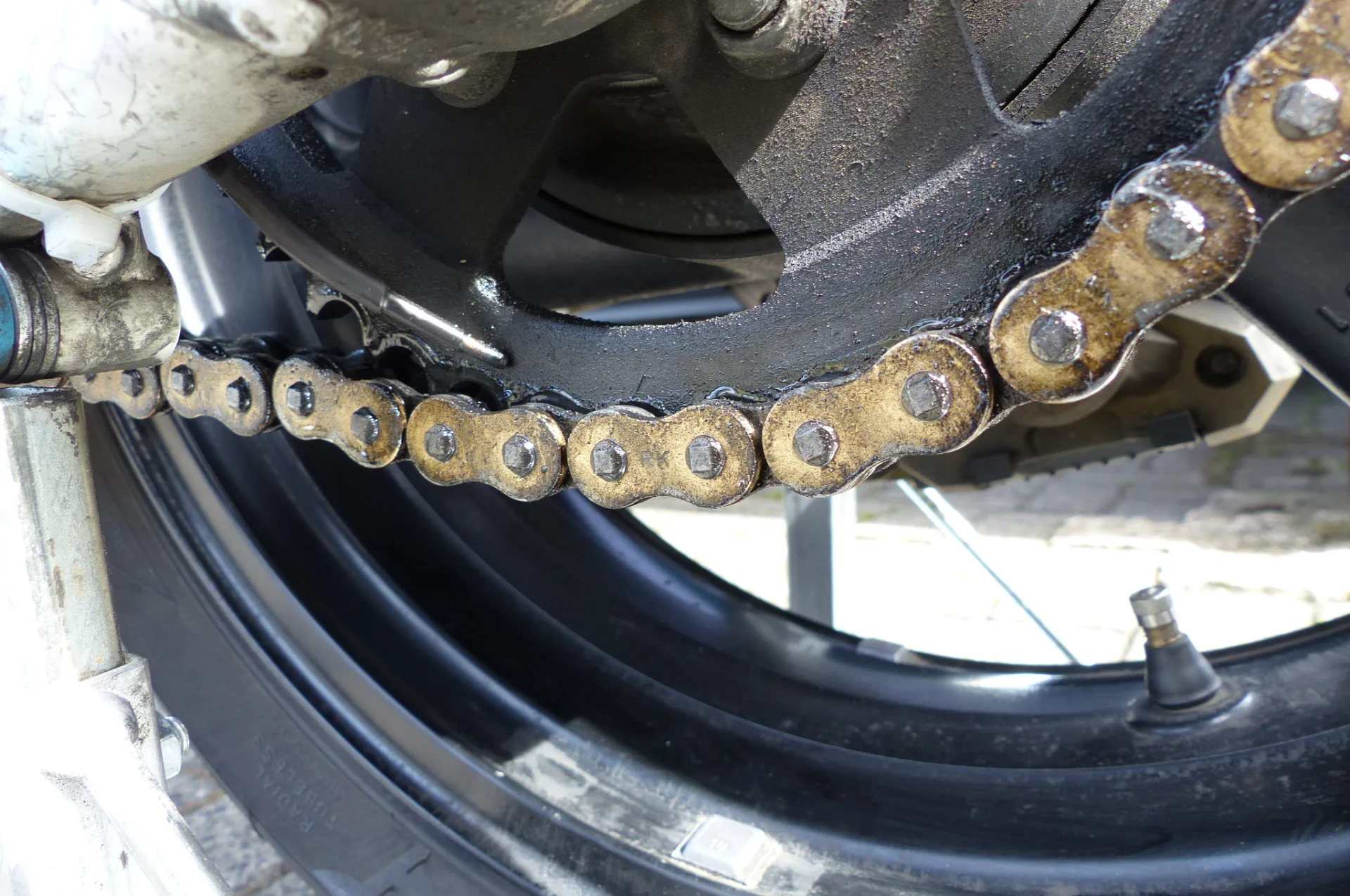

nozzle
At the rear sprocket, outer side, hose on the inside of the swingarm.
switched 12 V supply
On the right in the direction of travel, at the horn wire.
rain switch
On the left-hand side of the handlebar
control unit
Under the seat.
Installation report by Mark
Kawasaki ZRX1200S – year of manufacture 2001
oil reservoir 60 ml
Under the rear fairing, on the left-hand side of the frame (with the variable reservoir vent fitted in addition)
metering valve
On the frame brace below the expansion tank.
nozzle
At the rear sprocket, outer side, hose attached with the adhesive brackets under the upper arm of the swingarm.
switched 12 V supply
Connected without any trouble to the switched positive of the horn using the cable connector specified by BEROTEC.
rain switch
On the left-hand side of the handlebar. I did not use the original bolt because it was too short for me. I routed the cables of the rain switch and the switched positive under the fuel tank as far as under the seat.
control unit
Under the seat, by the fuse box. I routed the cables for the battery voltage down into the battery compartment on the left side. Thanks to this installation the large compartment under the seat stays free and remains fully usable. I also did not have to drill any additional holes and the like.
