Chain oiler for the Suzuki V-Strom 800DE
Installation report by Flo
Suzuki V-Strom 800DE – year of manufacture 2023
oil reservoir 60 ml
Under the rear fairing, on the left-hand side of the frame. The variable reservoir vent was also fitted and routed to the rear towards the option connector. The hose was laid inwards, to the left of the battery.

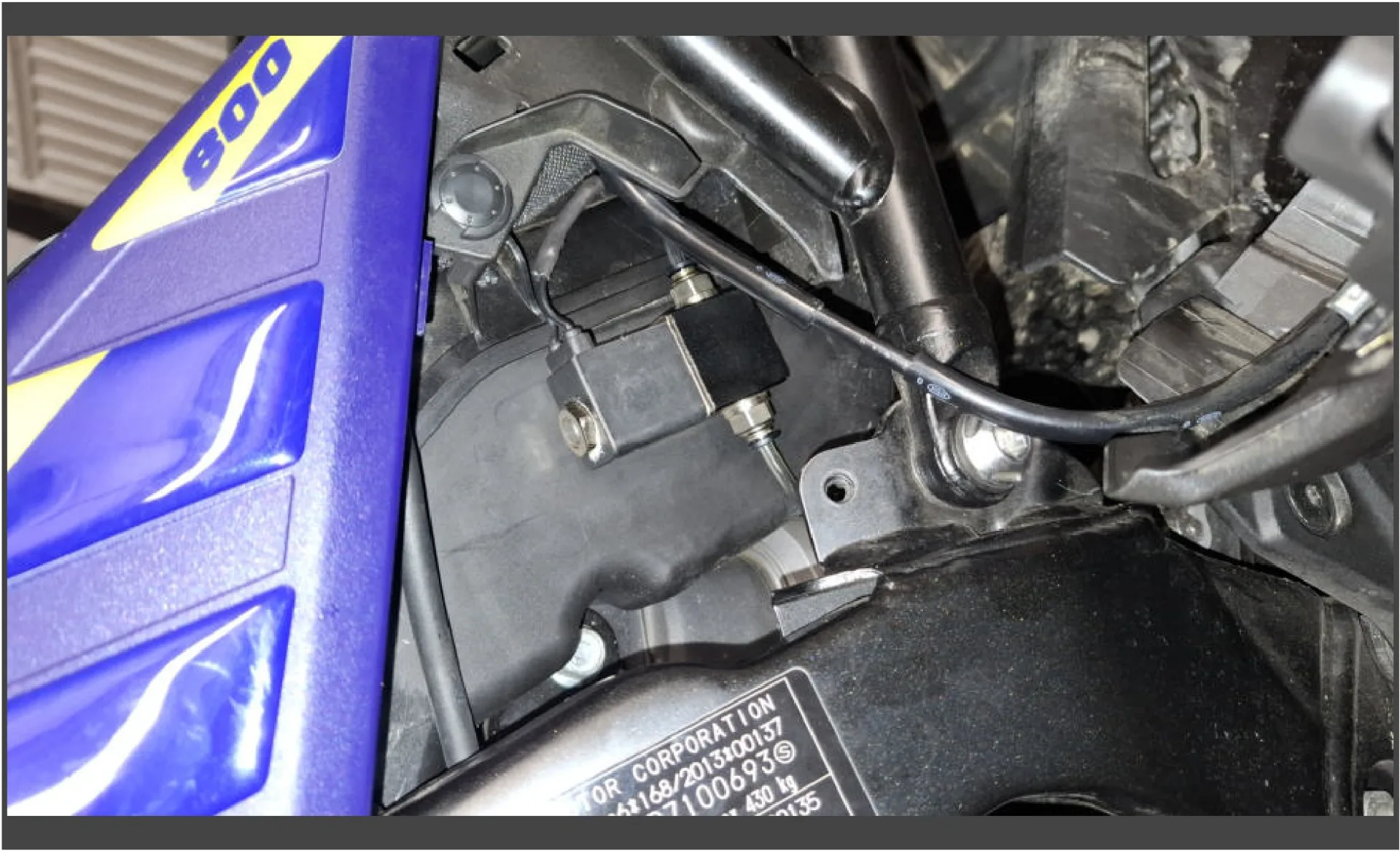

metering valve
On the left behind the side panel (behind the lock that opens the seat latch), attached to the airbox with Dual Lock fastener tape. A small lower corner was also cut out of the plastic cover of the seat latch so as not to pinch the hose.
nozzle
At the rear sprocket, outer side, hose pulled through the hollow swingarm on the inside.
switched 12 V supply
At the rear, under the rear fairing, the unused option connector (for a socket, for example) was used. An accessory plug (from the V-Strom forum) was fitted and the switched positive connected through it.
rain switch
On the right-hand side of the handlebar
control unit
Fitted under the seat with hook-and-loop tape on the free area of the plastic cover
