Chain oiler for the Honda NT1100
2 installation reports for this model

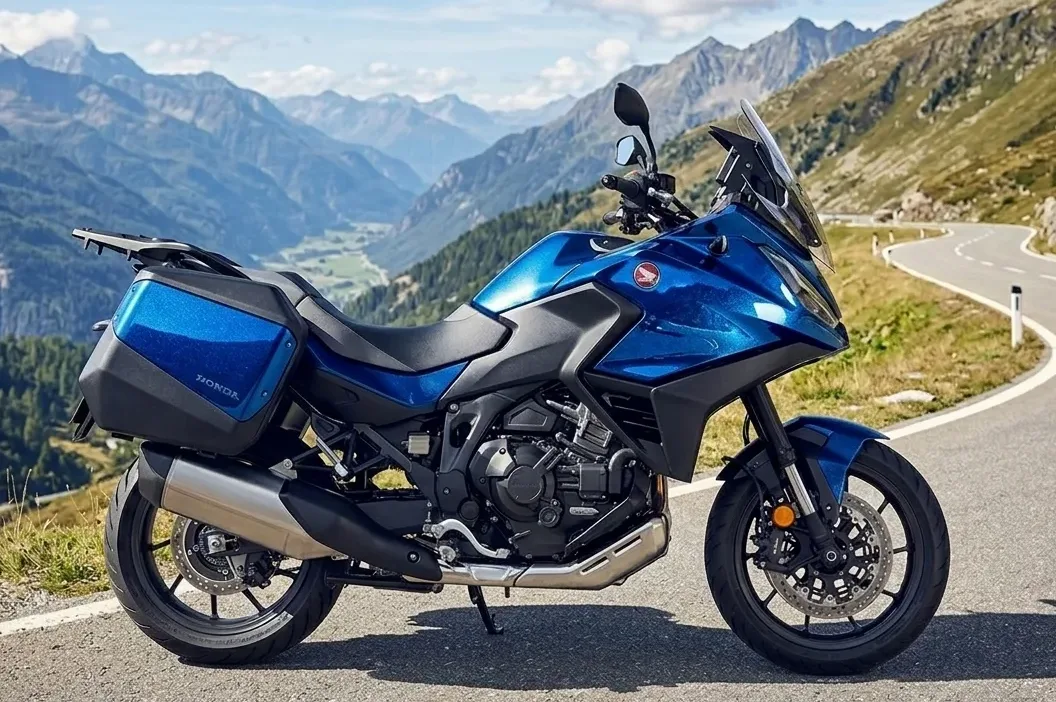

Installation report by Chris
Honda NT1100 – year of manufacture 2026
oil reservoir 60 ml
Attached to the frame with cable ties.
metering valve
Just run it under the seat along with all the other wires. There's plenty of room there!
nozzle
Secure it to the swing arm using the bracket, and route the hose through the hose clamps.
switched 12 V supply
It comes directly from the diagnostic connector that you manufacture.
rain switch
Attach it to the rear swingarm, route it to the fork using cable ties, and then into the interior of the side fairing.
control unit
It is also located beneath the seat in the large room.

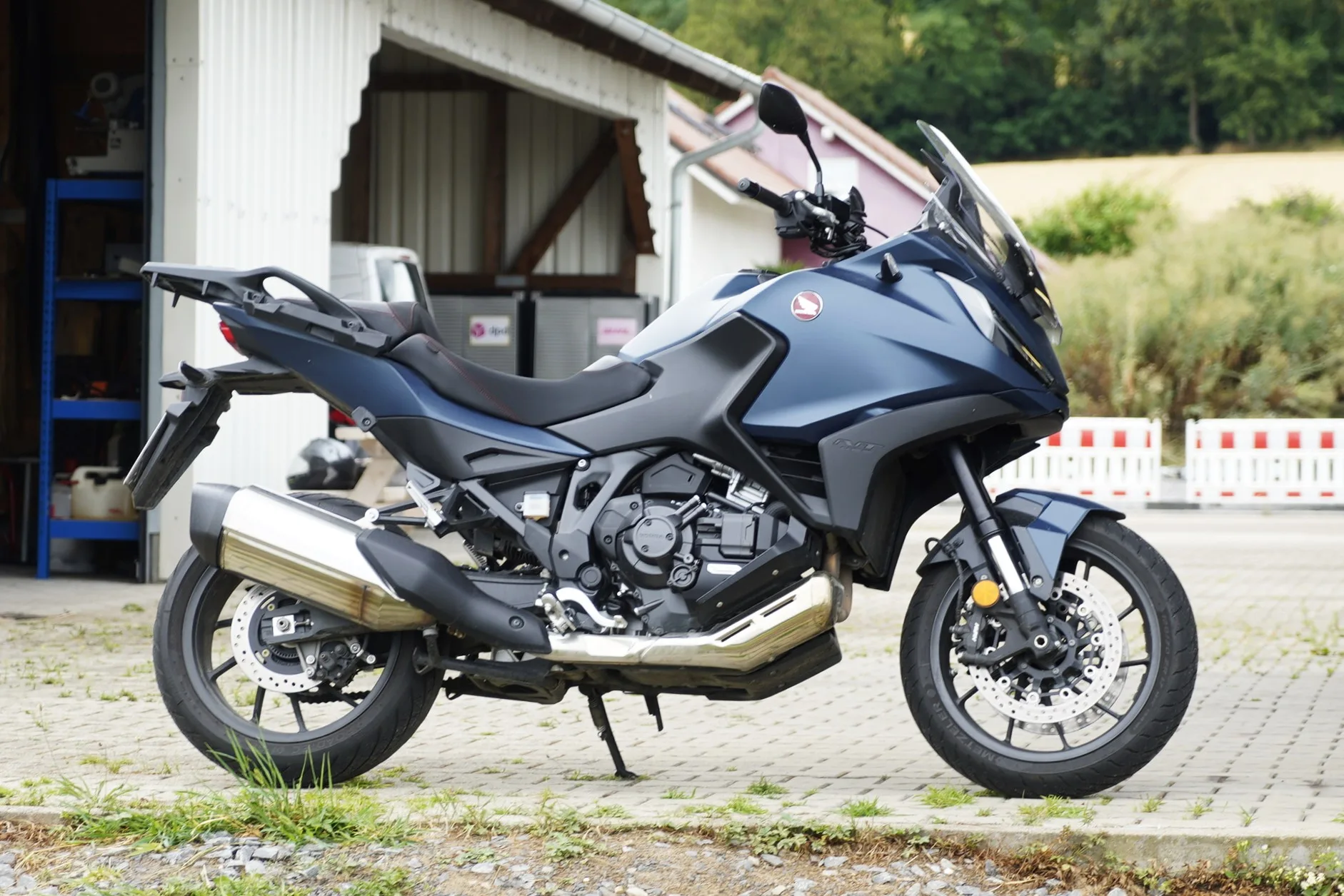

Installation report by PK
Honda NT1100 – year of manufacture 2024
oil reservoir 60 ml
Attached to the frame under the pillion seat
metering valve
Behind the side panel, on the left-hand side of the frame. The supplied stainless steel bracket was used.
nozzle
At the rear sprocket, outer side.
switched 12 V supply
Connected under the pillion seat to the diagnostic connector (red) with a mating plug.
rain switch
On the left-hand side of the handlebar
control unit
Under the pillion seat – cable and control unit beneath the mounting of the onboard toolkit.
