Chain oiler for the Kawasaki W650
2 installation reports for this model
Installation report by Torsten
Kawasaki W650 – year of manufacture 1999
oil reservoir 120 ml
Oil reservoir under the seat
metering valve
Also under the seat
nozzle
At the front sprocket, outer side
switched 12 V supply
Tapped under the seat at the taillight connector (red wire)
rain switch
On the left-hand side of the handlebar
Installation report by Manuel
Kawasaki W650 – year of manufacture 1999
oil reservoir 60 ml
Under the seat, at the rear end of the storage compartment, crosswise to the direction of travel. Variable reservoir vent routed to the rear towards the onboard toolkit.
metering valve
Under the seat, on the left side of the storage compartment.
nozzle
Dual lubrication at the rear sprocket via an adapter mounted on the chain guard. The mounting bolt of the dual nozzle was shortened so that it does not foul the silencer (photo without the exhaust system).
switched 12 V supply
Tapped to the left of the storage compartment on the red wire (taillight positive) with a Japanese-type connector.
rain switch
On the left-hand side of the handlebar, mounting plate painted black.

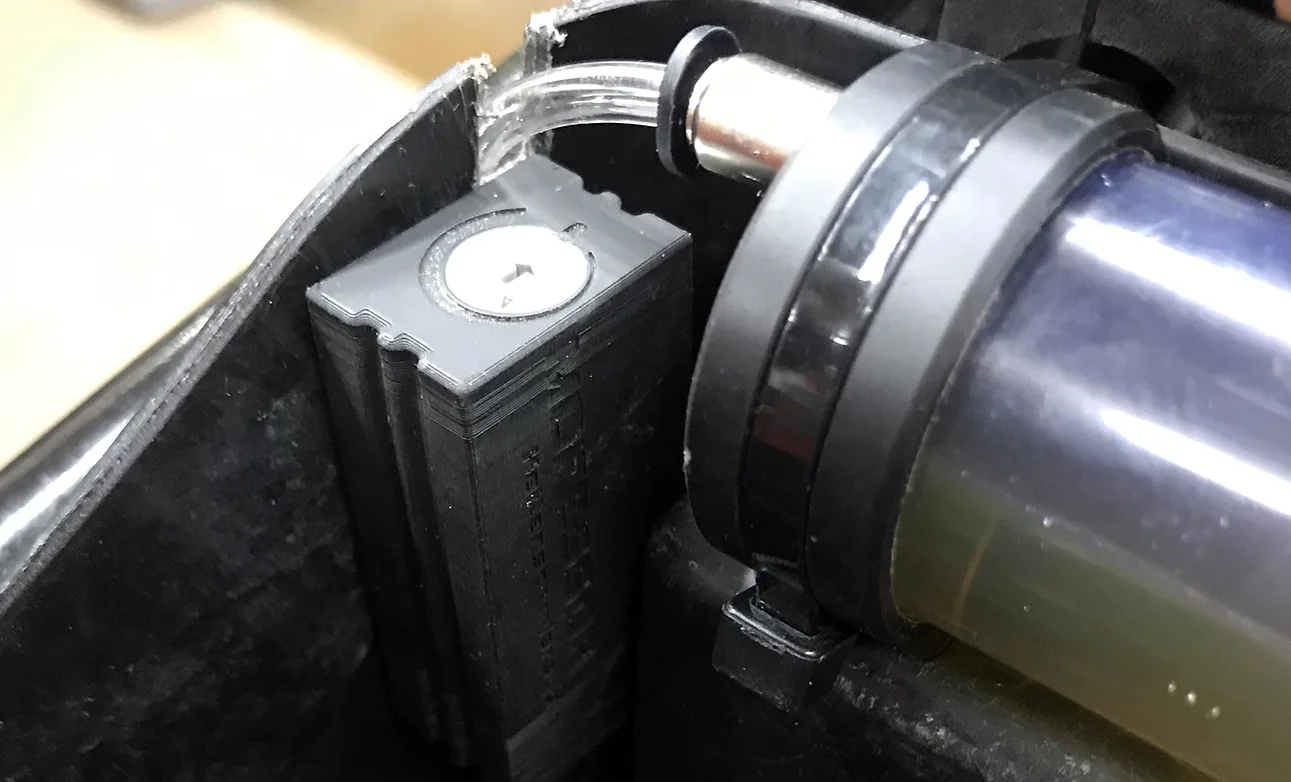

control unit
Under the seat, secured at the rear left end of the storage compartment with double-sided tape. Mounted upright so that the interval can be changed easily at any time.
