Chain oiler for the KTM 390 Adventure
2 installation reports for this model
Installation report by Georg Bäumel
KTM 390 Adventure – year of manufacture 2023
oil reservoir 60 ml
Under the rear seat, between the tools and the fuse
metering valve
In the side cover and next to the battery. Solenoid valve padded all round with Armaflex.
nozzle

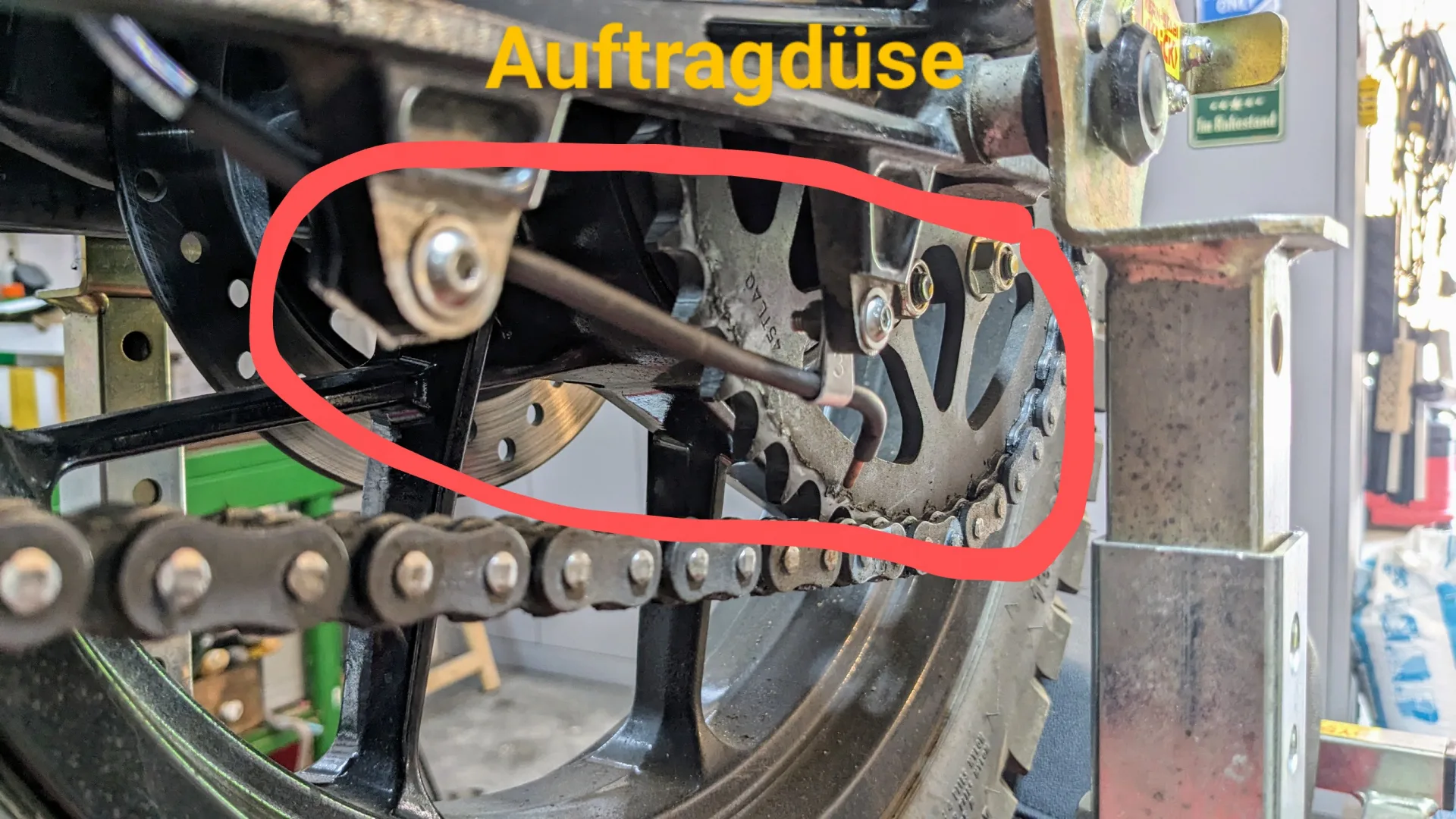

At the rear sprocket, outer side, hose routed on the inside through the chain guard
switched 12 V supply
The switched positive was tapped at the ACC2 under the tail unit
rain switch
On the left-hand side of the handlebar
control unit
Attached to the airbox under the seat with hook-and-loop tape. Positive and negative connected directly to the battery. The black and yellow part is a battery charging connector.
Installation report by Peter
KTM 390 Adventure – year of manufacture 2020
oil reservoir 60 ml
Position in the tool compartment
metering valve
Inserted in front of the battery
nozzle
Nozzle above the front sprocket; it was not fitted at the rear sprocket because of the risk of damage in off-road use. So far (400 km) the chain is well wetted, hardly any oil on the rim. Fitting the oil nozzle to the side of the front sprocket is awkward because the sprocket is rubber-coated; after switching to a 14-tooth sprocket without rubber coating this works without any problem.
switched 12 V supply
Tapped at the ACC connection in the tool compartment, two-tone grey-pink wire
rain switch
Mirror mount, left handlebar switchgear
control unit
On the battery, held by the battery retaining strap, oil position 4, oiling good
