Chain oiler for the BMW F 650 GS
4 installation reports for this model
Installation report by Hermann
BMW F 650 GS – year of manufacture 2012
oil reservoir 60 ml

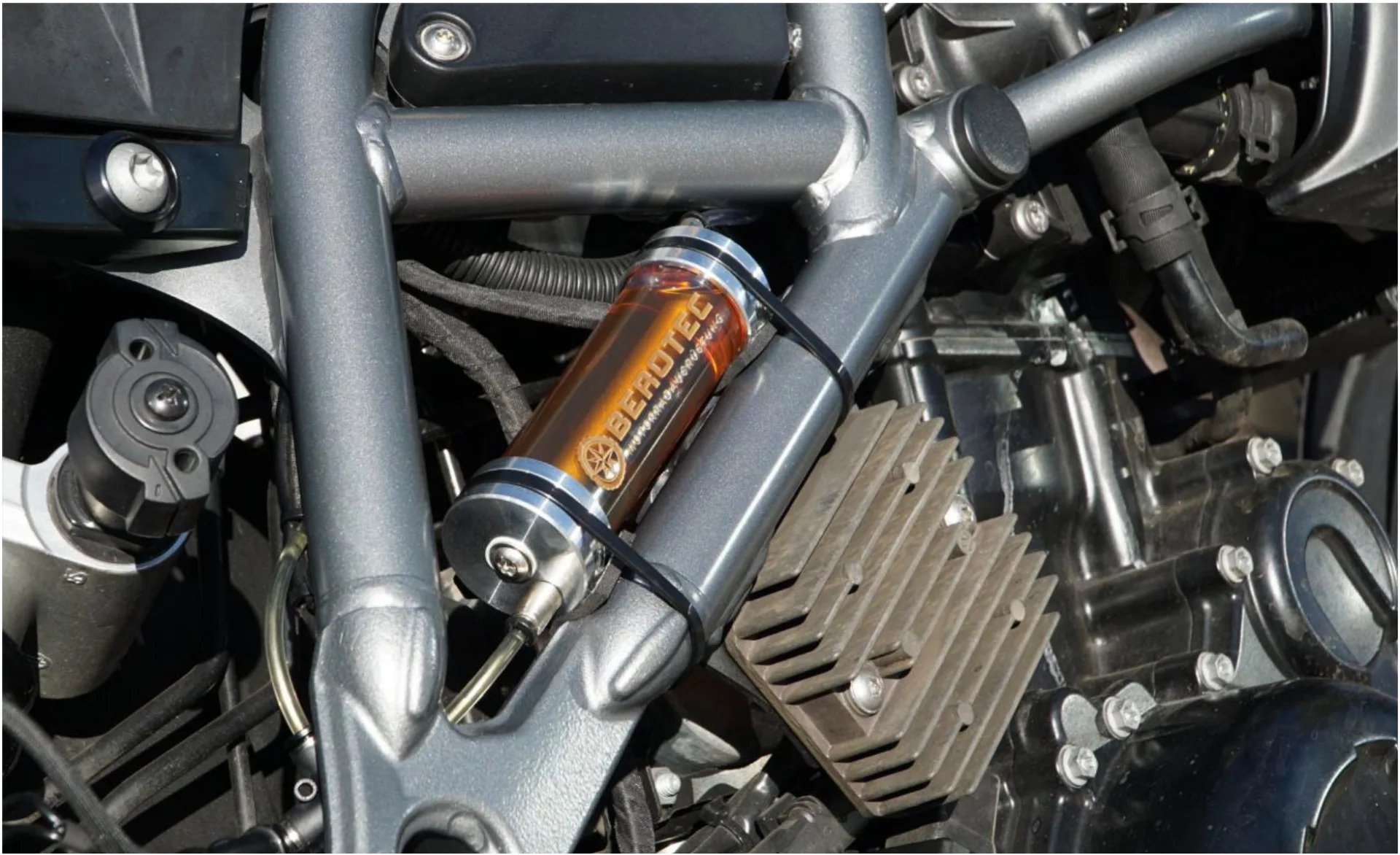

On the right-hand side of the frame, above the regulator/rectifier (with the variable reservoir vent fitted in addition)
metering valve

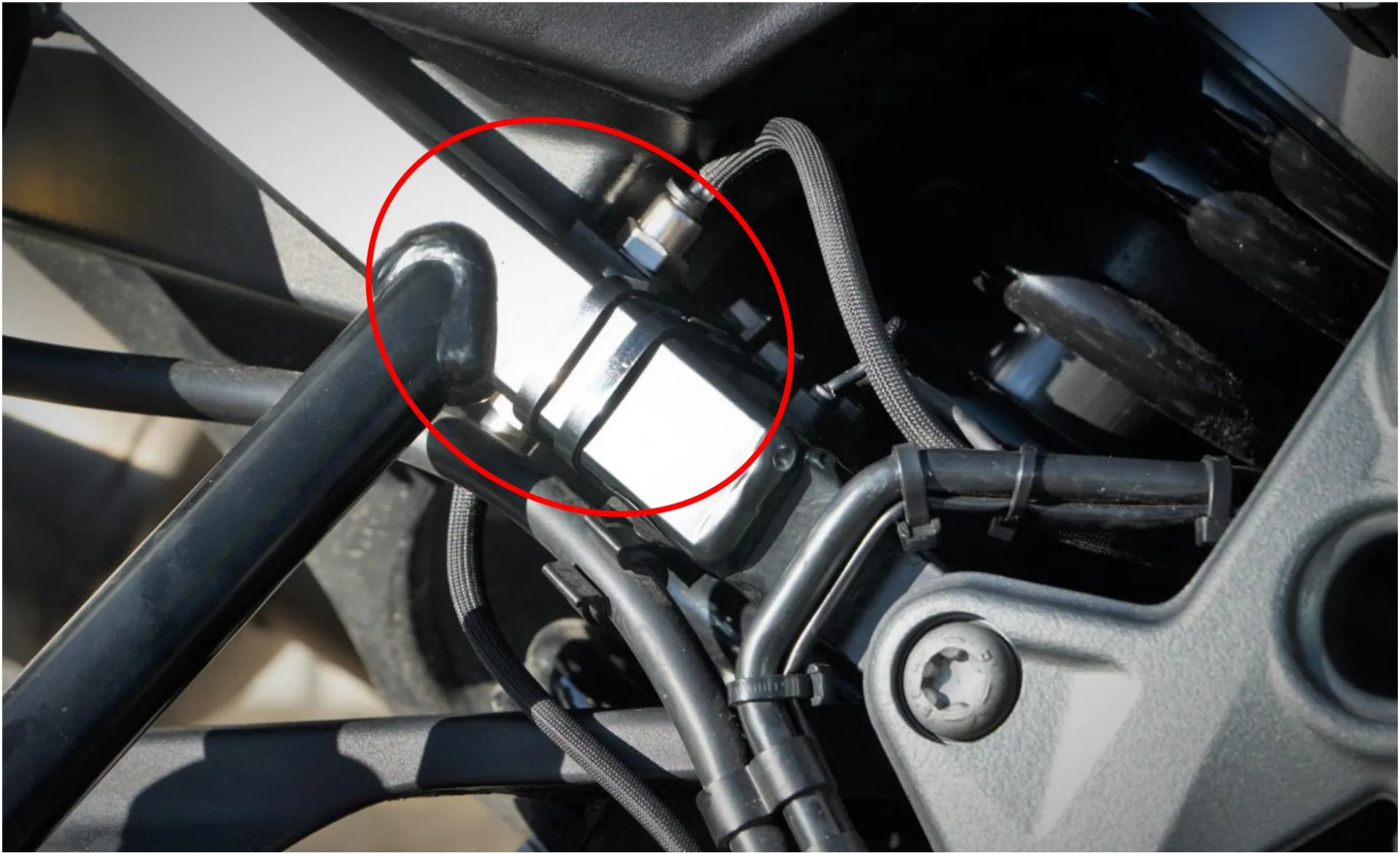

On the inside right of the subframe; the heat protection sleeve was fitted as well
nozzle
At the rear sprocket, outer side – bracket attached to the inside of the swingarm
switched 12 V supply
Connected to the existing accessory connection using the Cartool plug
rain switch
On the right-hand side of the handlebar
control unit

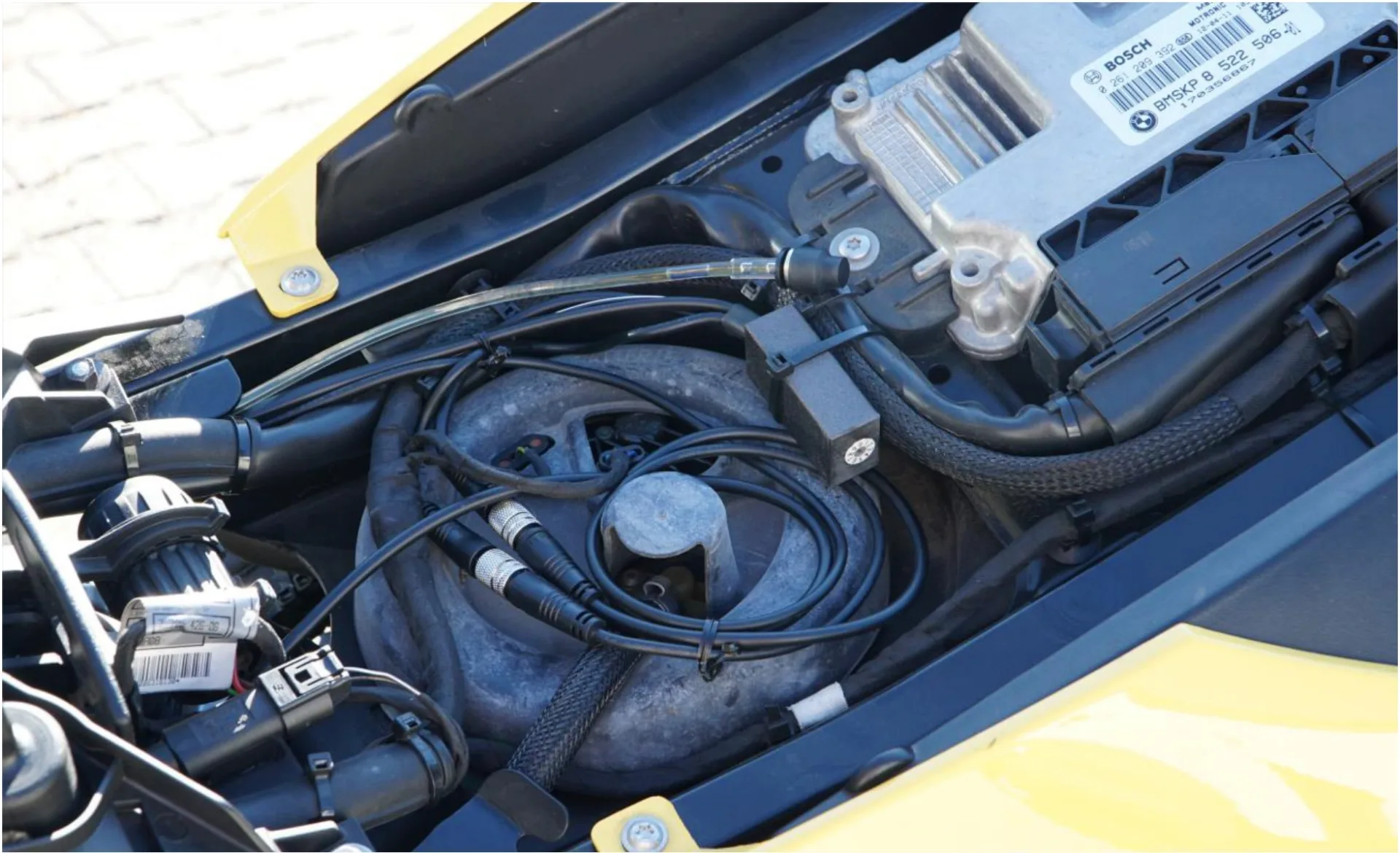

Under the seat
Installation report by Franjo
BMW F 650 GS – year of manufacture 2011
oil reservoir 60 ml
At the rear, on the right in the direction of travel, under the seat, with the variable reservoir vent.
metering valve
On the right under the ECU, in line with the oil reservoir.
nozzle
At the rear sprocket, outer side, hose routed under the swingarm and sideways at the end. Partly run inside the heat protection sleeve for appearance.
switched 12 V supply
Connected to the model-specific 12 V connector (https://shop.berotec.de/12v-connector-bmw-type-2).
rain switch
In a 3D-printed tube in the instrument panel.
control unit
Under the seat.
Installation report by Francesco Tabuga
BMW F 650 GS – year of manufacture 2007
oil reservoir 120 ml

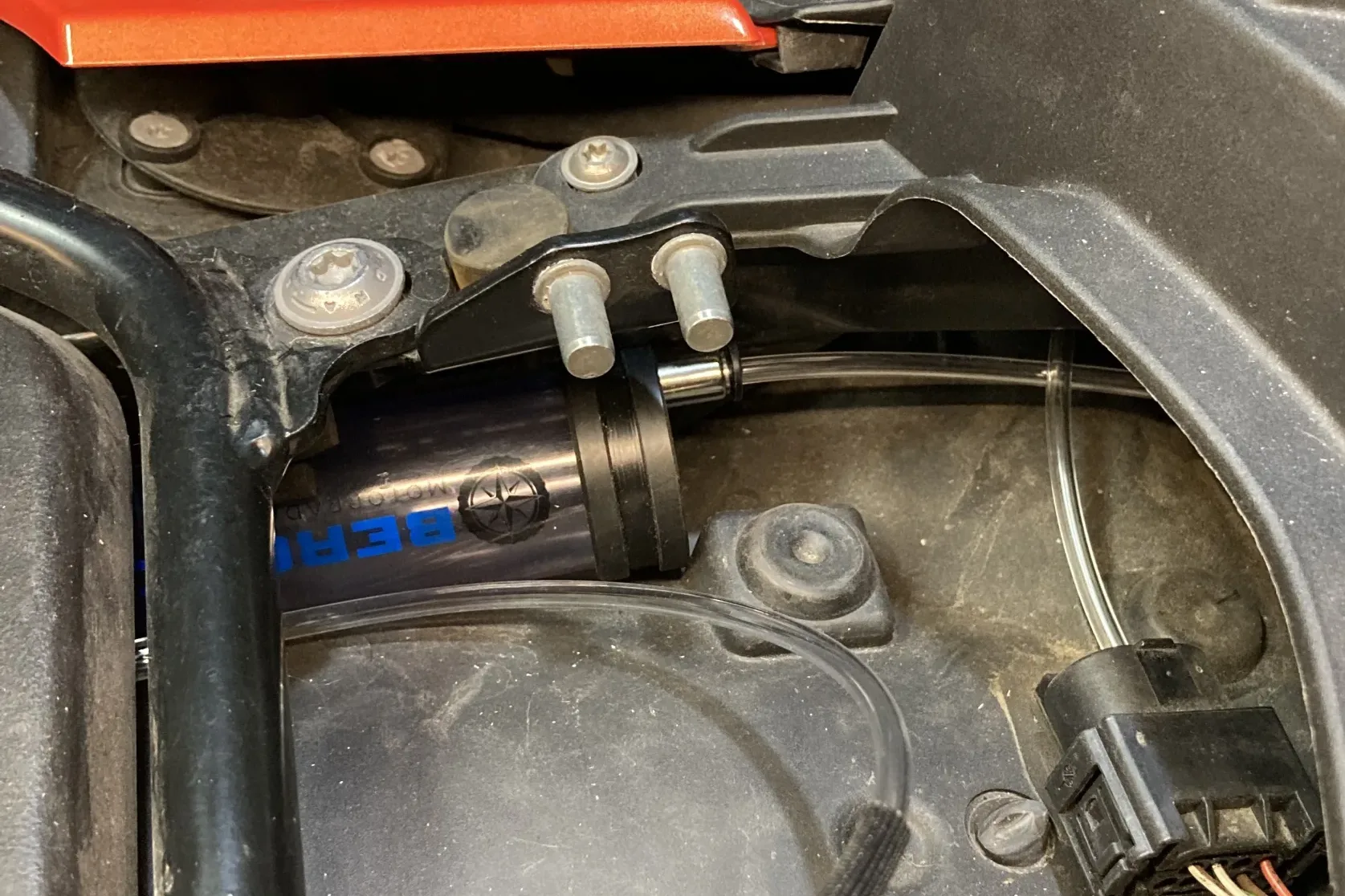

positioned under the cross brace above the oil reservoir, behind the fuel pump, in the compartment for the original onboard toolkit. Excess cable can also be coiled up and stowed there.
metering valve
Attached to the mount of the rear brake fluid reservoir using the supplied bracket.
nozzle
Positioned at 7 o’clock on the underside of the swingarm with a self-adhesive bracket.
switched 12 V supply
In the taillight, at the brake light / taillight contact (same wire colour as the switching wire of the MOFESSOR, on a 6.3 mm tab). However, you have to create a little more distance from the rear wall with three 4 mm spacers. Otherwise there is not enough height for the MOFESSOR connector to fit. Unfortunately, because of the lighting conditions, only outlines can be seen in the photo. Note on the 12 V basic supply: this can be taken at the jump-start point, with the ground screw just to the left of it (just below the dummy tank).
rain switch
On the left of the handlebar, where a phone or GPS mount – or both – can also be fitted. The clamp used is a makeshift solution for want of the right size (the odds-and-ends box had nothing better).
control unit
Attached to the inner fender in front of the seat lock, on the right frame tube. With a thick rubber pad for vibration damping (to protect the electronics).
Installation report by Jockel
BMW F 650 GS – year of manufacture 2004
oil reservoir 120 ml
The oil reservoir is fixed below the fuel tank (right side) to the frame (tab for the luggage system) using a home-made auxiliary construction (sheet steel) attached to the tab located there. Towards the tab, the reservoir is padded with the supplied foam rubber.
metering valve
The metering valve is attached to the inside of the bracket arm of the right pillion footpeg. Here, too, a pad of self-adhesive foam rubber.
nozzle
The nozzle is fastened with the supplied clamp at the lower fixing point of the chain guard and stabilised further along with one of the adhesive pads.
switched 12 V supply
The switched positive is tapped directly next to the control unit on the brake light wire (black-white wire).
rain switch
The rain switch is attached to the handlebar (on the left at the GPS mount). The supplied mounting plate is too short for fitting it to the hand guard.
control unit
The control unit is under the seat, attached beneath the left frame tube. The adjustment wheel faces forwards, so it can be readjusted without removing anything. The cables can be stowed in the tray for the onboard toolkit (the tools still fit in as well).
